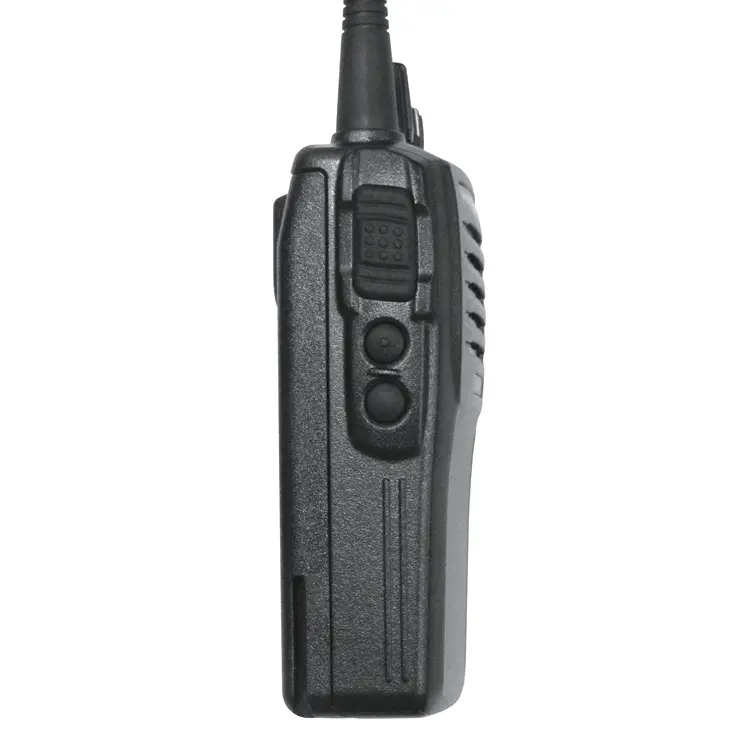

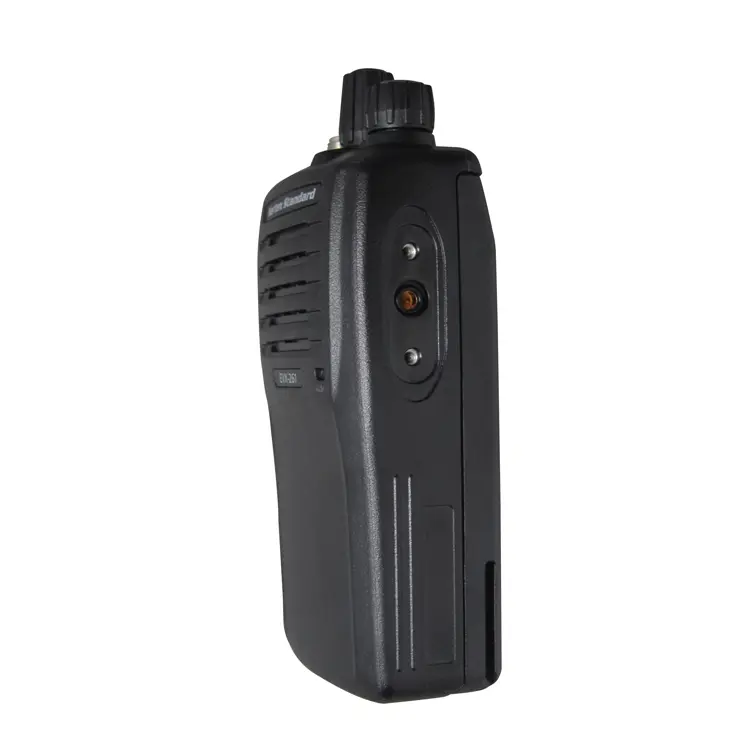

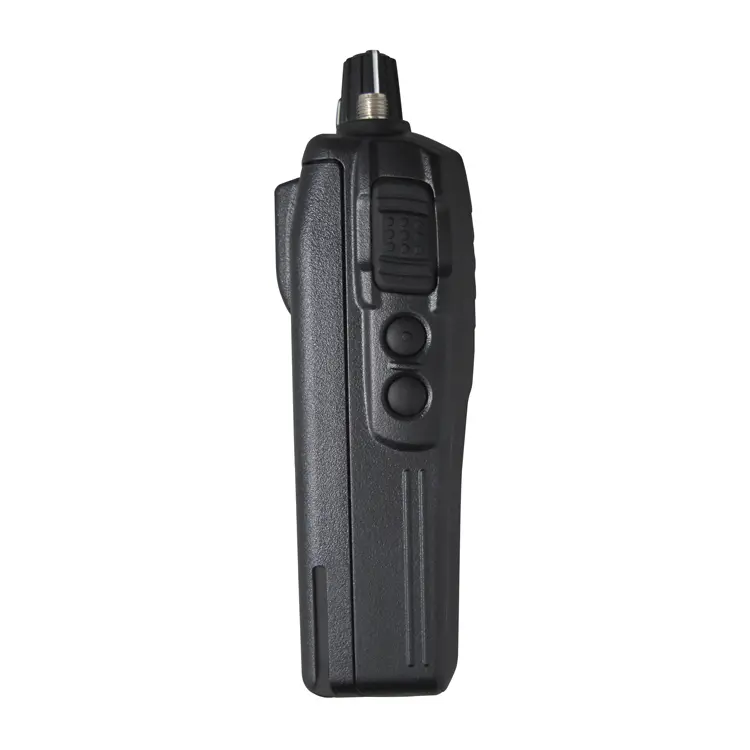

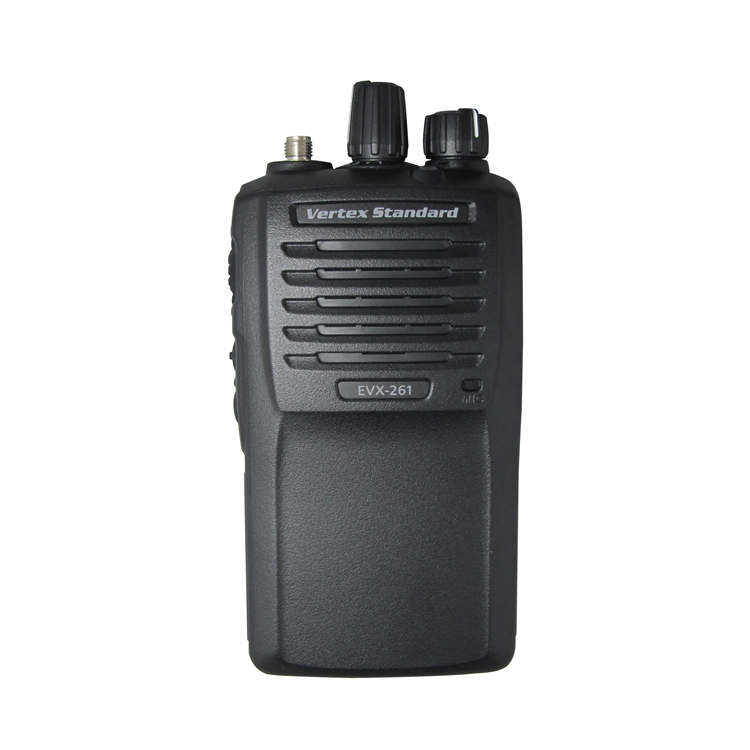

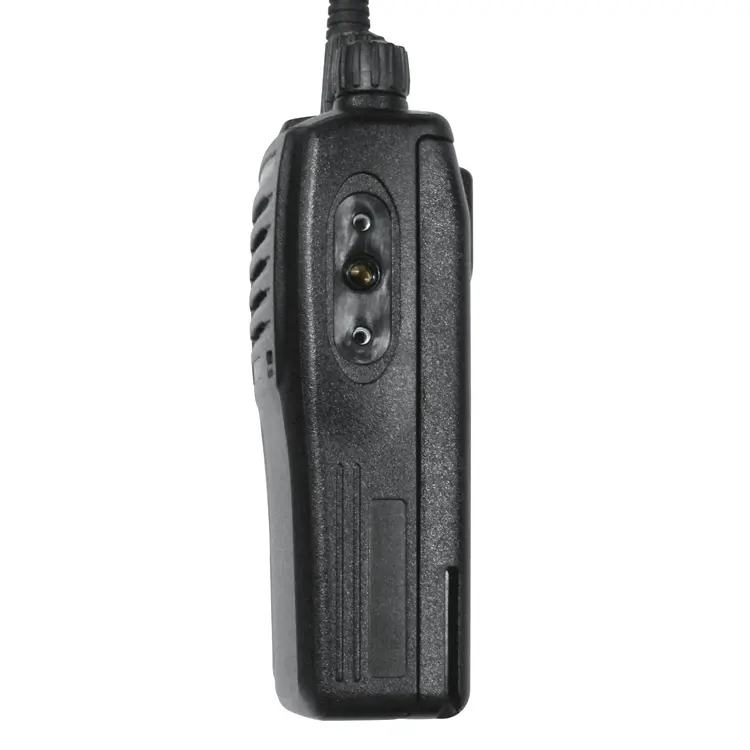

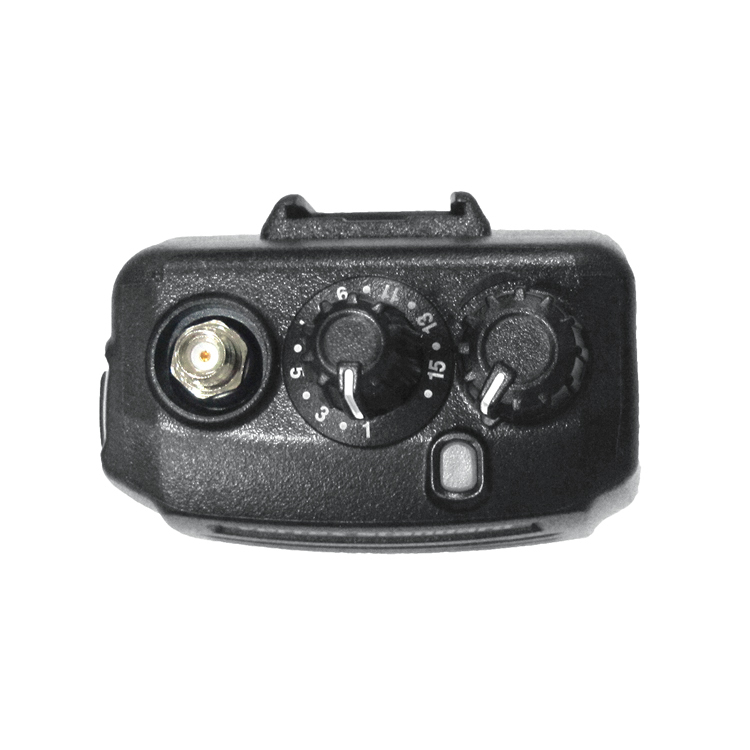

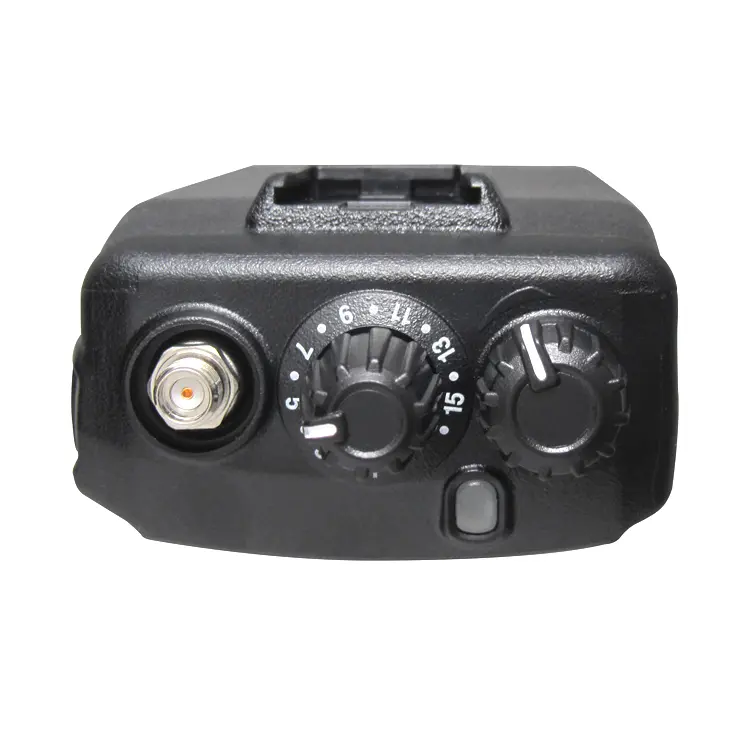

Vertex EVX-261 DMR Digital Walkie Talkie

Migrating to digital devices can be both easy and affordable. The EVX-261 is the perfect choice for business grade DMR digital walkie talkies, supporting you to enhance communication capabilities with the powerful digital performance of the EVX-261 walkie talkie. The EVX-261 walkie talkie has a compact appearance and is well crafted, providing you with the higher functionality and flexibility required for optimal communication.

Frequency Range: VHF 136 - 174 MHz, UHF 403 - 470 MHz
Channel Capacity: 16 channels
Output Power: VHF 5W, UHF 4W or 1W
Channel Spacing: 25 kHz / 12.5 kHz
Operating Voltage: 7.4V DC ± 10%
Battery Life: With FNB - V133LI - UNI battery, about 9.7 hours in digital mode and 7.4 hours in analog mode (5 - 5 - 90 duty cycle, power - saving on); with FNB - V134LI - UNI battery, about 15.8 hours in digital mode and 12 hours in analog mode (5 - 5 - 90 duty cycle, power - saving on)
Dimensions: 109.2 x 58.4 x 32.3 mm (L x W x H)
Weight: Approximately 281 g (with FNB - V133LI - UNI, antenna and belt clip)
Audio Output Power: 700 mW @ 16 Ohms (internal), 500 mW @ 40 Ohms (external)
IP Rating: IP55

product details

Product Detail Diagram

General Specifications
Frequency Range	VHF: 136-174mhz UHF: 403-470mhz
Channel Capacity	16
Frequency Spacing	12.5/20/25 KHz
Power supply	7.4V
battery capacity	2000mAh Li-ion battery
Frequency Stability	±0.5ppm
Operating Temperature Range	-30 °C to + 60°C
Dimension (L×W×H)	109 x 58 x 32 mm
Weight	330 g
Transmitter and receiver
Output power	UHF:1W / 5W VHF: 1W / 4W
FM Hum and Noise	40dB @ 12.5KHz; 45dB @ 25KHz
Modulation Limited	±2.5KHz @ 12.5KHz; ±5.0KHz @ 25KHz
Audio Distortion	3%
Conducted / Radiated Emission	-36dBm<1GHz -30dBm >1GHz
Adjacent Channel Power	-60 dB @ 12.5 kHz -70 dB @ 25 kHz

Function Introduction

Exceptional audio output quality

about EVX-261

Excellent audio performance can bring clearer call quality, allowing you to achieve clear and loud communication in all environments.

Wider interoperability

about EVX-261

The EVX-261 can provide rich signaling options such as MDC1200, FleetSync, DTMF, 2-Tone, and 5-Tone, as well as voice encryption functions, supporting seamless integration into various devic

Direct mode dual time slot

about EVX-261

The direct mode dual time slot allows you to achieve 2 simultaneous calls on the same frequency, doubling the call capacity of the channel without the need for a relay.

Strong insertion

about EVX-261

In situations where every second counts, the force insertion function allows the operator to stop or "interrupt" any current transmission in order to instantly transmit priority information. The strong insertion function ensures that your critical information is conveyed in a timely manner.
