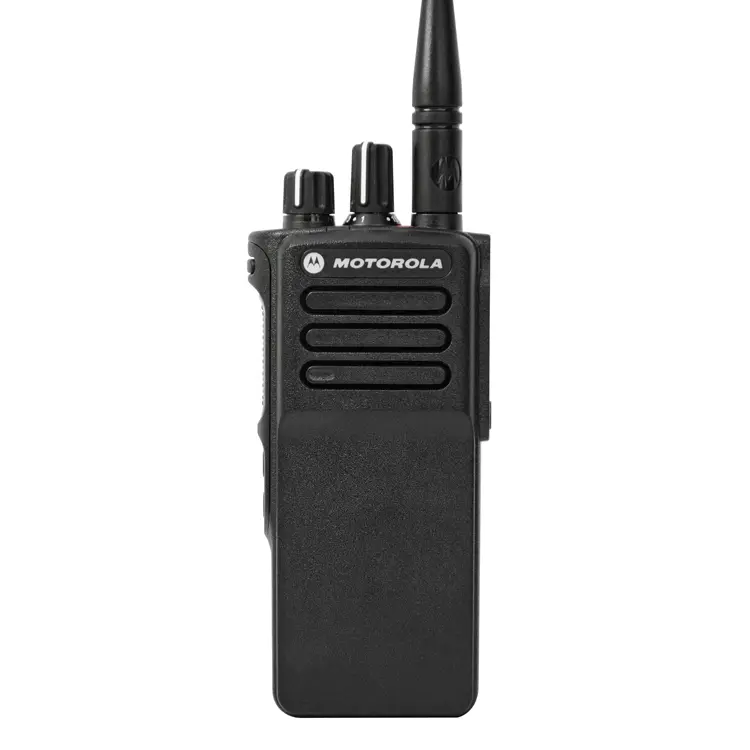

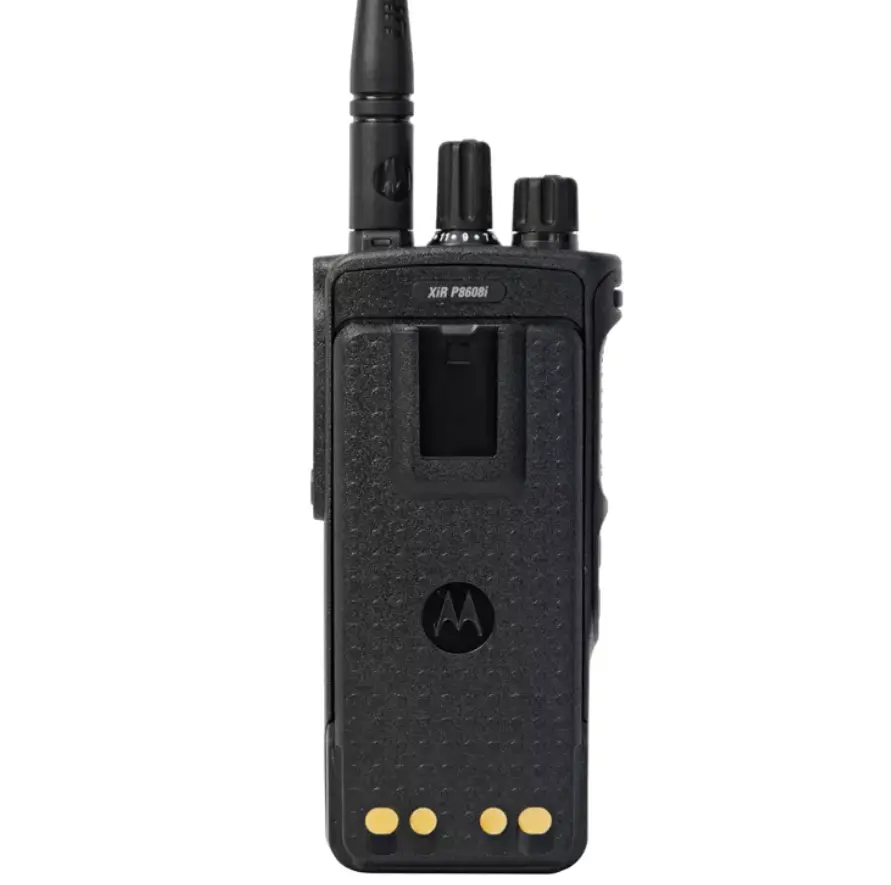

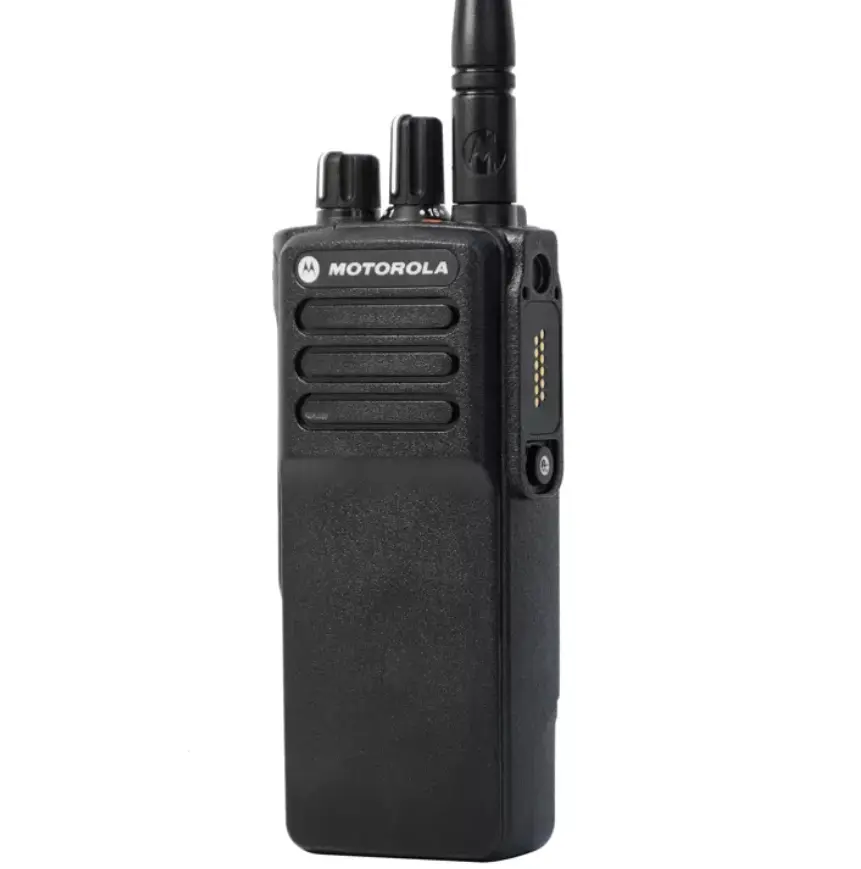

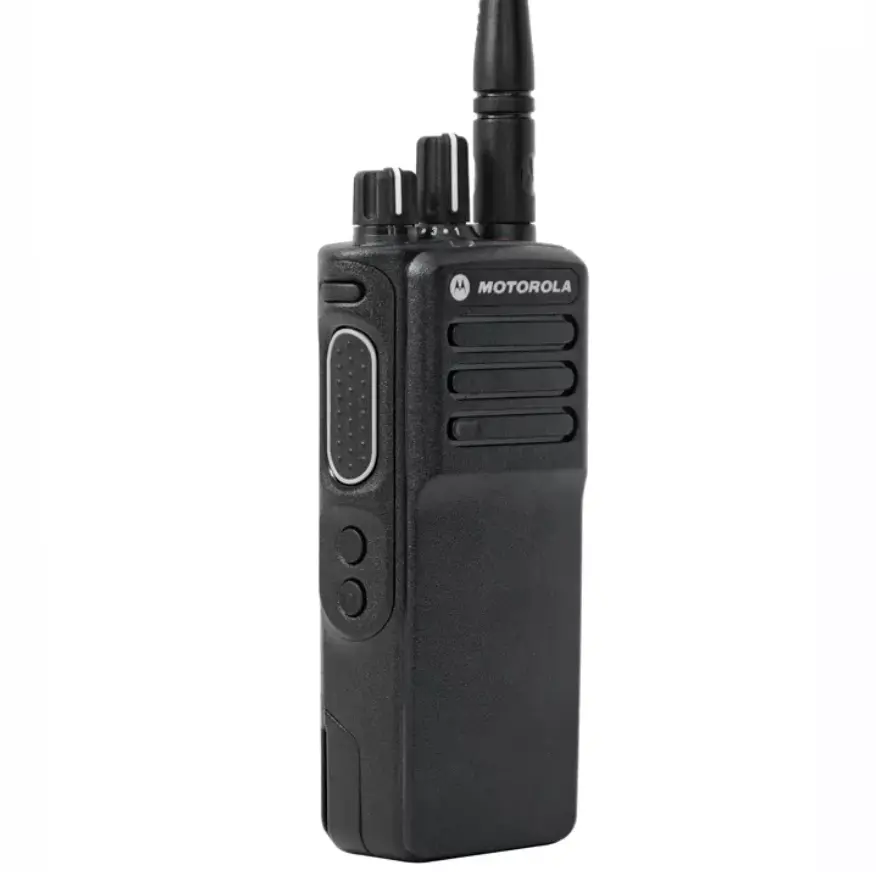

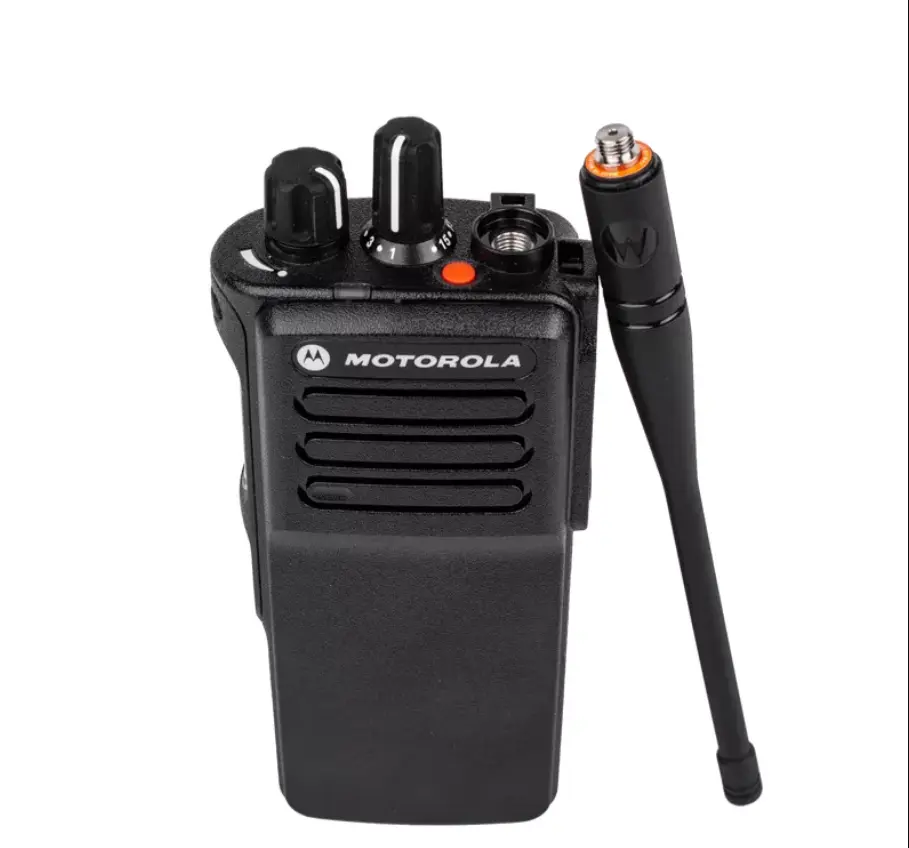

Original Digital Motorola GPS Two Way Radio XIR P8608i
product detail
1.Functions
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The XiR P8600i Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.Here's what's new in these next-generation radios:
Integrated Wi-Fi
Over-the-air software updates
Bluetooth® 4.0
Indoor location tracking
Integrated accelerometer for optional Man Down
Enhanced audio quality
Improved expandability,
Better battery life (up to 29 hours)
Better range (up to 8%)
Better waterproofing (IP68)
Honeywell and Motorola Connected Safety Solution (XiR P8668i and XiR P8628i)
2.Specifications
GENERAL SPECIFICATIONS | |
Channel Capacity |
32 |
Frequency |
136-174 MHz 403-527 MHz |
Dimensions (HxWxL) |
with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm |
IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm | |
Weight with battery: |
with NiMH Battery 1400Mah 425.5 g (15.01 oz) |
IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz) | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz) | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz) | |
Power Supply |
7.5 V (Nominal) |
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
IMPRES LiIon Std Battery |
Analogue: 8 hrs/Digital: 11.8 hrs |
IMPRES LiIon HiCap Battery |
Analogue: 11.5 hrs/Digital: 17 hrs |
IMPRES FM LiIon Battery |
Analogue: 12.3 hrs/Digital: 18.1 hrs |
NiMH Battery |
Analogue: 7 hrs/ Digital: 10.2 hrs |
RECEIVER | |
Frequency |
136-174 MHz;403-527 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 0.5 ppm |
Analogue Sensitivity |
0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
Digital Sensitivity |
5% BER: 0.3 uV |
Intermodulation |
70 dB |
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection |
70 dB |
Rated Audio |
500 mW |
Audio Distortion @ Rated Audio |
3% (typical) |
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response |
+1, -3 dB |
Conducted Spurious Emission |
-57 dBm |
TRANSMITTER | |
Frequency |
136-174 MHz;403-512 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 1.5 ppm (DP3600) |
Power Output | |
UHF |
1-5 W |
VHF |
1-4W |
Modulation Limiting |
+/- 2.5 kHz @ 12.5 kHz |
+/- 4 kHz @ 20 kHz | |
+/- 5.0 kHz @ 25 kHz | |
FM Hum and Noise |
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
Conducted / Radiated Emission |
-36 dBm < 1 GHz;-30 dBm > 1 GHz |
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
Audio Response |
+1, -3 dB |
Audio Distortion |
3% |
Digital Vocoder Type |
AMBE+2 |
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature |
-30° C / +60° C |
Storage Temperature |
-40° C / +85° C |
Temperature Shock |
Per MIL-STD |
Humidity |
Per MIL-STD |
Water and Dust Intrusion |
IP57, MIL-STD |
GPS |
|
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength) | |
TTFF (Time To First Fix) Cold Start |
< 2 minutes |
TTFF (Time To First Fix) Hot Start |
< 10 seconds |
Horizontal Accuracy |
< 10 meters |
Bluetooth |
|
Version |
Supports Bluetooth? 2.1 + EDR Specification |
Profiles Supported |
Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. |
Devices Supported |
Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
Range |
Class 2, 10 metres |
