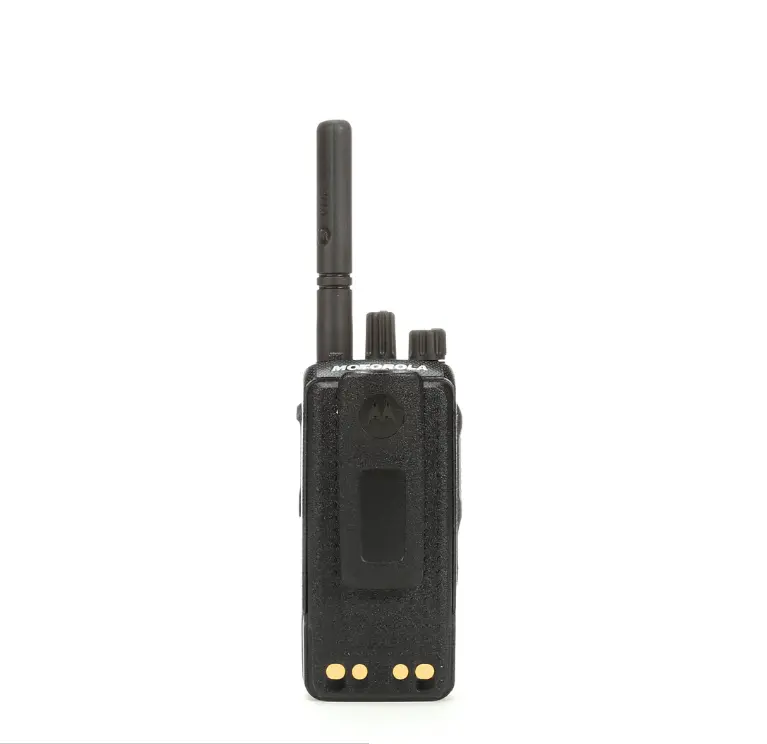

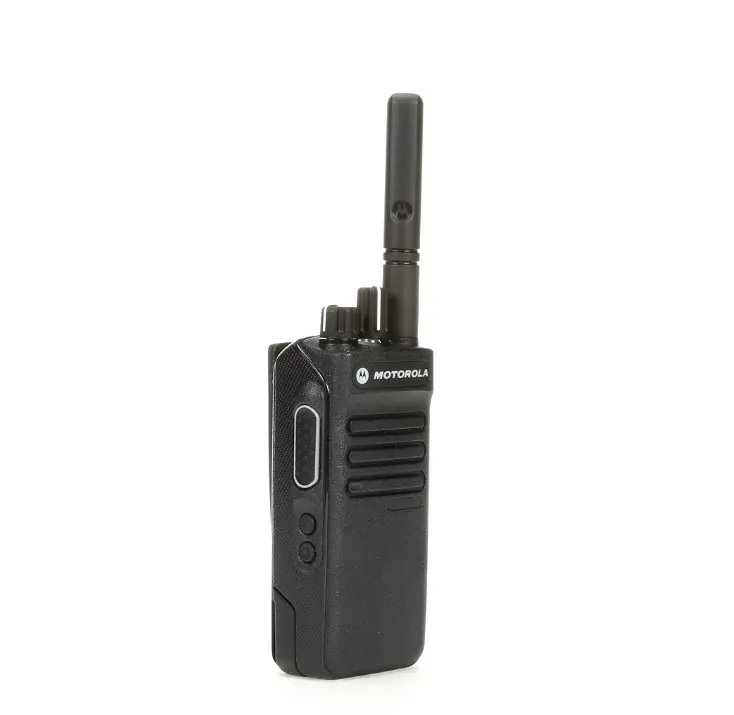

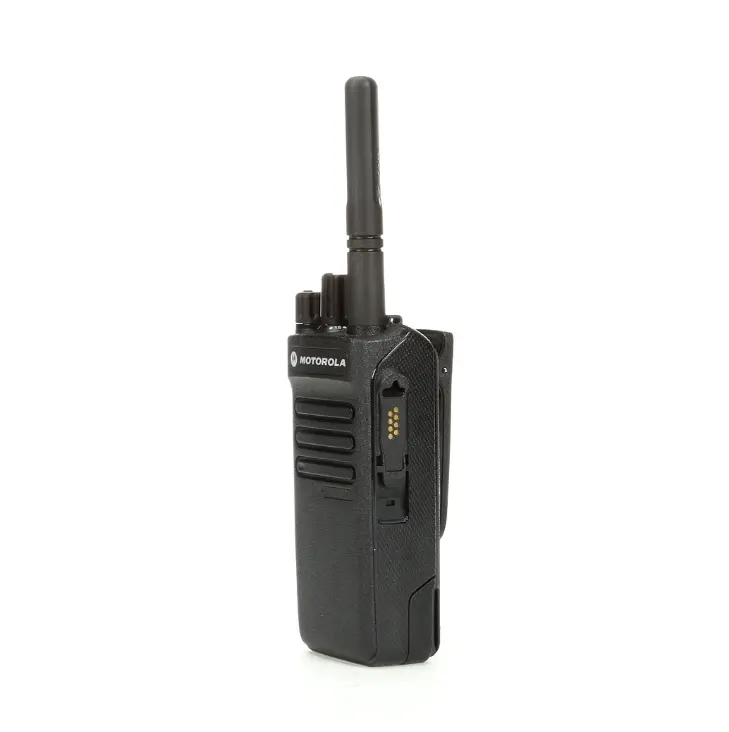

Mototrbo Digital Handheld Two Way Radios DEP550E UHF
product detail
1. Features
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The DEP550E Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.
CONNECTED
The MOTOTRBO DEP550E Series is a family of DMR-standard digital radios that delivers operations-critical voice communications. With support for basic trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.
SAFE
The DEP550E Series is designed to improve safety in your organisation, with the rapid response capability of instant push-to-talk communications. Even if a worker is unresponsive, you can remotely activate the radio to check that your worker is safe. Radios can be remotely disabled if they are misplaced. New HazLoc models are available for use in areas where flammable or explosive materials are present.
EFFICIENT
With new noise cancellation technology and enhanced clarity, the DEP550E Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology provides the battery option which delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximise battery lifetime. An improved receiver boosts range, allowing you to reach further than ever.
WHAT’S NEW IN THESE NEXT GENERATION RADIOS
• Over-the-air software updates
• Enhanced audioquality
• Improved expandability
• Better battery life (up to28 hours)
• Better range
• Betterwaterproofing(IP67)
• HazLoc models available
2. Specifications
Main Specifications | |
Channel Capacity |
16 |
Power Output |
VHF:1-5W / 350-400MHz:1-4 / UHF:1-4W |
Frequency Range |
VHF:136-174 350-400MHz UHF:403-527MHz |
|

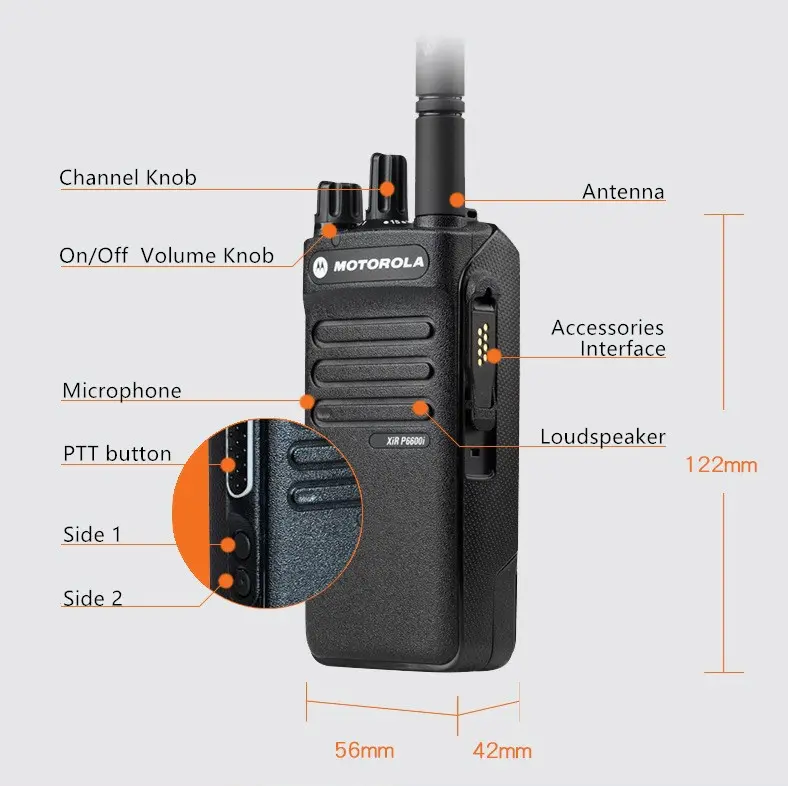

Dimensions (HxWxL) (with 1650 battery) (with 2050mAh battery) (with 3000mAh battery) |
122x56x36 mm 122x56x36 mm 122x56x42 mm |
|
Weight (with 3000mAh Li-ion battery) |
292g |
Power Supply |
7.5V |
Battery | |
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
1650 mAh battery |
Digital/Analog: VHF(16/11.5 hrs) 350-400/UHF:(15/11.5) |
2050mAh battery |
350-400/UHF:(18.5/14) |
3000mAh battery |
350-400/UHF:(27.5/21) |
Receiver & Transmitter | |
Frequency |
VHF:136-174MHz <span style="font-size:9.0pt;font-family:" &color:black;background:white;"="">350-400MHz UHF:403-527MHz |
Channel Spacing |
12.5kHz / 25kHz |
Frequency Stability (-30℃,+60℃,+25℃ Ref) |
+/-0.5 ppm |
FM Hum and Noise |
-40dB @ 12.5kHz / -45dB @ 25kHz |
Conducted/Radiated Emission |
-36dBm<1GHz / -30dB>1GHz |
Adjacent Channel Power |
60dB @ 12.5kHz / 70dB @ 25kHz |
Audio Response |
TIA603D |
Audio Distortion |
3% |
Digital Vocodor Type |
AMBE+2 |
Digital Protocol |
ETSI TS 102 361-1,-2,-3 |
Environmental Specificaitons | |
Operating Temperature |
-30℃ / +60℃ |
Storage Temperature |
-40℃ /+85℃ |
Water and Dust Intrusion |
IEC60529-IP67 |
3. Shipping
4. Payment
EEC. accept online paymentmethod--Paypal, which takes data encryption technology to make Paypal pay safeenough, so customers no need to worry about the private infomation betraied.And Paypal is convenient for customers and sellers to trade. Seller could sendInvoice first to customer for making payment. To avoid customers do not knowhow to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which isconvenient, reasonable, simple and Global.
