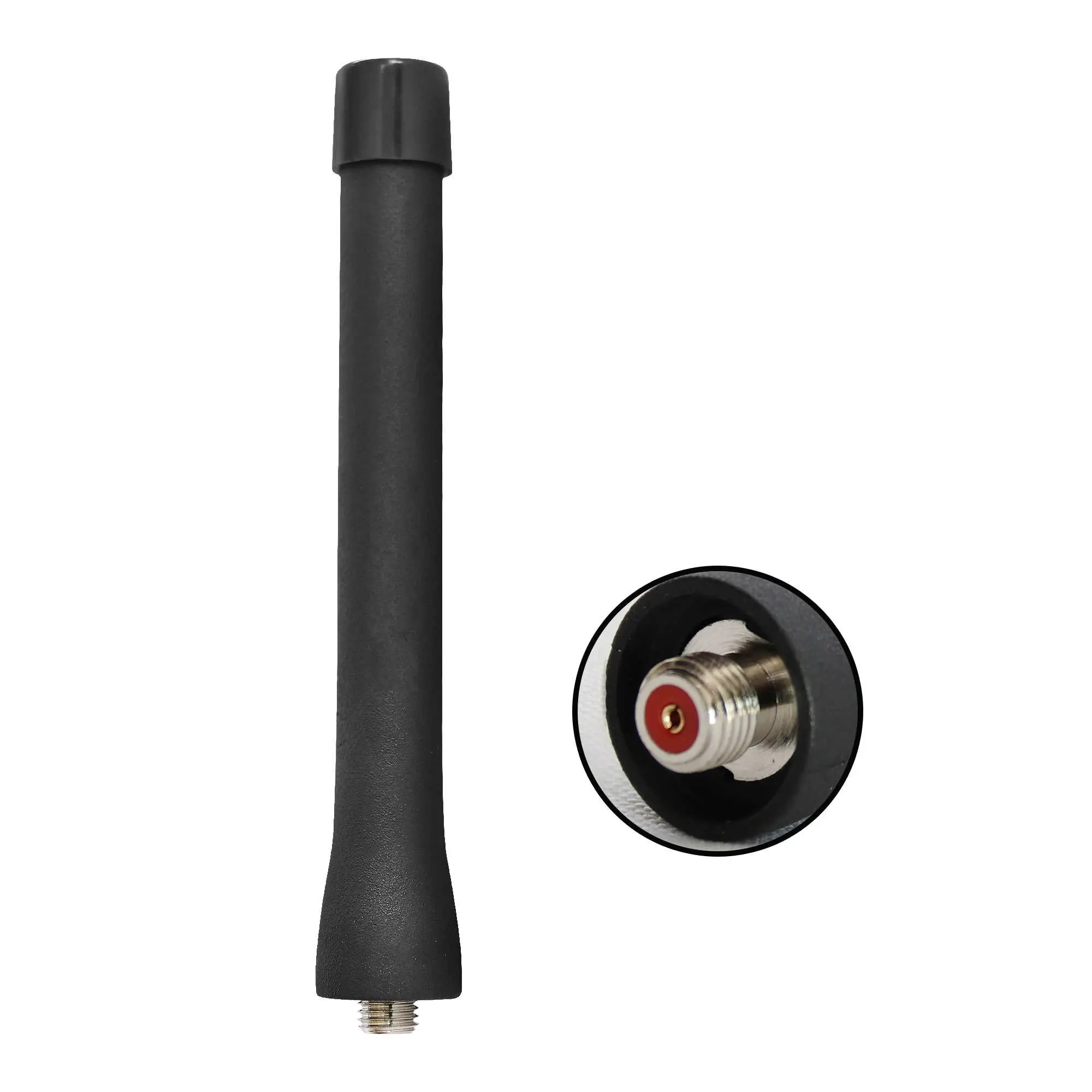

Motorola XTS2500 antenna

  1. Frequency Band: VHF (136-174 MHz), UHF (403-512 MHz), or 700/800 MHz (varies by model)
  2. Type: Whip antenna (standard, high-gain, or stubby options)
  3. Length: 6.5 inches (16.5 cm) standard; 10 inches (25.4 cm) high-gain; 2.5 inches (6.4 cm) stubby
  4. Power Handling: Up to 5W
  5. Impedance: 50 ohms
  6. VSWR: ≤1.5:1 (typical)
  7. Gain: ~2 dBi (standard), ~5 dBi (high-gain), ~1.5 dBi (stubby)
  8. Connector Type: BNC male
  9. Material: Stainless steel core with weatherproof, impact-resistant coating
  10. Compatibility: Designed for Motorola XTS2500 portable radios (Phase 1/Phase 2)

    Function Introduction

    BTEXS806SF-1
    01

    4G Network Instant Calling

    With ETMY ET-C6 Walkie-talkie, the possibilities of communication are endless. It offers instant calling functionality, which means you can communicate with your team members or peers on the go with high-quality audio. You can easily switch between channels to access clear, uninterrupted voice communication.
    R
    01

    IP54 Waterproof

    ETMY ET-C6 Walkie-talkie is IP54-rated, which means it is water-resistant, making it reliable in harsh or wet environments. You don't have to worry about your device getting damaged by water, ensuring that you can continue your communication activities safely in any weather condition.
    VBLL-NAE6546-UHF-400-520MHz-3-7inch-Antenna-for-Motorola-XTS2500-XTS3000-XTS3500-XTS5000-HT1000-Radio
    01

    Optional GPS Positioning Function

    ETMY ET-C6 Walkie-talkie also has an optional GPS positioning function that enables you to track the location of your device. You can use this feature to know the whereabouts of your team members or pinpoint your location on the map and communicate it to your peers. This functionality is particularly valuable in emergency situations, where quick response is essential.

    Product Parameters

    Dimension

    6.5 inches (16.5 cm) standard; 10 inches (25.4 cm) high-gain; 2.5 inches (6.4 cm) stubby

    Frequency Band

    VHF (136-174 MHz), UHF (403-512 MHz), or 700/800 MHz (varies by model)

    Type

    Whip antenna

    Power Handling

    Up to 5W

    Impedance

    50 ohms

    VSWR

    ≤1.5:1

    Gain

    ~2 dBi (standard), ~5 dBi (high-gain), ~1.5 dBi (stubby)

    Connector Type

    BNC male
