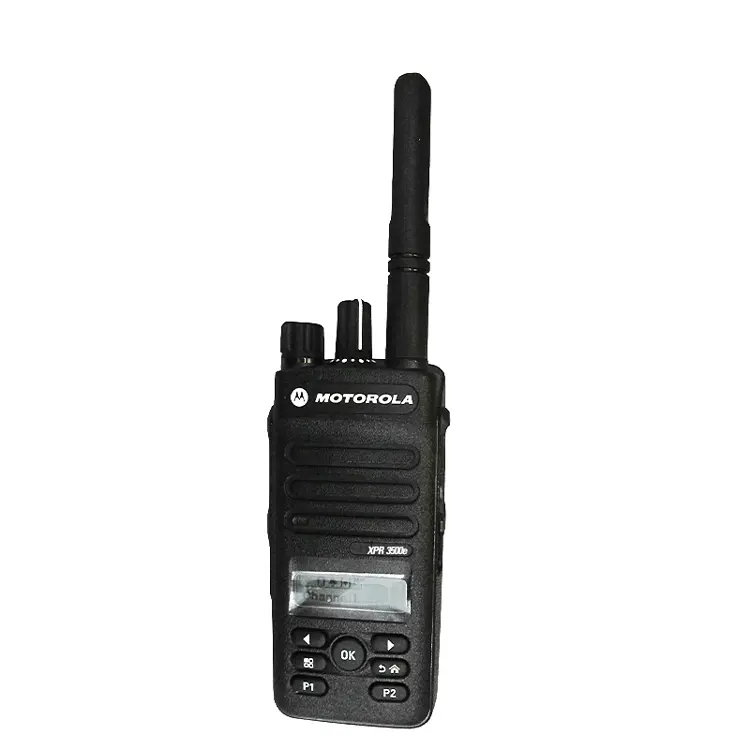

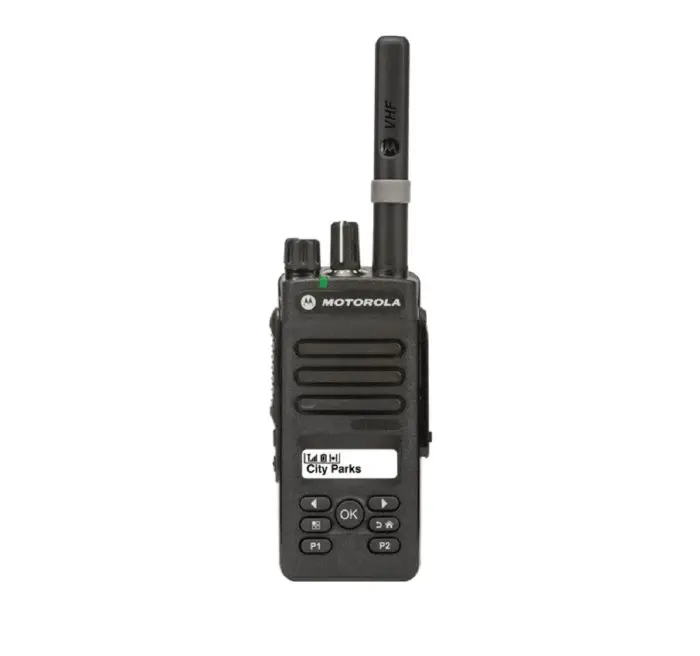

Motorola Xpr3500e

Frequency Range：VHF (136 - 174 MHz), UHF (403 - 527 MHz)
Transmit Power：High - 5W (VHF), 4W (UHF); Low - 1W (VHF), 1W (UHF)
Channel Capacity：128 channels
Channel Spacing：12.5 kHz, 25 kHz
Battery Capacity：Standard - 2100 mAh (lithium - ion), High - capacity - 3000 mAh (lithium - ion)
Battery Life：With standard 2100 mAh battery - 19.5 hours (digital mode), 14.0 hours (analog mode); With high - capacity 3000 mAh battery - 28.5 hours (digital mode), 21.0 hours (analog mode)
Dimensions (with standard battery)：4.8 x 2.2 x 1.4 in (122 x 56 x 36 mm)
Weight (with standard battery)：10 oz (281 g)
Water and Dust Resistance：IP67 rating
Power Supply (nominal)：7.5 V

product details

product description

Function Introduction

Broad Frequency & Power Versatility

Covering VHF (136–174 MHz) and UHF (403–527 MHz) bands, the Xpr3500e ensures flexible coverage. With high power (5W VHF/4W UHF) and low power (1W) options, this Motorola Radio Walkie Talkie adapts to diverse environments, from large venues to indoor spaces— a hallmark of reliable Motorola 2 Way Radios.

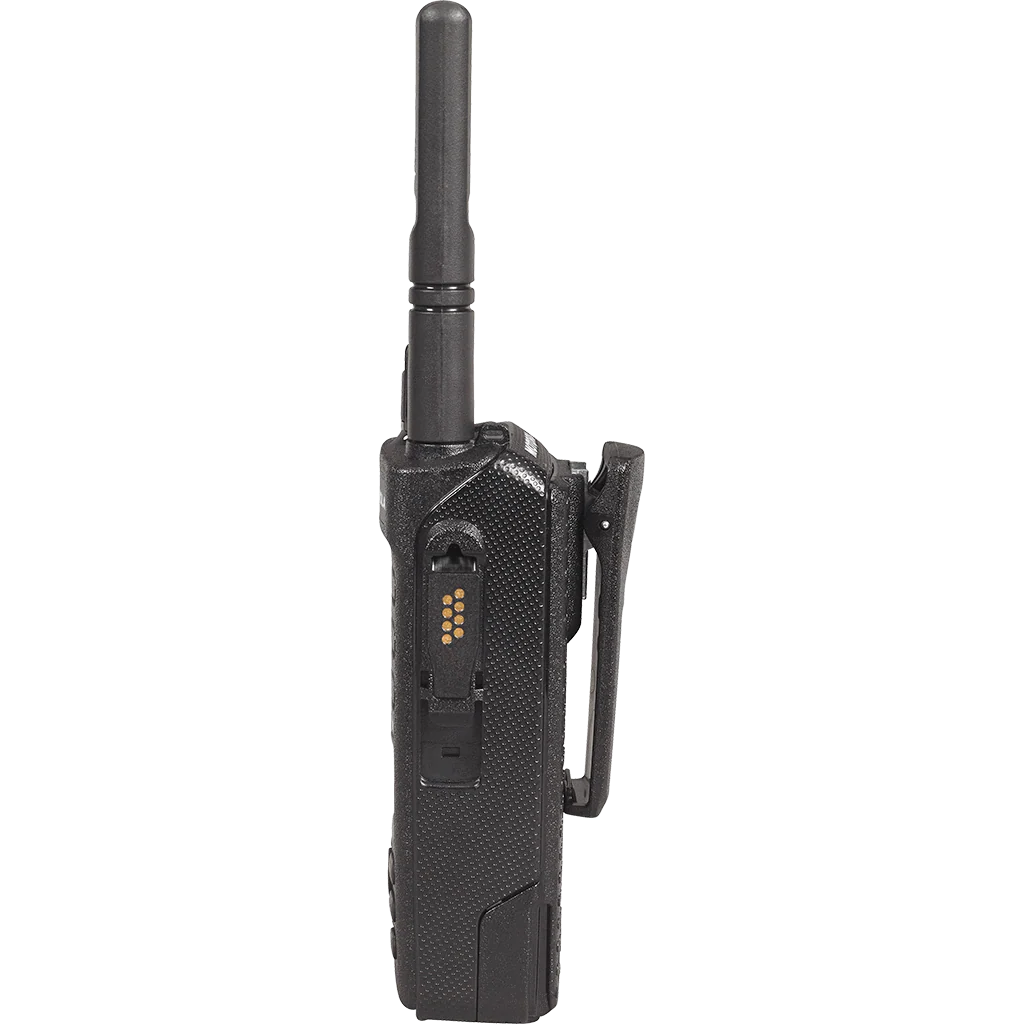

Motorola-XPR3500e-two-way-radio-right_e9bbdeb4-96d7-4ada-afbe-84165e8e15ab_1200x

Rugged Durability

Boasting an IP67 rating, the Xpr3500e is dust-tight and submersible in 1m of water for 30 minutes, thriving in challenging conditions. Its compact build (122 x 56 x 36 mm with standard battery) and 281g weight enhance portability, reflecting the robust design of premium Motorola Radio Walkie Talkie models.

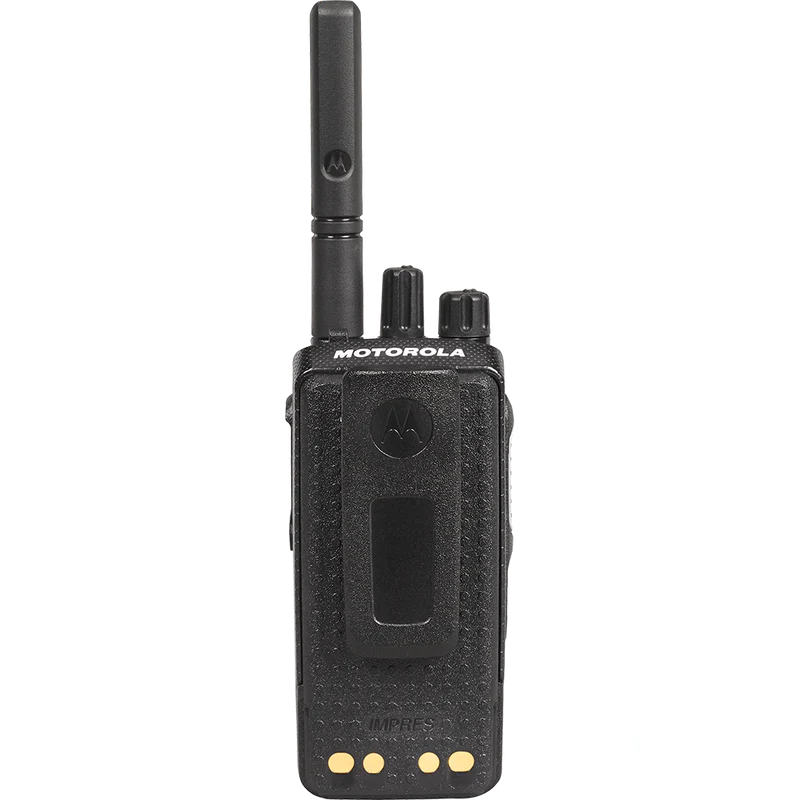

Motorola-XPR3500e-two-way-radio-back_106b9b8b-d35f-49d6-917c-eab54c07d4fd_800x

Extended Battery Performance

Equipped with a 2100 mAh standard lithium-ion battery (3000 mAh high-capacity option), it delivers up to 28.5 hours in digital mode (high-capacity), ensuring all-day use. This endurance aligns with the efficiency expected from Motorola 2 Way Radios, minimizing downtime for recharges.

Product Parameters

Dimension	122 x 56 x 36 mm
Weight	About 281g
Frequency Range	VHF (136 - 174 MHz), UHF (403 - 527 MHz)
Channel Capacity	12.5 kHz, 25 kHz
Channel Capacity	128 channels
