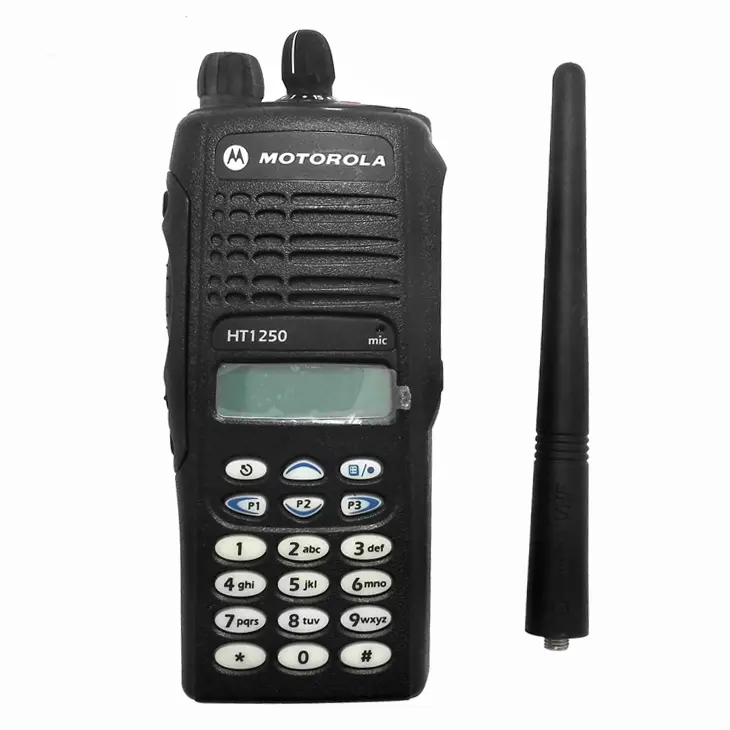

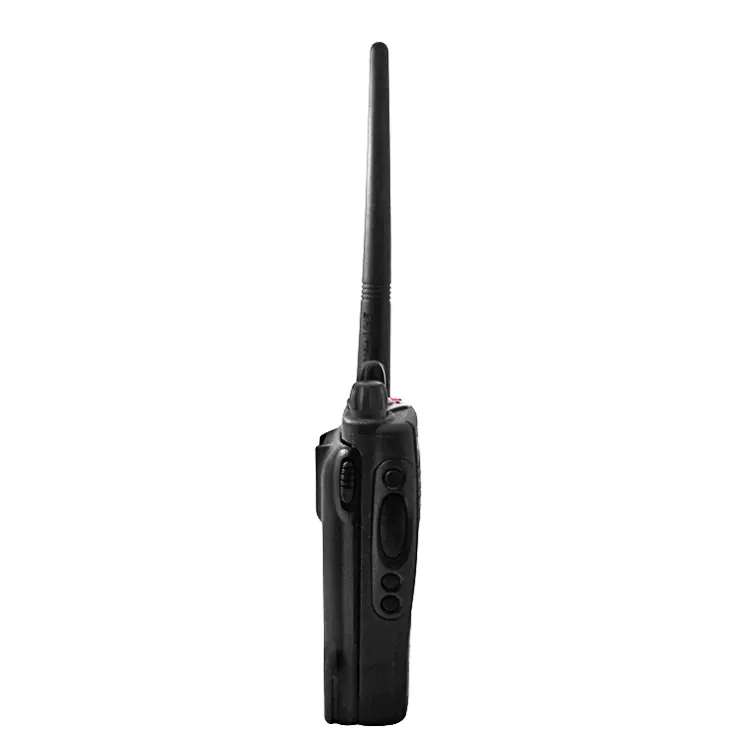

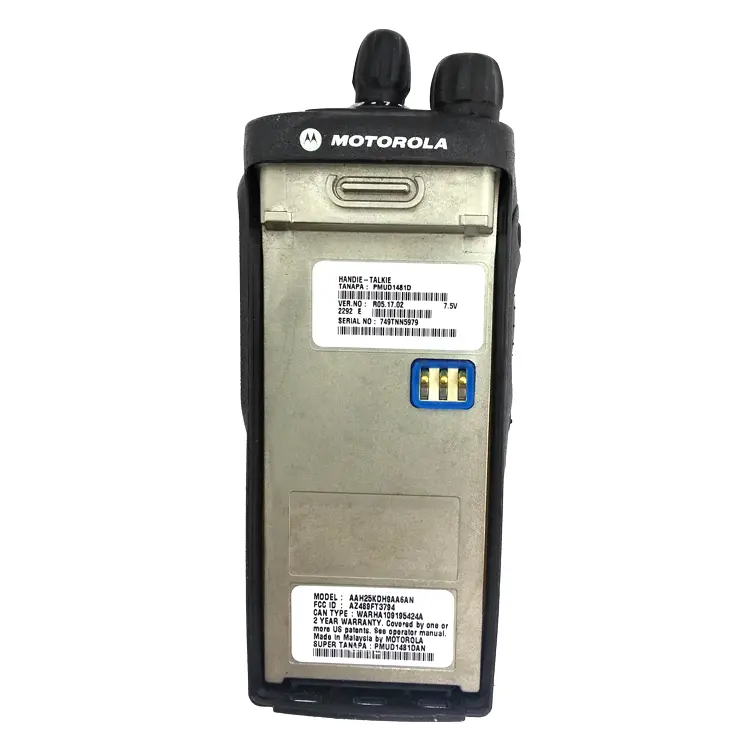

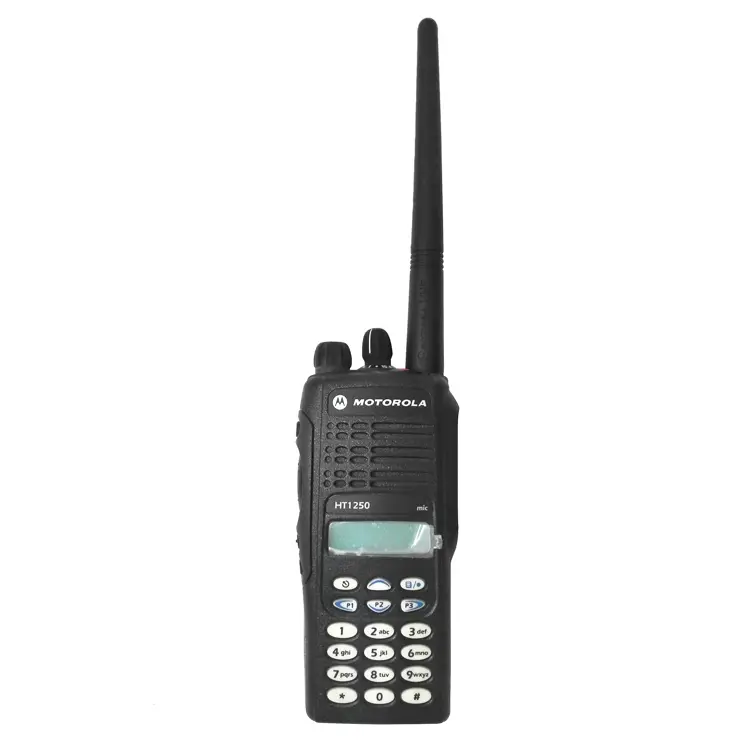

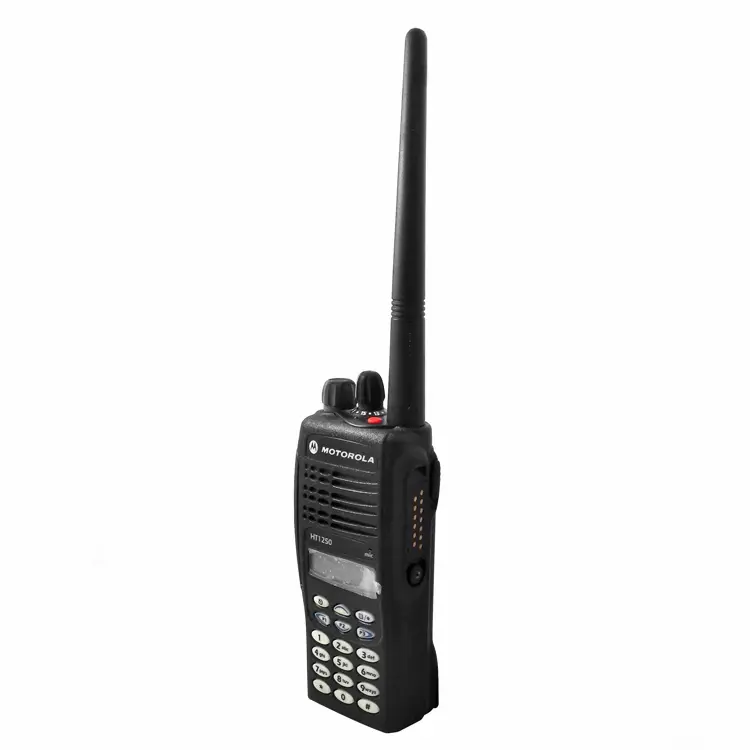

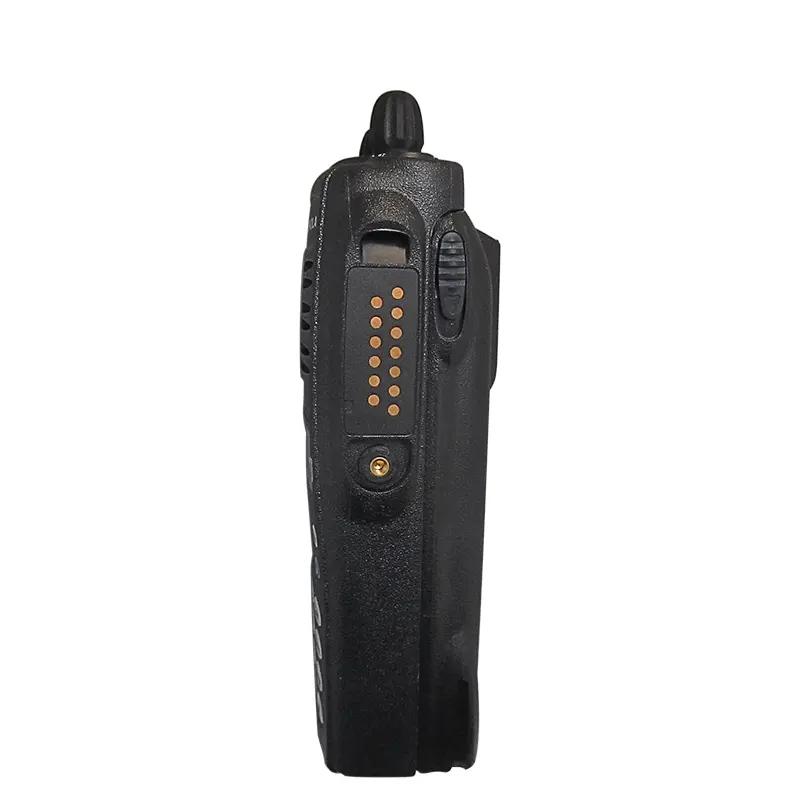

Motorola Two Way Radio HT1250 Full-Keypad

Frequency Range: VHF 136-174MHz; UHF 403-470MHzStorage Channel: 128Dimensions: 137 x 57.5 x 37.5 mmWeight: 420g

Frequency Range：VHF 136 - 174 MHz; UHF 403 - 470 MHz, 450 - 520 MHz
Channel Capacity：128 channels
Channel Spacing：12.5 / 20 / 25 kHz switchable
Power Output：VHF: 1 - 5 W; UHF: 1 - 4 W
Dimensions：137 x 57.5 x 37.5 mm
Weight：420 g
Operating Temperature：-30 °C to +60 °C
Operating Voltage：DC 7.5V
Analog Sensitivity：0.16 μV
Digital Sensitivity：0.14 μV

Product Detail

product detail

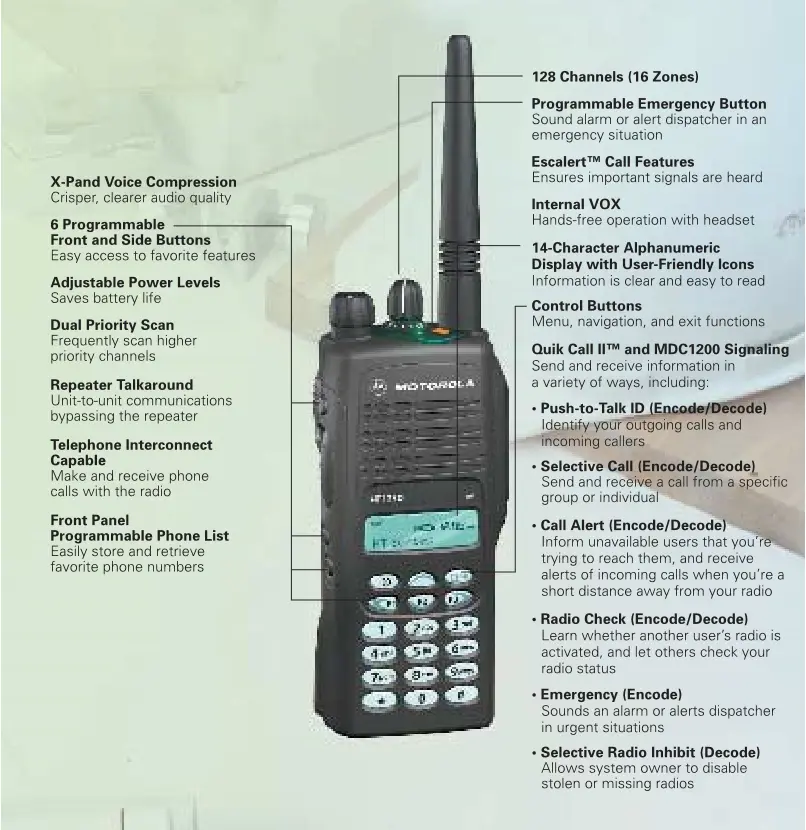

1. Features

HT1250 The Versatile Radio The HT1250™ portable radio is an essential tool for growing organizations because of its unique versatility. The radio offers a full menu of advanced signaling features, including paging or calling selective radios or groups. Users can store information such as phone numbers, call lists and radio IDs for easy access. And with Motorola's unique X-Pand™ technology, audio clarity is superb–even in noisy surroundings. The large LCD display is extremely helpful in large communication networks and critical situations. The radio of choice is the HT1250™ portable. It’s the radio that changes with your needs.

• Small, Light weight and Durable

• Available in Limited and Full Keypad Models

• 1 2. 5 /2 5 kHz Switchable Channel Spacing

• Clock with Alarm

• Battery Status Indicator

• Telephone Interconnect Capable

• Option Board Capabilities

2. Specifications

Genneral
Frequency Range	VHF: 136~174MHz UHF: 403~470MHz，450-520MHz
Memory Channel	128
Channel spacing	12.5/20/25KHz
Operating Temperature	-30℃~+60℃
Operating Voltage	DC 7.5V
Demission	137 x 57.5 x 37.5 mm
Weight	420g
Transmission Part
Output power	VHF: 1-5W UHF: 1-4W
Frequency stability	±0.5ppm
Hum and Noise	≤-40dB (12.5kHz) ≤-45dB (25kHz)
Adjacent Channel Power	60 dB (12.5 kHz) 70 dB (20 and 25 kHz)
4FSK Digital Modulation	12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W
Modulation Limiting	± 2.5 kHz @ 12.5 kHz ± 4.0 kHz @ 20 kHz ± 5.0 kHz @ 25 kHz
Reception Part
Analog Sensitivity	0.16 uV
Digital Sensitivity	0.14 uV
Intermodulation	70 dB
Adjacent Channel Selectivity	60 dB (12.5 kHz) 70 dB (20/25 kHz)
Spurious Rejection	70dB
Hum and Noise	-40 dB (12.5 kHz) -45 dB (25 kHz)

3. Shipping

4. Payment Terms

EEC. accept online paymentmethod--Paypal, which takes data encryption technology to make Paypal pay safeenough, so customers no need to worry about the private infomation betraied.And Paypal is convenient for customers and sellers to trade. Seller could sendInvoice first to customer for making payment. To avoid customers do not knowhow to make payment.

Offline payment alsobe accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which isconvenient, reasonable, simple and Global.
