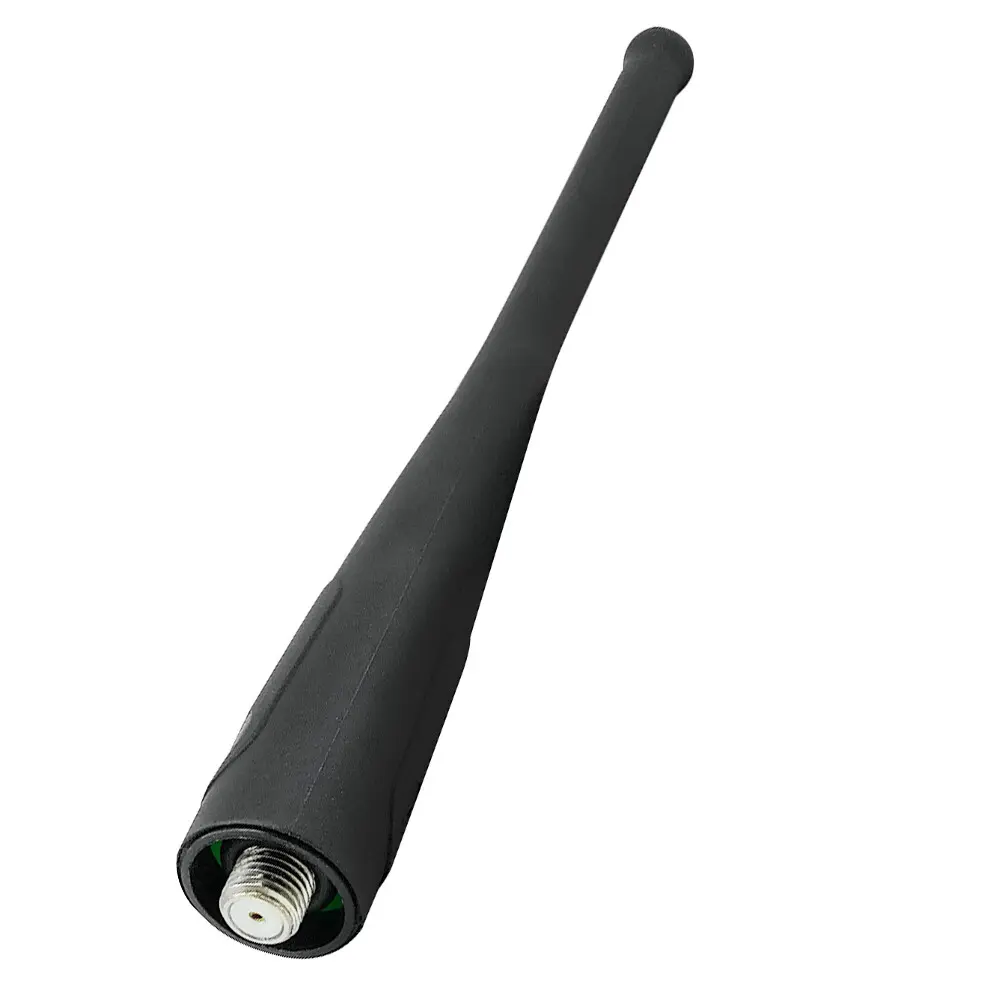

Motorola sport 10X antenna

Frequency Range: UHF (403-512 MHz)
Type: Portable rugged whip antenna
Length: Approximately 10 inches (25.4 cm)
Power Handling: Up to 5W
Impedance: 50 ohms
VSWR: ≤2.0:1 (typical)
Gain: ~2.5 dBi
Connector Type: SMA male
Material: Flexible rubber casing with reinforced internal core
Compatibility: Designed for Motorola Talkabout series consumer radios (e.g., T400, T600) and similar entry-level 2-way radios

product details

product description

Function Introduction

UHF 403–512 MHz Optimization

Tuned for this versatile band, maximizing signal clarity and range for 2 Way Radios in forests, urban parks, or event venues. This precision minimizes interference, surpassing generic Radio Walkie Talkie antennas in dynamic environments.

10X Performance Boost

With 2.5 dBi gain, the Sport 10X extends coverage for 2 Way Radios, critical for groups spread across large outdoor areas. This enhancement outshines stock antennas, eliminating dead zones in vital Radio Walkie Talkie communications during adventures or events.

Talkabout Series Compatibility

Designed for Motorola T400, T600, and similar 2 Way Radios, featuring a secure SMA fit that avoids signal loss common with ill-fitting alternatives. This synergy ensures the 10X integrates seamlessly, preserving the Radio Walkie Talkie’s usability in active scenarios.

Product Parameters

Dimension	10 inches (25.4 cm)
Frequency Range	UHF (403-512 MHz)
Type	Portable rugged whip antenna
Power Handling	Up to 5W
Impedance	50 ohms
VSWR	≤2.0:1 (typical)
Gain	~2.5 dBi
Connector Type	SMA male
