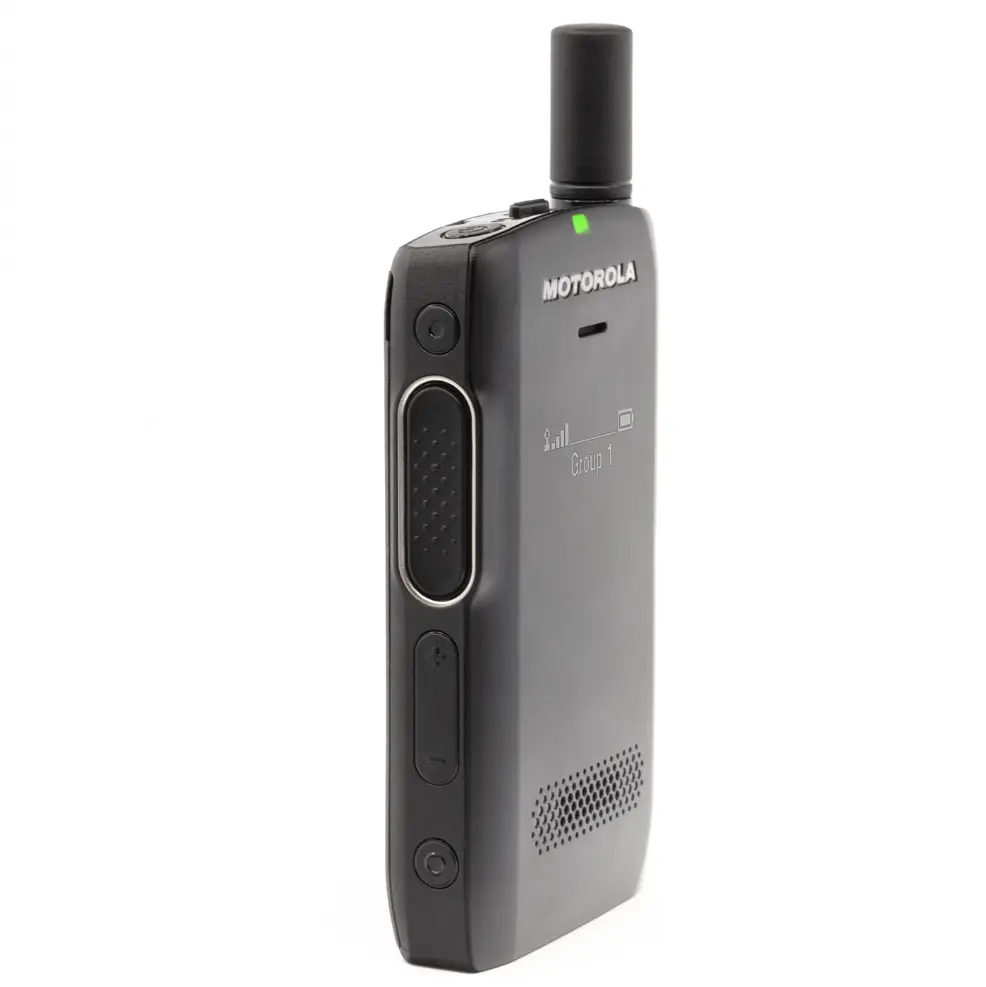

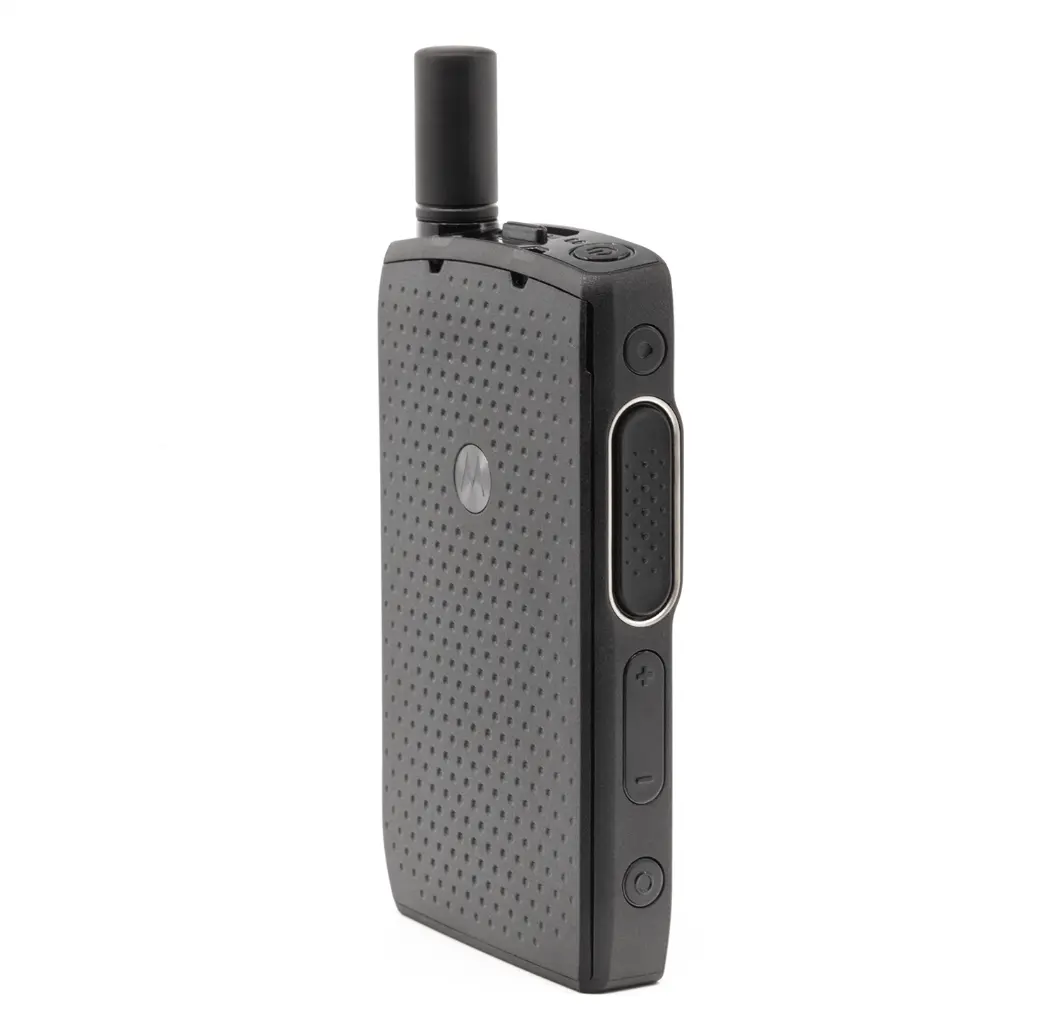

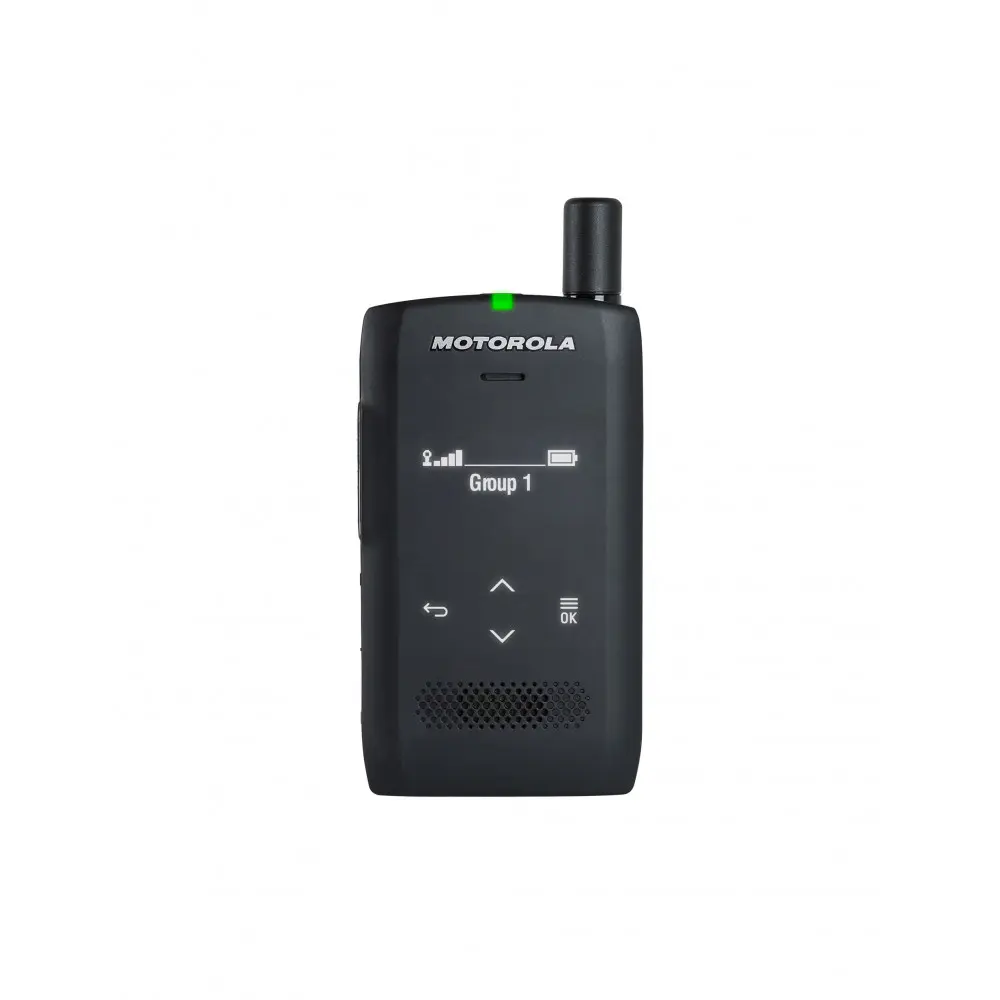

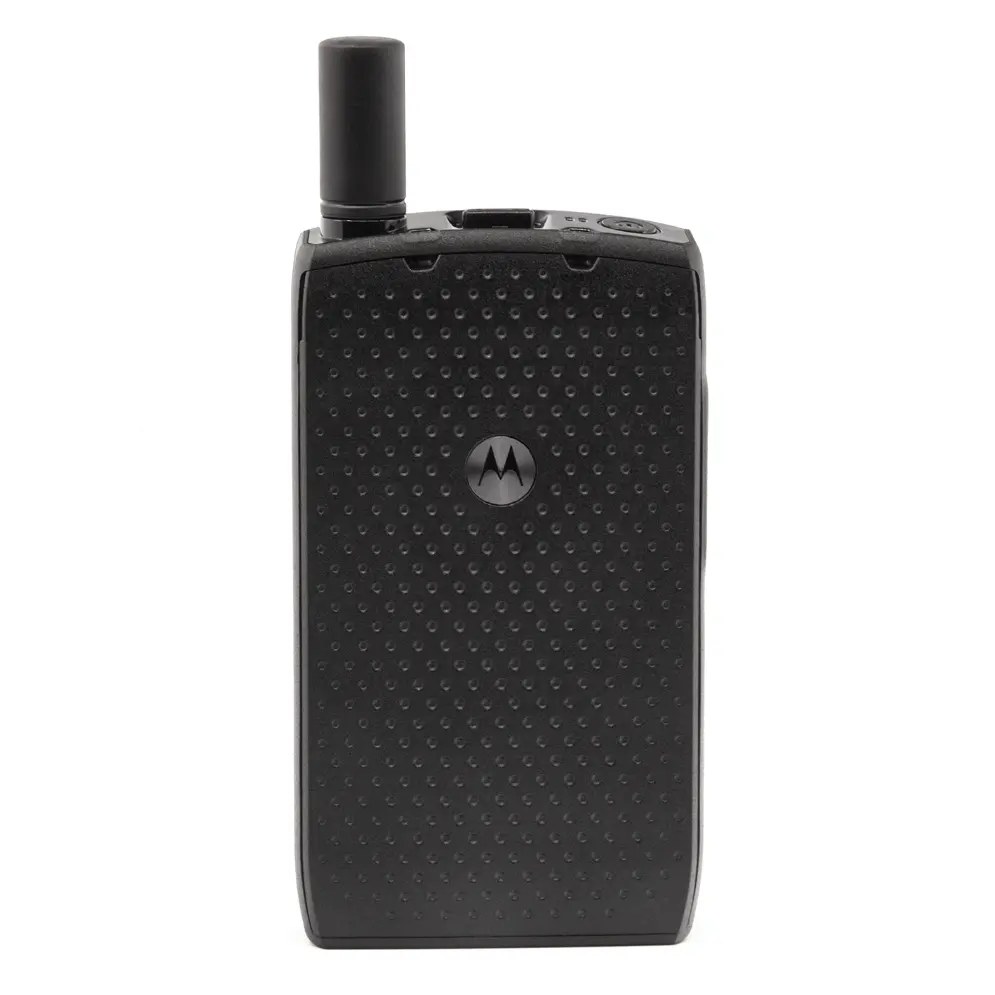

Motorola Small Tetra Two Way Radio ST7000
product detail
1. Features
The ST7000 provides customer-facing staff and senior officers with an effortless communications tool that allows them to increase productivity and keep their focus on what matters most - the customer or the situation and not the device.
The ST7000 small TETRA radio exceeds these needs with its compact and elegant form, simple user interface and clear audio. With a hybrid internal and external antenna system, the ST7000 is discreet and fits easily in a pocket. The touch sensitive buttons, integrated Bluetooth® 4.1 wireless technology, reversible USB-C connector for charging, and 3.5mm audio connector make the ST7000 a flexible, modern TETRA radio.
FEATURES
• Small and elegant design
• Simple and intuitive user interface
• Vibrate alert and haptic feedback for discreet use
• White OLED screen with touch UI for easy navigation
• Loud and clear audio
• 3.5 mm audio connector for maximum accessory compatibility
• Reversible USB-C connector for flexible charging and programming
• Enhanced coverage with 1.8W transmit power
• Durable with IP54 and MIL-STD 810 F/G rating
• Long-life battery with up to 20 hours of use
• Integrated Bluetooth 4.1 wireless technology
• GPS and GLONASS for location services
2. Specifications
GENERAL SPECIFICATIONS | |
Frequency | 380-430 MHz, 800 MHz |
Dimensions (HxWxL) | 107 x 60 x 19mm |
Weight with battery: | 173g |
Power Supply | 3.7 V (Nominal) |
Battery | Removable 2300 mAh IMPRES Li-Ion |
RECEIVER | |
Frequency | 380-430 MHz, 800 MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 0.5 ppm |
Analogue Sensitivity | 0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
Digital Sensitivity | 5% BER: 0.3 uV |
Intermodulation | 70 dB |
Adjacent Channel Selectivity | 60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection | 70 dB |
Rated Audio | 500 mW |
Audio Distortion @ Rated Audio | 3% (typical) |
Hum and Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Conducted Spurious Emission | -57 dBm |
TRANSMITTER | |
Frequency | 136-174 MHz;403-512 MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 1.5 ppm (DP3600) |
Power Output | |
UHF | 1-5 W |
VHF | 1-4W |
4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
FM Hum and Noise | -40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
Conducted / Radiated Emission | -36 dBm < 1 GHz;-30 dBm > 1 GHz |
Adjacent Channel Power | -60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Audio Distortion | 3% |
Digital Vocoder Type | AMBE+2 |
Digital Protocol | ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature | -30° C / +60° C |
Storage Temperature | -40° C / +85° C |
Temperature Shock | Per MIL-STD |
Humidity | Per MIL-STD |
Water and Dust Intrusion | IP67, MIL-STD |
Bluetooth
| |
Version | Bluetooth 2.1 +EDR, Bluetooth 4.1, Bluetooth Smart (BTLE) |
Profiles Supported | Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. (SPP), Motorola fast push-to-talk. |
Devices Supported | Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
Range | Class 2, 10 m |
LOCATION SERVICE | |
Constellations Supported | GPS and GLONASS |
Tracking Sensitivity | -163 dBm |
Protocols | ETSI LIP, LRRP |
