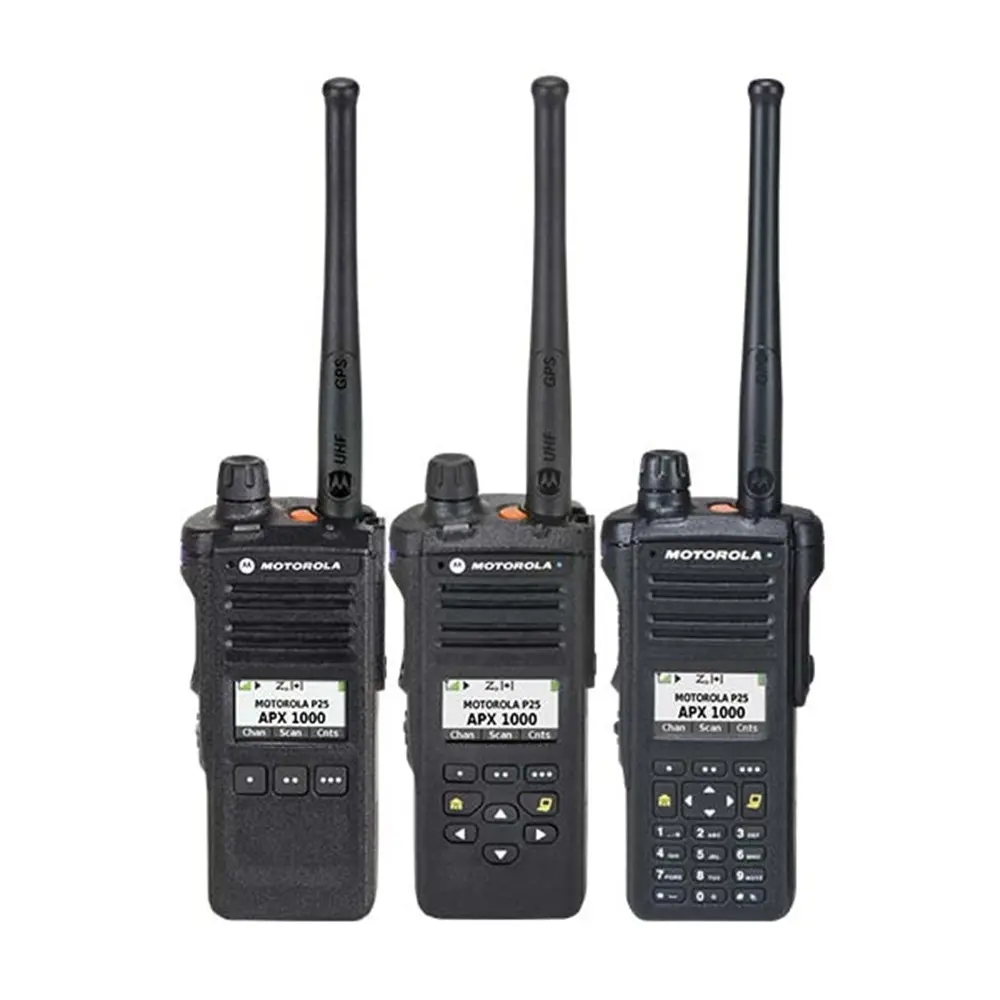

MOTOROLA SINGLE BAND P25 PORTABLE RADIO APX1000i
product detail
MOTOROLA SINGLE BAND P25 PORTABLE RADIO APX1000i
The APX 1000i is designed for government services and organizations who need essential communication at an affordable price. It delivers great core features, with an efficiency-focused design – including Bluetooth® wireless connectivity.
A great radio calls for great support, so we’re also introducing Device Management Services for your APX fleet. Whether you need complete ongoing maintenance, or just a little help with provisioning, we have the service package that will suit your needs. You’ll get the right level of support for reliable and consistent communications, right across your organization.
1. Features
FEATURES AND BENEFITS
• Dual-Knob Solution
• Available in VHF, UHF (R1 and R2), and 700/800 MHz bands
• Modes of Operation:
• APCO P25 Conventional
• APCO P25 Phase 1 FDMA Trunking, Phase 2 TOMA Trunking
• SmartNet® , SmartZone®, SmartZone Omni link
• Narrow and wide bandwidth digital receiver (6.25 kHz equivalent / 12.5 kHz / 25 kHz)1
• Embedded digital signaling (ASTRO and ASTRO 25)
• Available in models 2 and 3
• Radio Profiles
• Unified Call List
• User-programmable Voice Announcement
• Meets Applicable MIL-STD-810C, D, E, F and G
• Full Portfolio of Accessories, including IMPRES batteries, chargers and audio devices2
STANDARD FEATURES
• Operational-Critical Wireless Bluetooth® 4.0 (LE)3
• Emergency Find Me
• ASTRO 25 Integrated Voice & Data
• Integrated GPS/GLONASS for Outdoor Location-Tracking
• Single-Key Advanced Digital Privacy (ADP) Encryption
• IP68 submersion (2 meters, 2 hours)
• IMPRES Battery (PMNN4491B)
• Text Messaging
• Software key
2. Specification
GENERAL SPECIFICATIONS | |
Channel Capacity |
512 |
Frequency |
700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz |
FLASHport Memory |
2GB |
Maximum Frequency Separation |
Full Bandsplit |
Audio Response1 |
+1, -3 dB |
Rated RF Output Power Adj1 |
700 MHz: 1-2.5 Watts ;800 MHz: 1-3 Watts ; VHF:1-6Watts; UHF:1-5Watts |
Dimensions (HxWxD) |
130 x 55 x 36MM(With Standard Battery PMNN4491) |
Weight |
315g |
Display |
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 2 menus, White backlight |
Keypad (Model3) |
Backlit keypad, 2 soft keys, 4-direction navigation key, 4x3 keypad, Home and Back buttons buttons |
RECEIVER | |
Frequency Range/Bandsplits |
700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz |
Channel Spacing |
25/20/12.5 kHz |
Maximum Frequency Separation |
Full Bandsplit |
Audio Output Power at Rated/Max |
3 Watt/5 Watt |
Selectivity (25 kHz / 12.5 kHz)1, 5 |
79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB |
Intermodulation Rejection1 |
81 dB ;80 dB; 82 dB; 80 dB |
Audio Distortion at Rated |
1.2% ;1.3%; 1.3%; 1.2% |
Spurious Rejection1 |
98 dB ;98 dB; 92 dB; 98 dB |
ENCRYPTION | |
Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm |
ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm |
Encryption Algorithm Capacity |
8 |
Encryption Keys per Radio |
Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID) |
GPS/GNSS SPECIFICATIONS |
Constellations GPS & GLONASS |
Water and Dust Intrusion |
IP68 (2 meters, 4 hours) |
TRANSMITTER | |
Frequency |
700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz |
Channel Spacing |
25/20/12.5 kHz |
Power Output : |
700 MHz: 1-2.5 Watts 800 MHz: 1-3 Watts ; VHF: 1-6 Watts ,UHF :1-5Watts
|
3. Shipping Terms
Shipment usually arranged by the below methods: DHL, UPS, FedEX, TNT, EMS and so on. Depends on the destination of which country and area. DHL and UPS will be the first choice, because of the fast efficiency. If need any other ways, just kindly inform us, please. We will arrange for you.
4. Payment Terms
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
