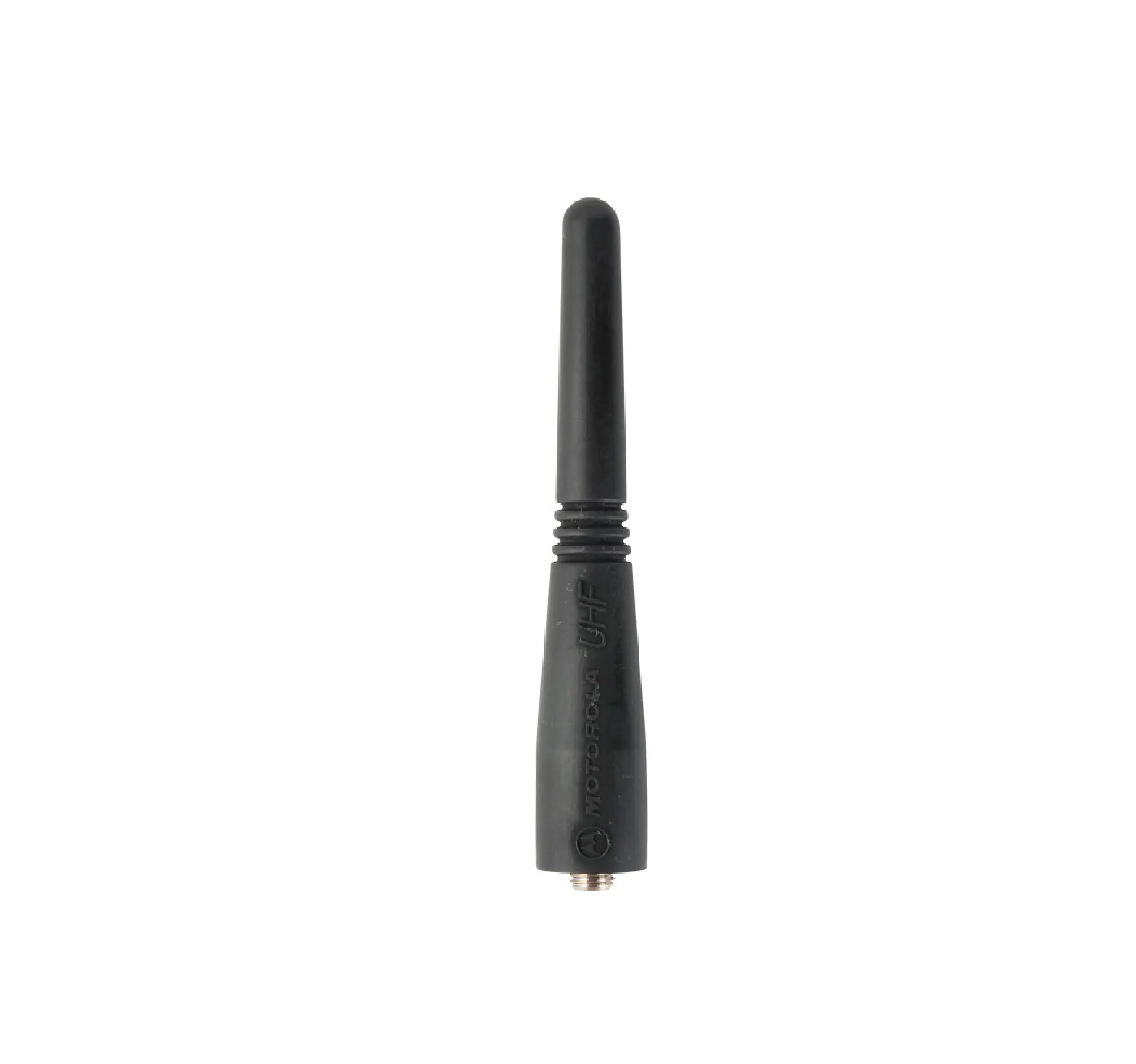

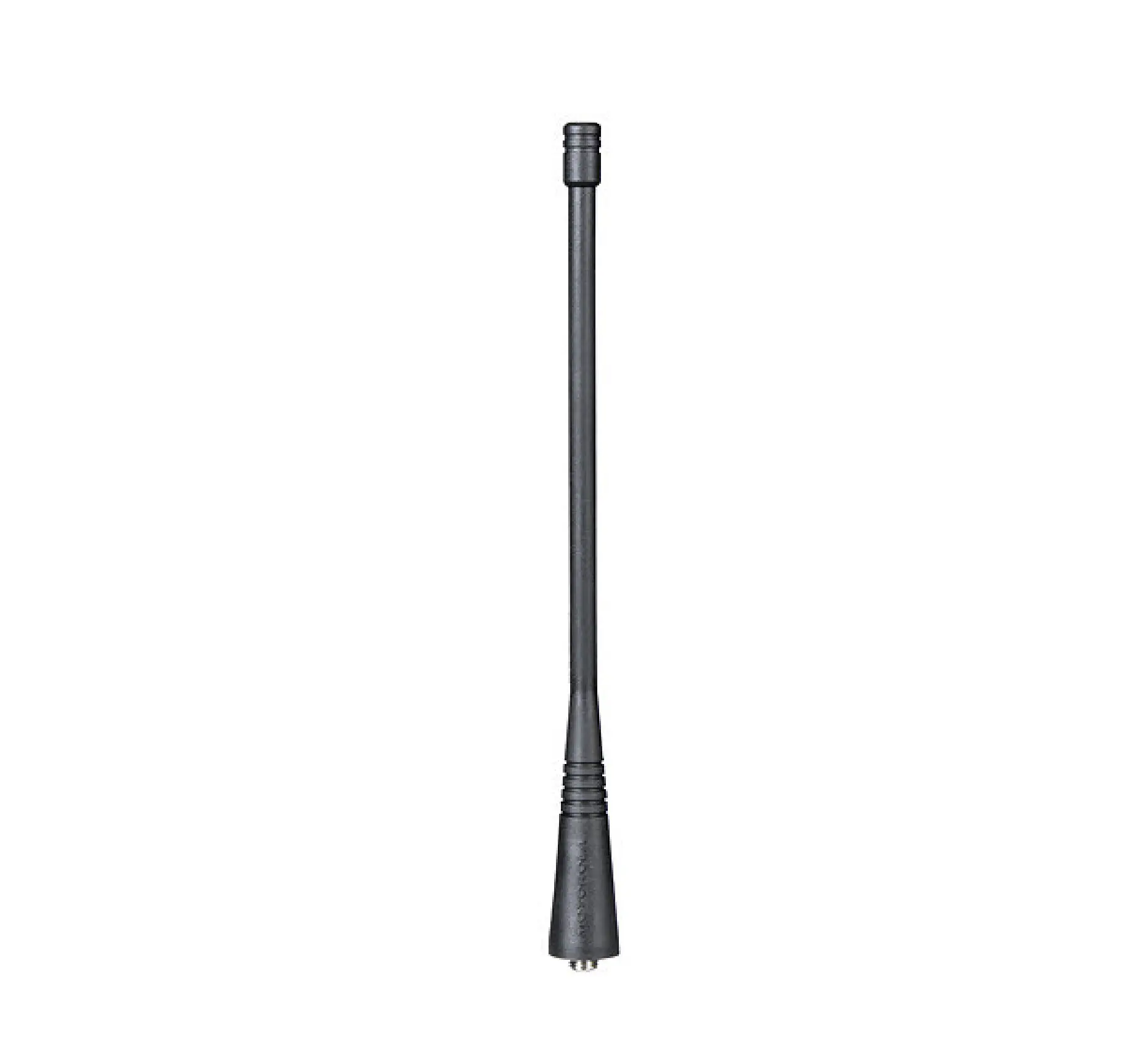

Motorola Portable UHF Antenna for Motorola HT750

Frequency Band: UHF (403-470 MHz)
Type: Whip antenna
Length: Approximately 6.5 inches (16.5 cm)
Power Handling: Up to 5W
Impedance: 50 ohms
VSWR: ≤1.5:1 (typical)
Gain: ~2 dBi
Connector Type: BNC male
Material: Stainless steel core with impact-resistant plastic coating
Compatibility: Specifically designed for Motorola HT750 portable radios

product details

product description

Function Introduction

UHF Band Optimization

Tuned for 403–470 MHz, ensuring optimal signal transmission for 2 Way Radios in urban or indoor environments. This specificity surpasses multi-band Radio Walkie Talkie antennas, minimizing interference in crowded frequencies.

HT750 Compatibility

Exclusively designed for Motorola HT750 2 Way Radios, ensuring a secure fit and maximum performance. This precision avoids signal loss common with ill-fitting Radio Walkie Talkie antennas, preserving communication integrity.

5W Power Handling

Supports the HT750’s maximum output, maintaining stable performance for 2 Way Radios during extended shifts. This durability prevents signal drop-offs, a critical advantage over underrated Radio Walkie Talkie antennas.

Product Parameters

Dimension	6.5 inches (16.5 cm)
Frequency Band	UHF (403-470 MHz)
Type	Whip antenna
Power Handling	Up to 5W
Impedance	50 ohms
VSWR	≤1.5:1 (typical)
Gain	~2 dBi
