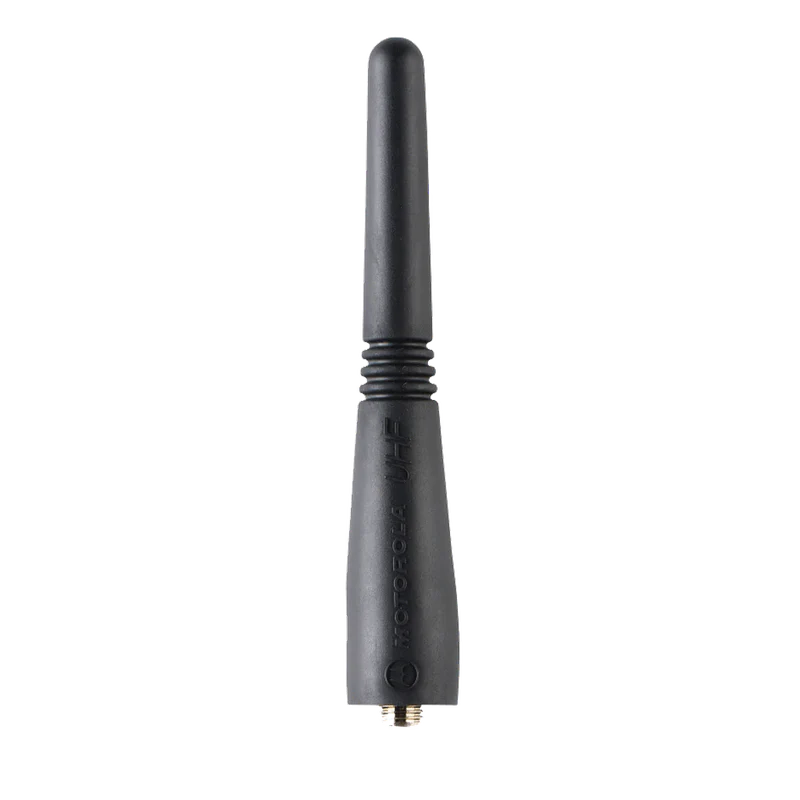

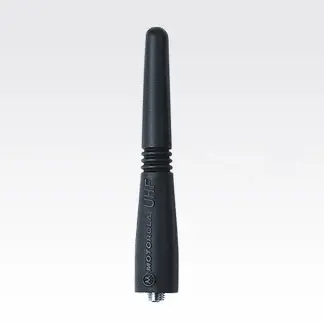

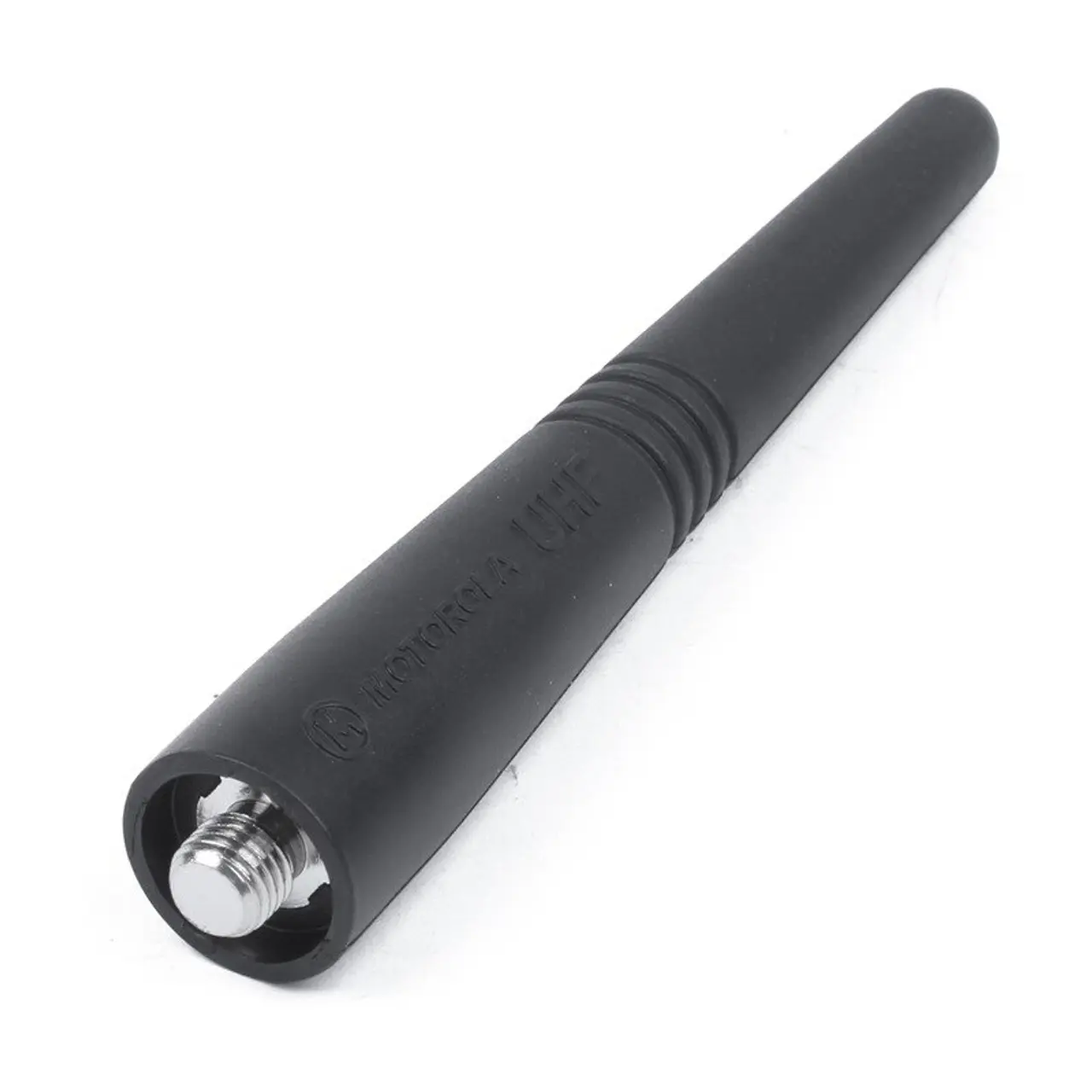

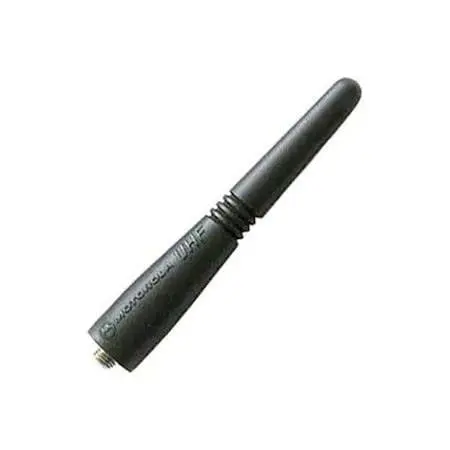

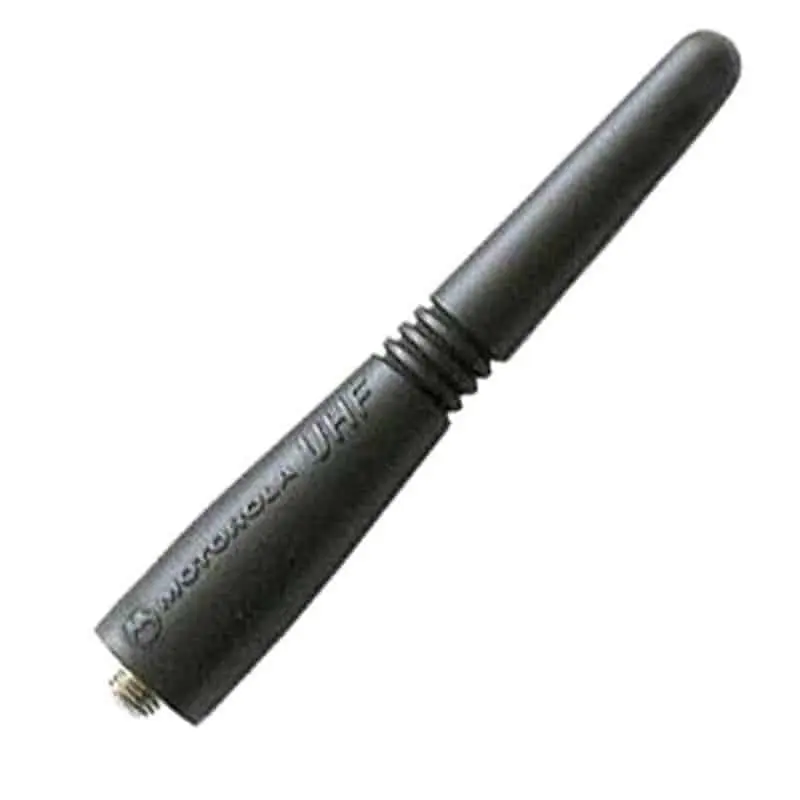

Motorola PMAE4003 UHF Stubby Antenna, 430 - 470 MHz

Frequency Band: UHF (450-512 MHz)
Type: Whip antenna
Length: Approximately 7.5 inches (19.05 cm)
Power Handling: Up to 5W
Impedance: 50 ohms
VSWR: ≤1.5:1 (typical)
Gain: ~3 dBi
Connector Type: SMA male
Material: Flexible rubberized casing with metal core
Compatibility: Designed for Motorola XPR 7000/8000 and APX 4000/6000/7000 series radios

product details

product description

Function Introduction

Broad Compatibility

Optimized for XPR 7000/8000 and APX 4000/6000/7000 2 Way Radios, ensuring a perfect fit and maximum performance. This precision surpasses universal Radio Walkie Talkie antennas, avoiding signal loss from mismatched designs.

Enhanced Signal Strength

Delivers superior gain for extended range, critical for 2 Way Radios in remote or urban settings. This capability outperforms stock Radio Walkie Talkie antennas, reducing dead zones during critical operations.

Rugged Construction

Built to withstand harsh conditions, including extreme temperatures and physical impacts, ideal for 2 Way Radios in field operations. This durability exceeds consumer-grade Radio Walkie Talkie antennas, ensuring long-term reliability.

Product Parameters

Dimension	7.5 inches (19.05 cm)
Frequency Band	UHF (450-512 MHz)
Type	Whip antenna
Power Handling	Up to 5W
Impedance	50 ohms
VSWR	≤1.5:1 (typical)
Gain	~3 dBi
