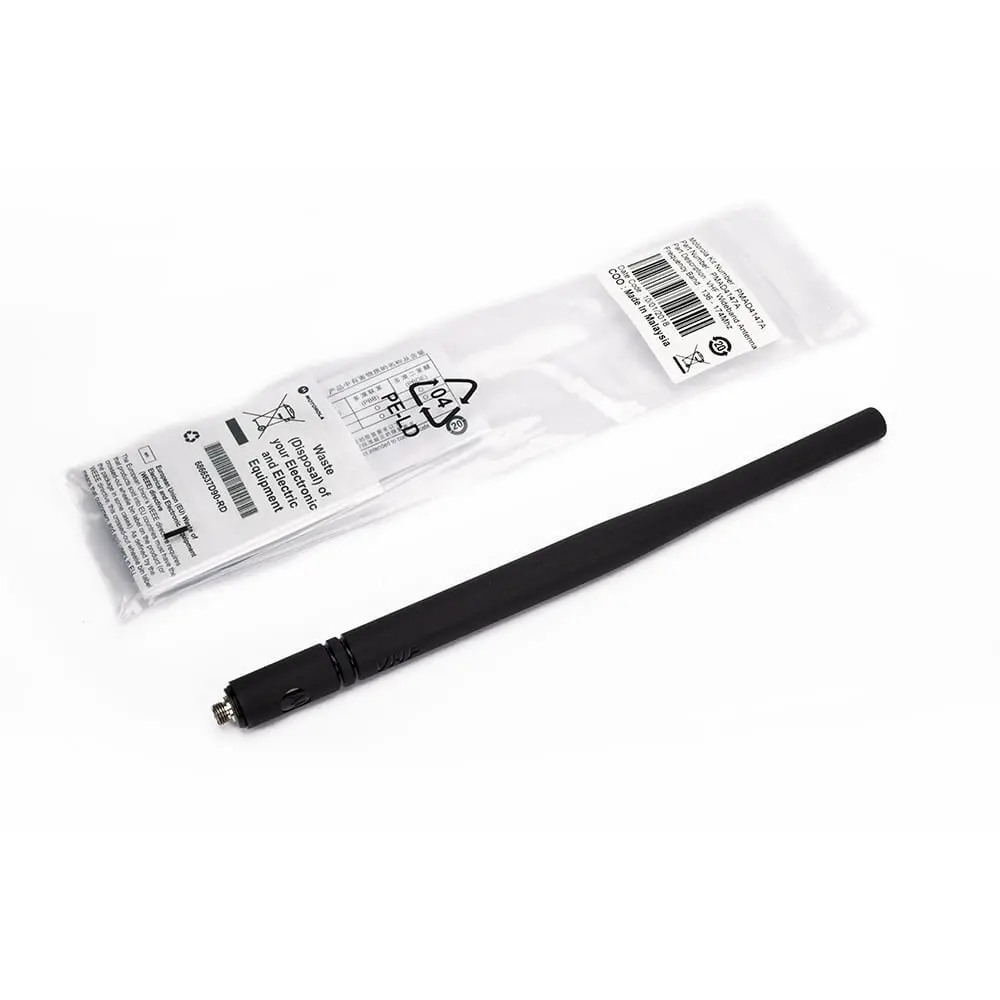

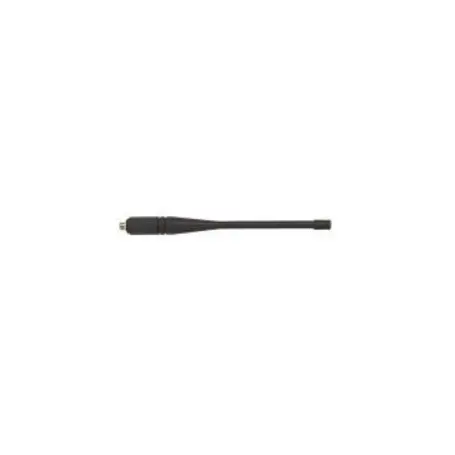

Motorola PMAD4147A antenna
Function Introduction
01
UHF 450–512 MHz Optimization
Tuned for this critical band, maximizing signal clarity for 2 Way Radios in indoor and urban environments. This precision minimizes interference, outperforming multi-band options for Radio Walkie Talkie users needing consistent connectivity in busy areas.
01
PMAD4147A Balanced Design
At 6.5 inches with 2.1 dBi gain, it combines portability and range— ideal for 2 Way Radios users requiring extended coverage without excessive bulk. This profile avoids snagging while boosting signal strength, a key advantage over shorter Radio Walkie Talkie antennas in medium-sized facilities.
01
4W Power Handling
Supports the maximum output of compatible 2 Way Radios (including CP200, CP200d, CLS series), maintaining stability during prolonged use. This durability prevents drop-offs, critical for Radio Walkie Talkie communications in all-day operations.
Product Parameters
Dimension |
6.5 inches (16.5 cm) |
Frequency Range |
UHF (450-512 MHz) |
Type |
Portable whip antenna |
Power Handling |
Up to 4W |
Impedance |
50 ohms |
VSWR |
≤2.0:1 |
Gain |
~2.1 dBi |
Connector Type |
SMA male |
