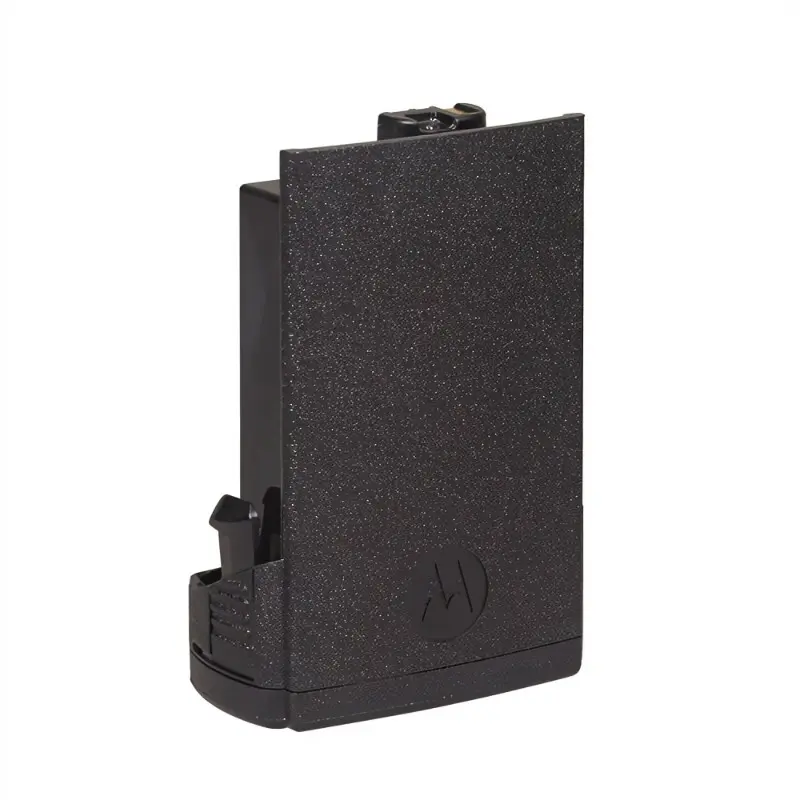

Motorola NNTN7035 battery

Battery Type: Lithium-ion (Li-ion)
Voltage: 7.4 V DC
Capacity: 3000 mAh
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Charging Time: Approximately 4 hours with rapid chargers; 12 hours with standard chargers
Runtime: Up to 20 hours (at 5/5/90 duty cycle)
Weight: Approximately 130 grams
Dimensions: ~120mm x 60mm x 25mm (L x W x H)
Compatibility: Motorola XTS2500, XTS3000, XTS3500, XTS5000, and APX 4000 series 2-way radios
Chemistry: High-performance Li-ion with no memory effect, supporting over 500 charge cycles

product details

product description

Function Introduction

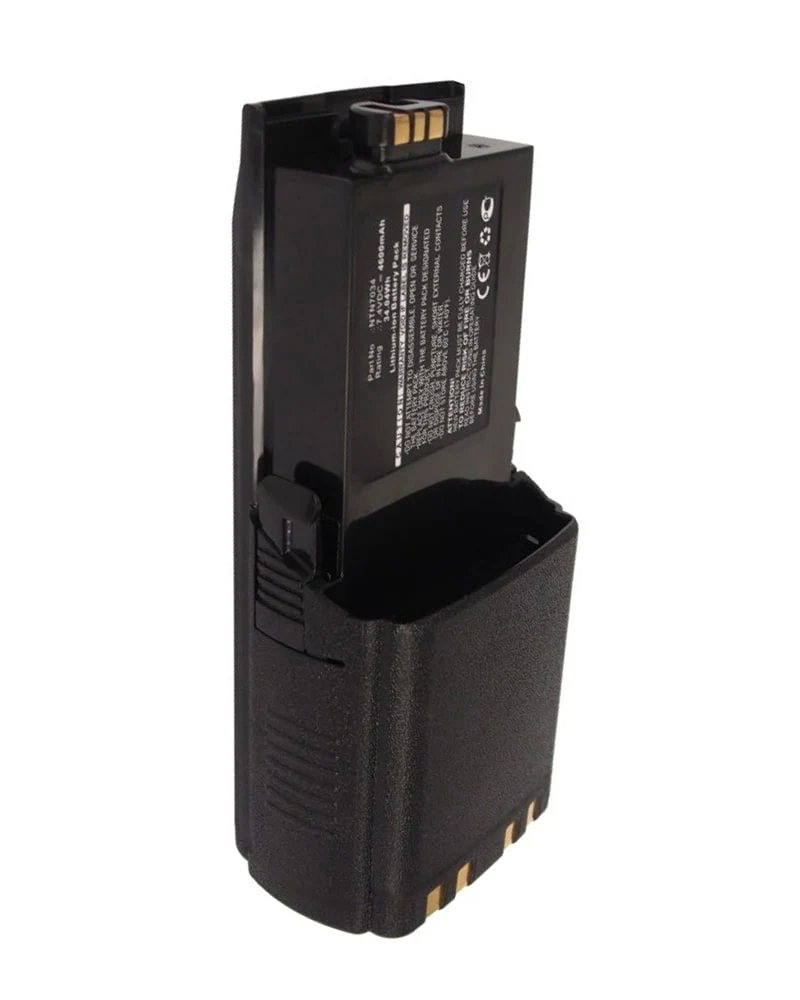

TWMO1-LI4600C-2_9863182c-f126-40c3-8536-8cfec8866afb

3000 mAh High Capacity

Delivers up to 20 hours of runtime (at 5/5/90 duty cycle) for 2 Way Radios, ideal for Radio Walkie Talkie users in roles like firefighters, paramedics, or industrial inspectors working extended missions. This endurance eliminates mid-operation recharges in critical settings.

NNTN7035 Li-ion Durability

No memory effect and 500+ charge cycles ensure long-term performance, outperforming standard batteries for 2 Way Radios. This longevity reduces replacement costs for Radio Walkie Talkie fleets in high-usage sectors.

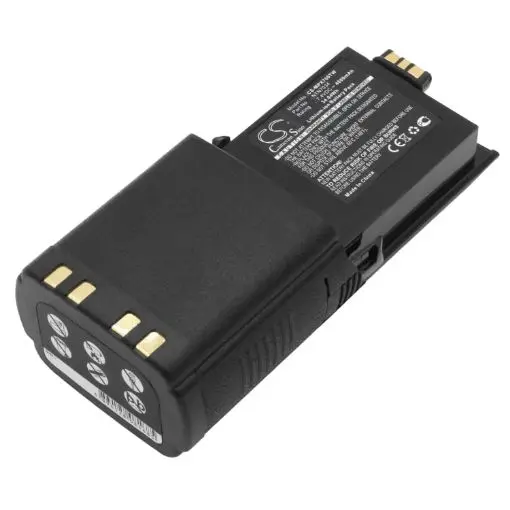

0244295_battery-replacement-motorola-nntn7034a-nntn7034b-nntn7035-nntn7035a-nntn7038-nntn7038a-nntn7038b-nnt_510

7.4V Optimized Output

Perfectly matched to compatible 2 Way Radios (XTS2500, XTS3000, XTS5000, APX 4000 series), ensuring stable power delivery without risking device damage. This precision avoids issues common with generic Radio Walkie Talkie batteries in advanced models.

Product Parameters

Dimension	120mm x 60mm x 25mm (L x W x H)
Weight	About 130g
Battery Type	Lithium-ion (Li-ion)
Voltage	7.4 V DC
Capacity	3000 mAh
Runtime	Up to 20 hours
Operating system	CAT-1 system
