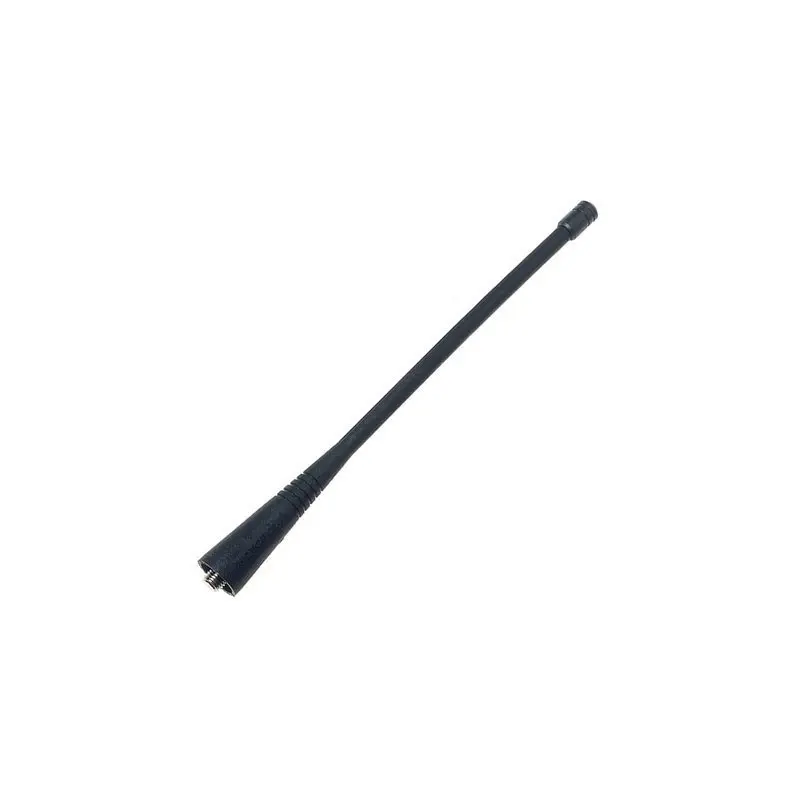

Motorola NAE6483AR antenna

Frequency Range: VHF (136-174 MHz)
Type: Mobile whip antenna
Length: Approximately 20 inches (50.8 cm)
Power Handling: Up to 50 watts
Impedance: 50 ohms
VSWR: ≤1.5:1 (typical within operating band)
Gain: ~3.0 dBi
Connector Type: SMA male
Construction: Flexible rubber casing with a robust internal core for durability
Compatibility: Designed for Motorola VHF mobile 2-way radios, suitable for vehicle-mounted communication systems

product details

product description

Function Introduction

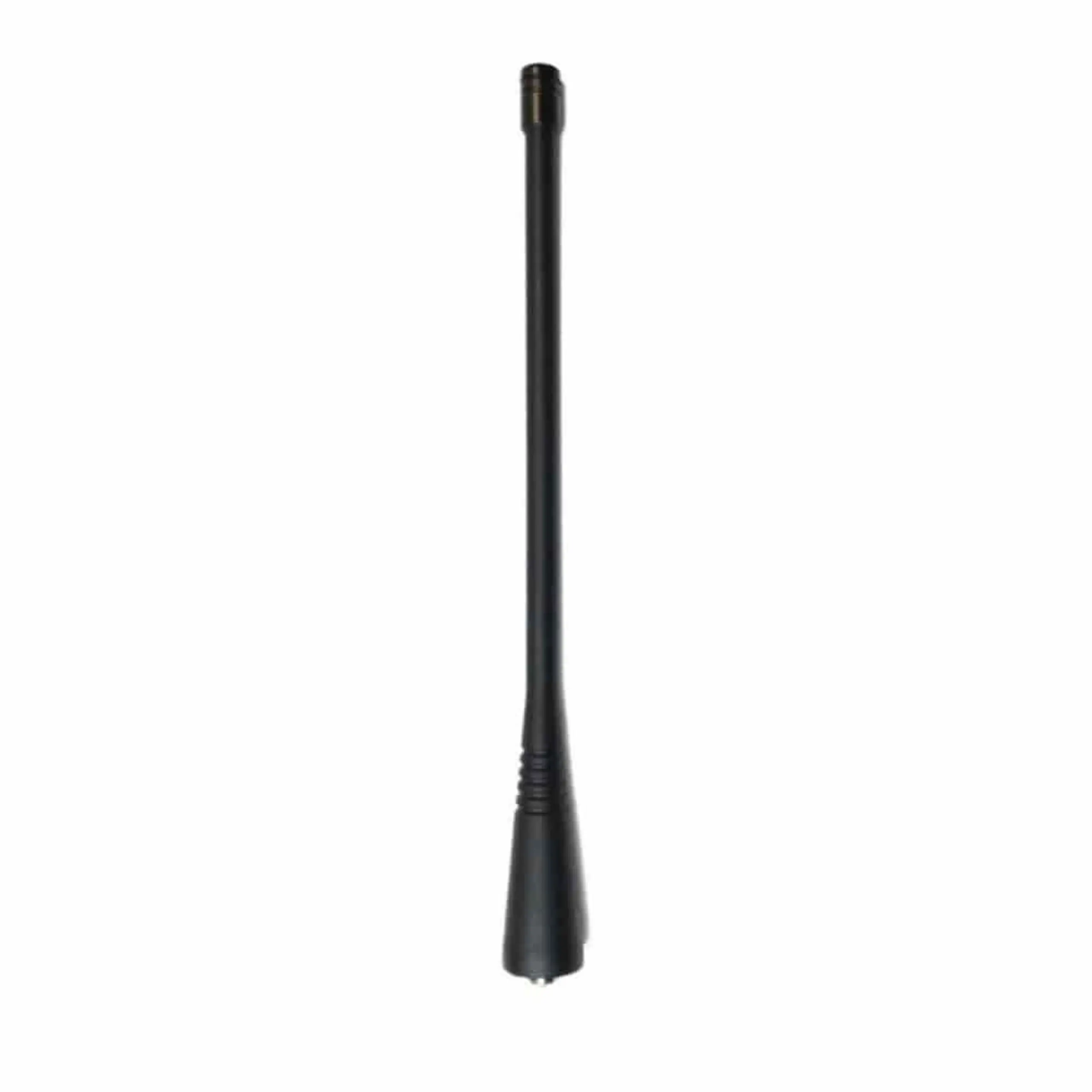

Two-Way-Direct-ANT-UL-CP200-Antenna__64825

VHF 136–174 MHz Optimization

Tuned for this critical band, maximizing signal propagation for 2 Way Radios in open terrains and rural regions. This precision minimizes interference, outperforming multi-band options for Radio Walkie Talkie users needing consistent long-distance connectivity.

NAE6483AR High Gain (3.0 dBi)

Significantly extends coverage for 2 Way Radios, critical for fleets operating across large territories or through challenging landscapes. This performance surpasses low-gain alternatives, eliminating dead zones in vital Radio Walkie Talkie communications for emergency or utility teams.

50W Power Handling

Supports high-output 2 Way Radios, maintaining stability during prolonged use— ideal for fleets requiring constant, high-power transmission. This durability prevents drop-offs, a key advantage over underrated Radio Walkie Talkie antennas in 24/7 operations.

Product Parameters

Dimension	20 inches (50.8 cm)
Frequency Range	VHF (136-174 MHz)
Type	Mobile whip antenna
Power Handling	Up to 50 watts
Impedance	50 ohms
VSWR	≤1.5:1
Gain	~3.0 dBi
Connector Type	SMA male
