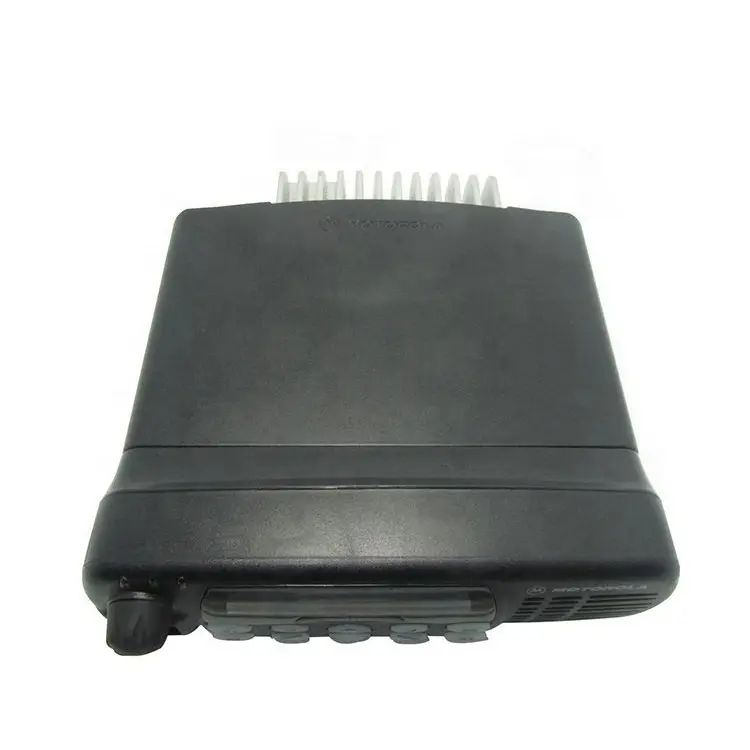

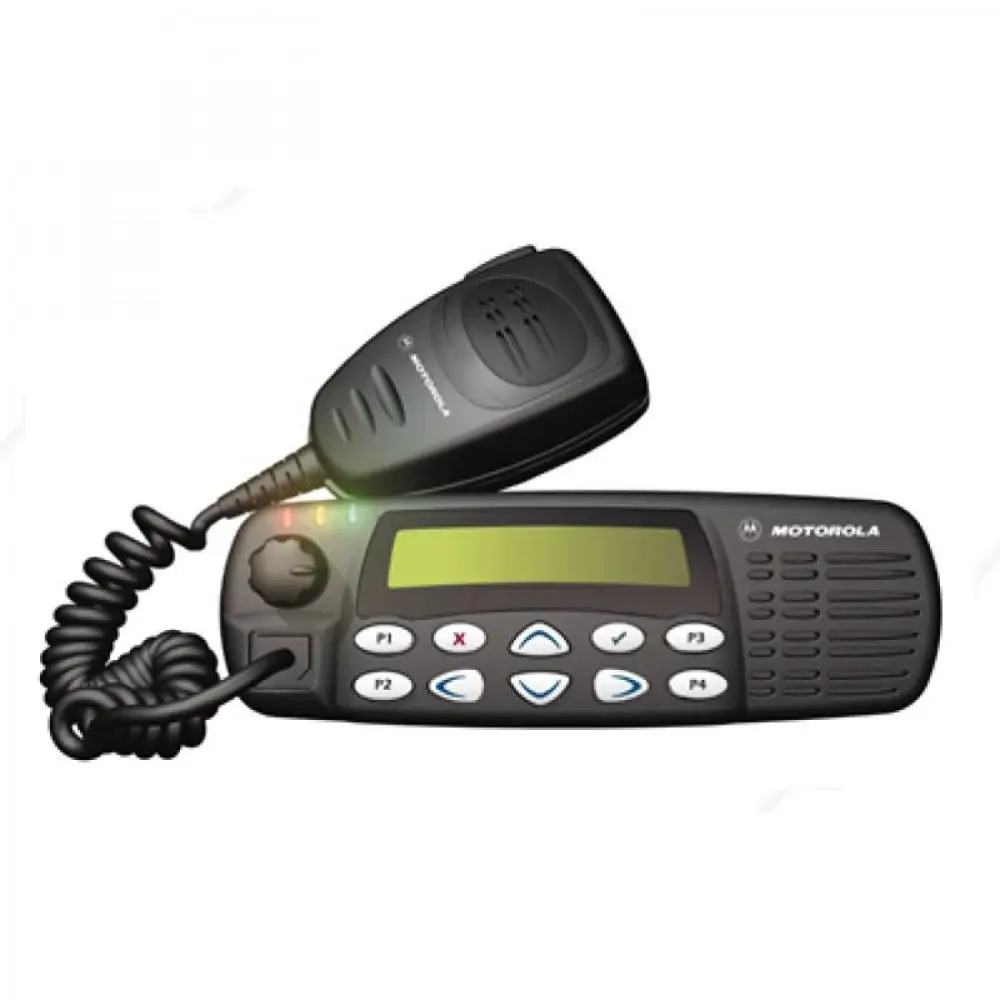

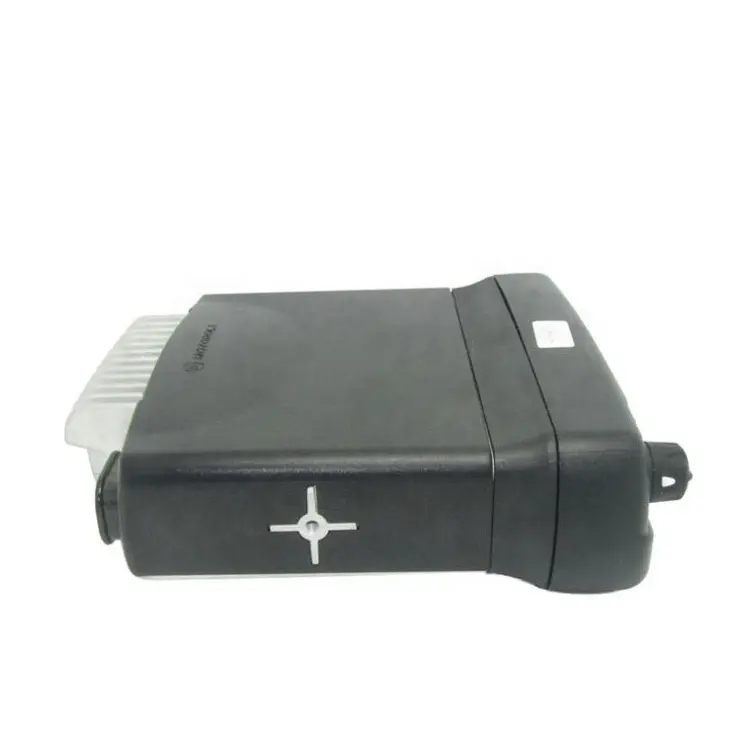

Motorola Mobile Car Radio Transceiver With Vehicle Mounted GM360
product detail
1. Features
The GM360, one of the market-leading radios in Motorola’s Professional Series, offers communications for the mobile workforce in larger organisations. The radio offers broad functionality; an easy-to-use menu with navigation keys for productivity and security features to protect users working alone or remotely.
Option boards and a wide range of accessories and portable radios are also available within the Professional Series. It is easy to build a tailored communications solution to meet your needs.
KEY FEATURES
Signalling
• Private LineTM
• 5-tone selective signalling
Easy to use and set-up
• Intuitive menu-driven user interface and large controls enable easy access to many features • 14 character alpha-numeric display
• Programmable buttons
• PC programmable*
Adaptable and versatile
• Option board capability allows additional features and customer-specific functions*
• Easily programmed in the field to support additional features
• Data capability allows interface to third party terminals to enhance communications
Protecting users
• Emergency signalling
• Lone worker
• External alarm
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand TM voice compression technology
Efficiency
• Channel scanning
• Call forwarding
• Status calls
• Car radio mute
• Memory channel
• Voice operated transmit (VOX)
Included as standard
• Battery power cable
• Enchanced compact microphone
• 3 point mounting tray
Accessory options
A wide range of accessory options are available to customise your radio • Microphones and desktop solutions • In-vehicle accessories • Mounting kits
2. Specifications
General Specifications | |
Frequency Range | VHF:136MHz-174MHz |
Memory Channel | 255 Channels |
Channel Spacing | 12.5/20/25 kHz |
Power Output | 1 - 25W; 25 - 45W |
Power Supply | 13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground |
Dimensions (L×W×H) | 186 x 180 x 59mm (add 9mm for Volume knob) |
Weight | 1450g |
Communication Range | about 10-20km |
Operation Mode | Intermittent |
Sealing | Passes rain testing to IP54 |
Dust | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
Transmitter Specifications | |
Modulation Limiting | ± 2.5kHz @12.5kHz; ± 4.0kHz @20kHz; ± 5.0kHz @25kHz |
FM Hum & Noise | - 40dB @ 12.5kHz; - 45dB @ 20/25kHz |
Conducted/Radiated Emissions | - 36dBm < 1 GHz; - 30dBm < 1 GHz |
Adjacent Channel Power | - 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz |
Receiver Specifications | |
Intermodulation (EIA) | 78dB (VHF); 75Db(UHF) |
Adjacent Channel Selectivity | - 40dB @ 12.5kHz; - 45dB @ 20/25kHz |
Audio Response (300 to 3000Hz) | + 1, 3dB |
