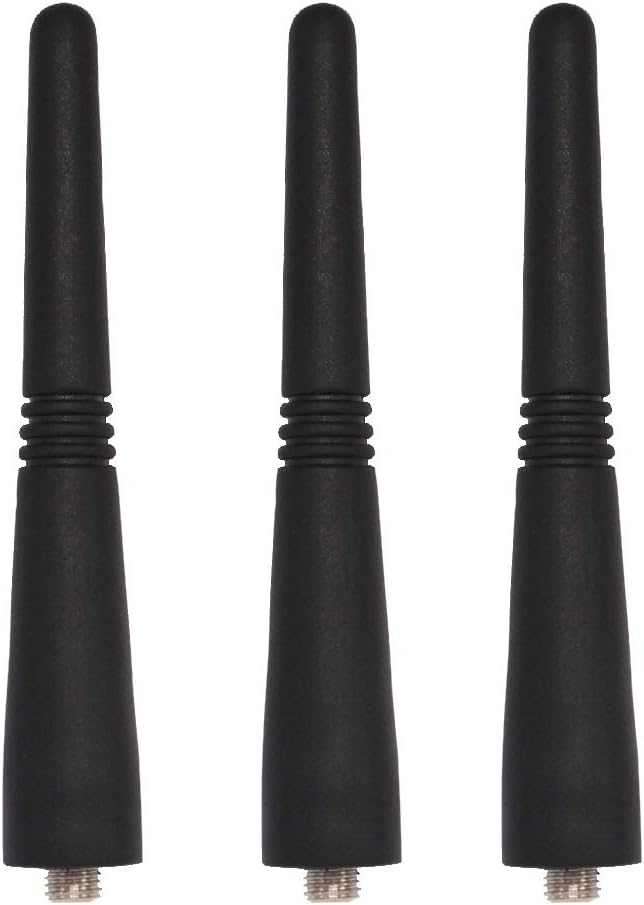

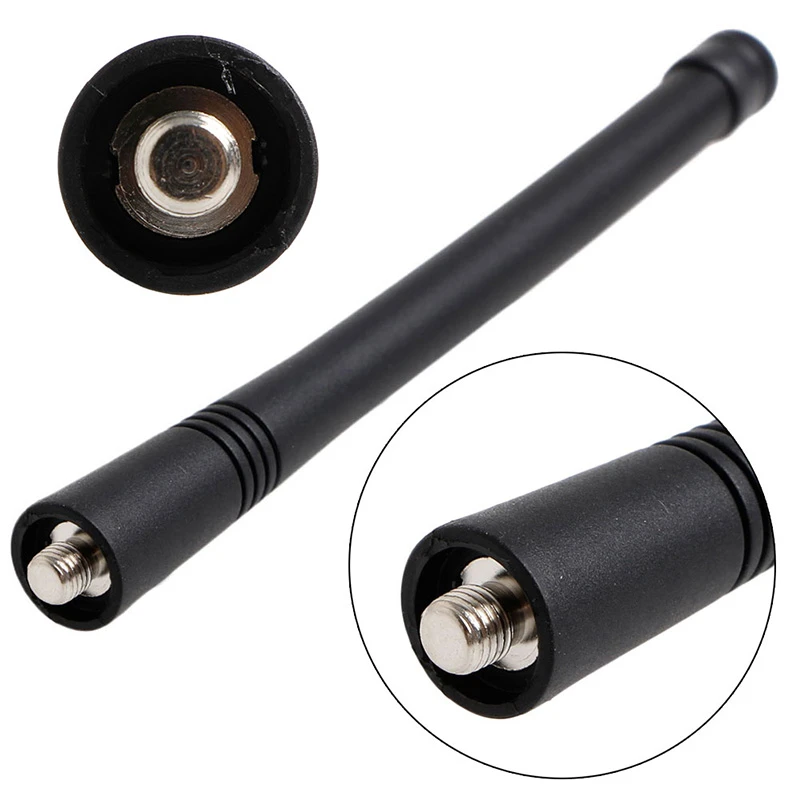

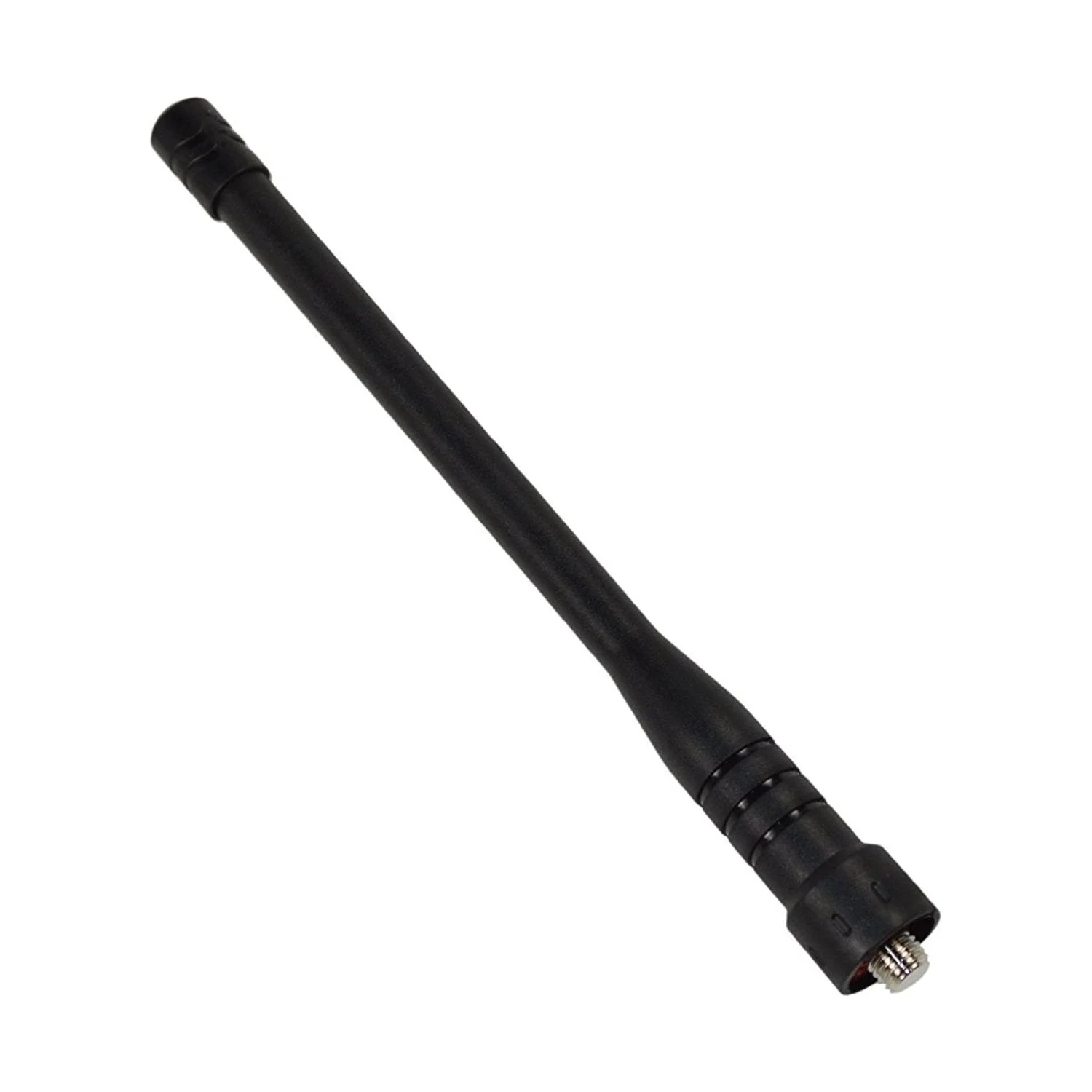

Motorola HT1250 antenna
Function Introduction
01
Dual Band Options
Available in VHF (136–174 MHz) or UHF (403–512 MHz), perfectly matching 2 Way Radios frequency needs. This specificity ensures optimal transmission, surpassing one-size-fits-all Radio Walkie Talkie antennas.
01
Standard & High-Gain Versions
Choose 6.5" (~2 dBi) for portability or 10" (~5 dBi) for extended range, adapting to 2 Way Radios users in tight spaces or large outdoor areas. This versatility outperforms fixed-design Radio Walkie Talkie antennas.
01
5W Power Handling
Supports the HT1250’s maximum output, ensuring stable performance for 2 Way Radios during extended shifts. This durability avoids signal drop-offs common with underrated Radio Walkie Talkie antennas.
Product Parameters
Dimension |
6.5 inches (16.5 cm) for standard; 10 inches (25.4 cm) for high-gain |
Frequency Band |
VHF (136-174 MHz) or UHF (403-470 MHz, 450-512 MHz) |
Type |
Whip antenna |
Power Handling |
Up to 5W |
Impedance |
50 ohms |
VSWR |
≤1.5:1 (typical) |
Gain |
~2 dBi (standard), ~5 dBi (high-gain) |
