Motorola gp328 antenna
Function Introduction
01
Dual Band Options
Available in VHF (136–174 MHz) or UHF (403–470 MHz), matching 2 Way Radios frequency needs for diverse environments. This specificity ensures optimal transmission, surpassing one-size-fits-all Radio Walkie Talkie antennas.
01
GP328 Optimization
Exclusively tuned for GP328 2 Way Radios, ensuring a secure BNC fit and maximum performance. This precision avoids signal loss common with ill-fitting Radio Walkie Talkie antennas, critical for seamless team coordination.
01
Gain Variants

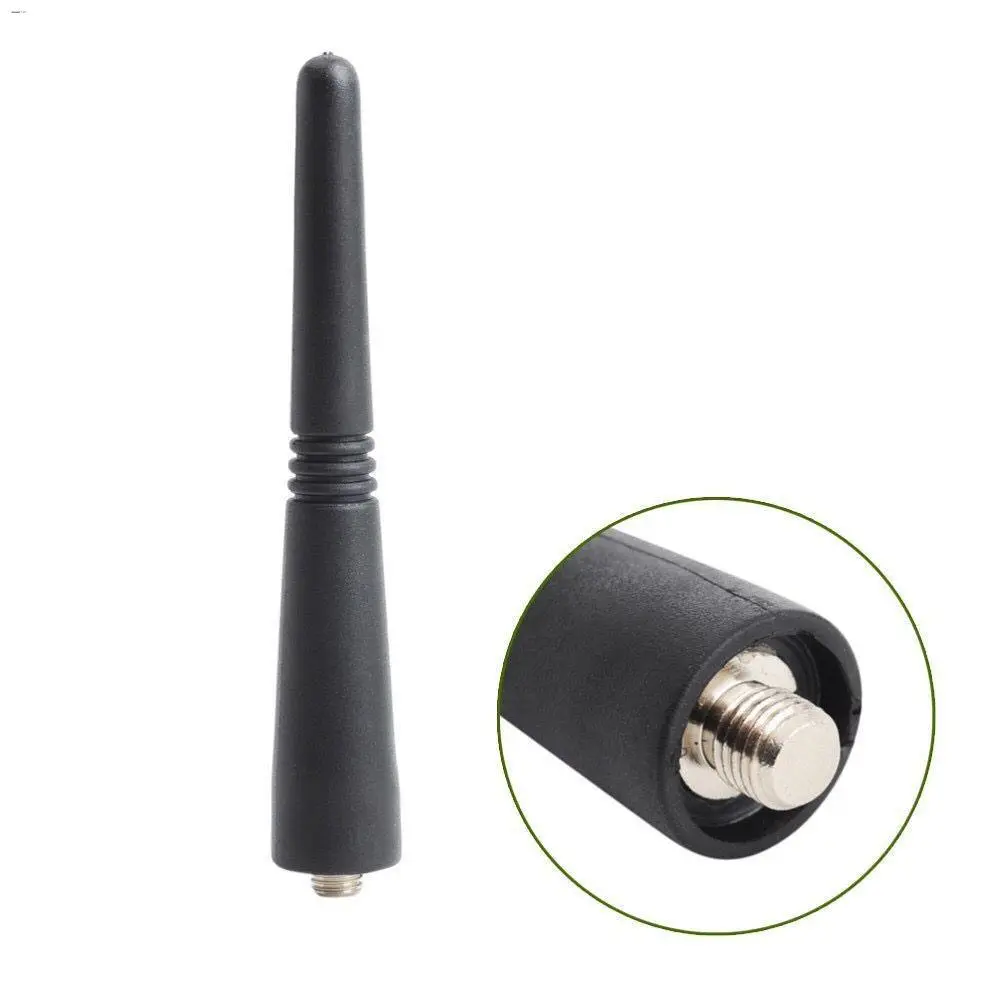

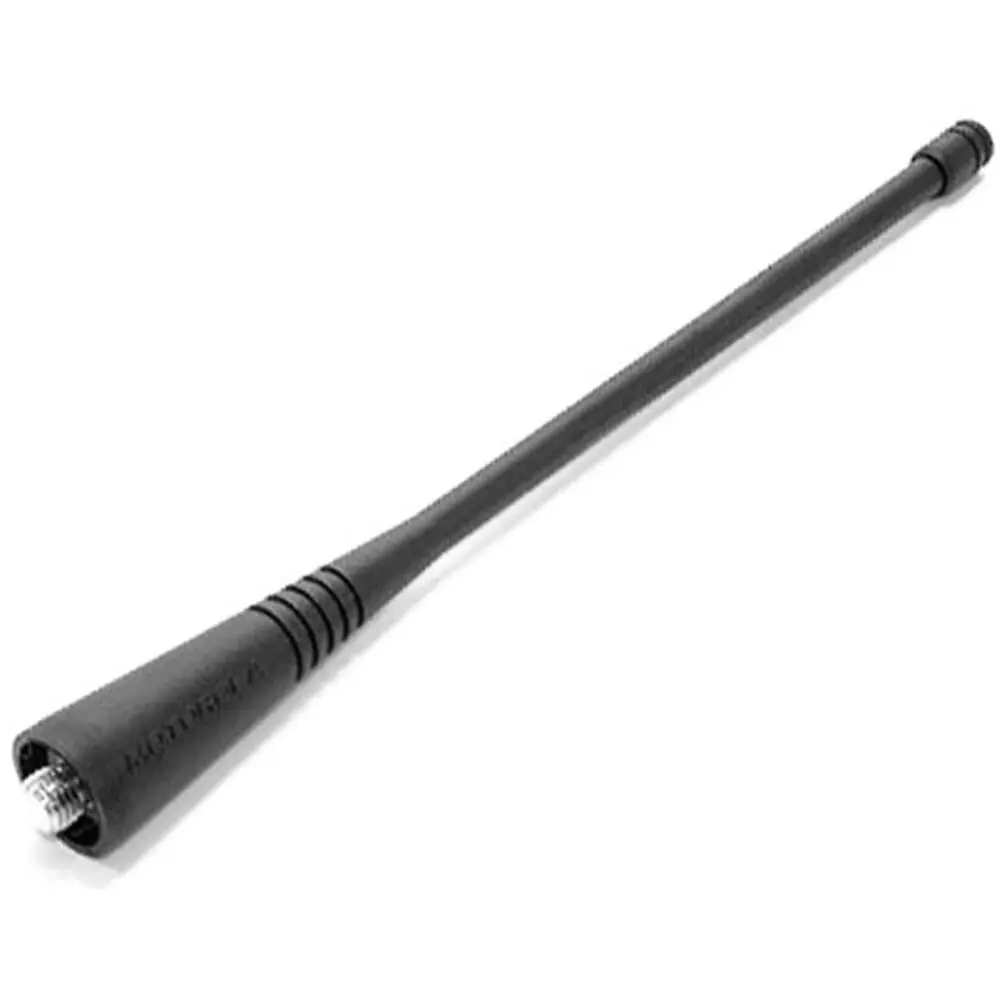

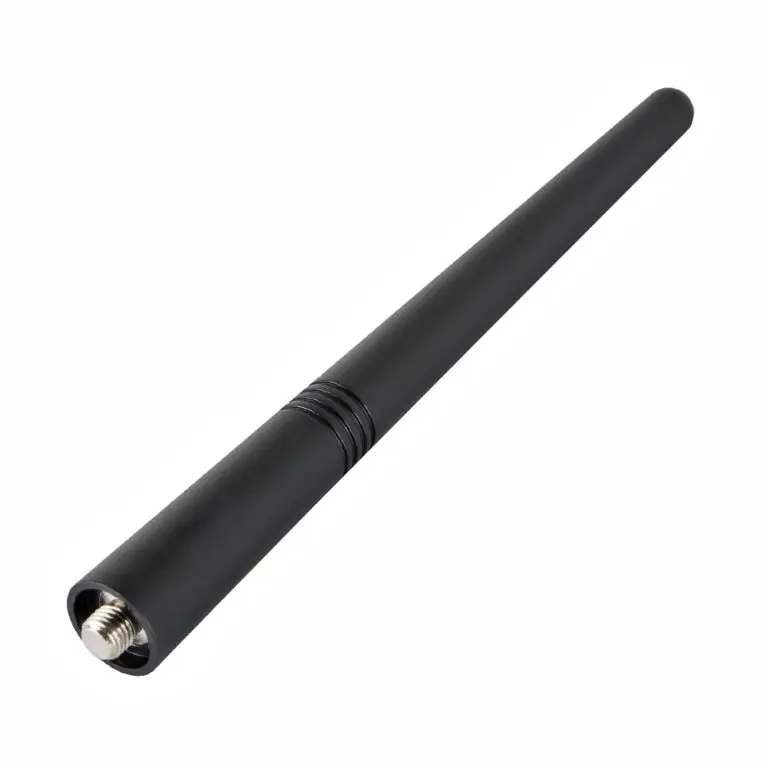

Choose 6.5" standard (~2 dBi), 10" high-gain (~5 dBi), or 2.5" stubby (~1.5 dBi) to suit 2 Way Radios users— from extended range in large facilities to portability in tight spaces. This flexibility outperforms fixed-design Radio Walkie Talkie antennas.
Product Parameters
Dimension |
~6.5 inches (16.5 cm) standard; ~10 inches (25.4 cm) high-gain; ~2.5 inches (6.4 cm) stubby |
Frequency Range |
VHF (136-174 MHz) or UHF (403-470 MHz) (varies by model) |
Type |
Whip antenna |
Power Handling |
Up to 4W |
Impedance |
50 ohms |
VSWR |
≤2.0:1 (typical) |
Gain |
~2 dBi (standard); ~5 dBi (high-gain); ~1.5 dBi (stubby) |
Connector Type |
BNC male |
