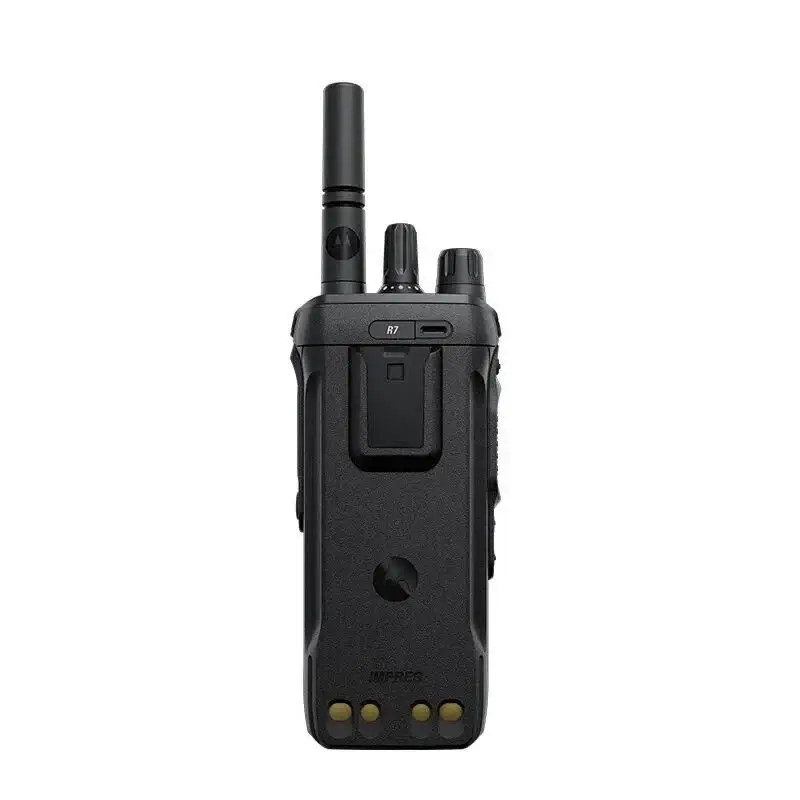

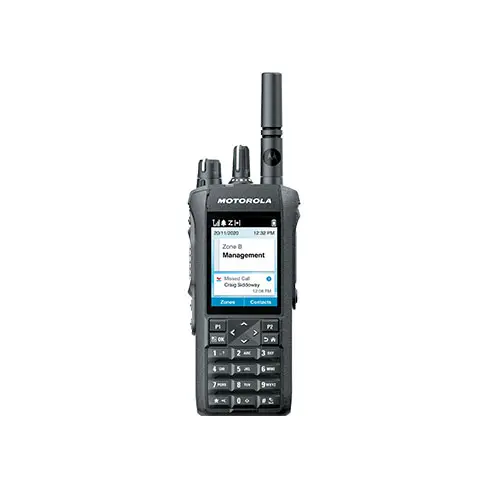

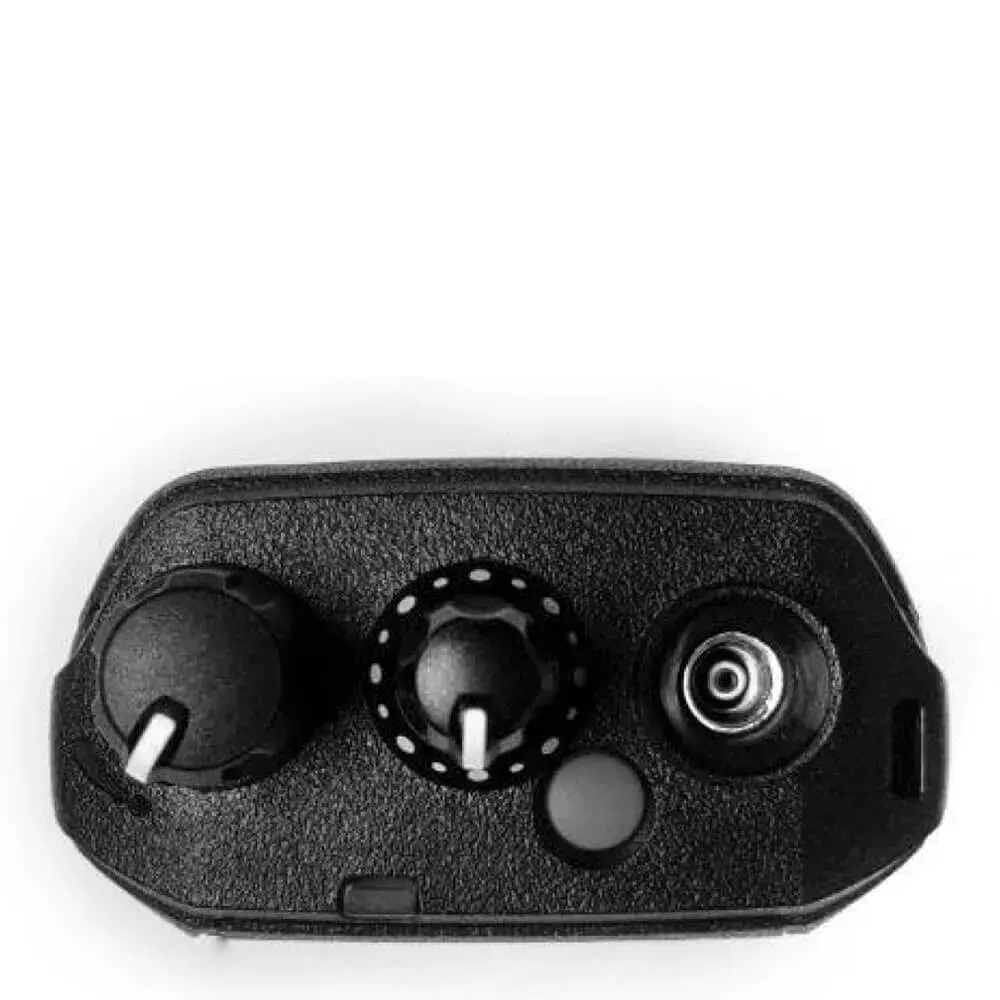

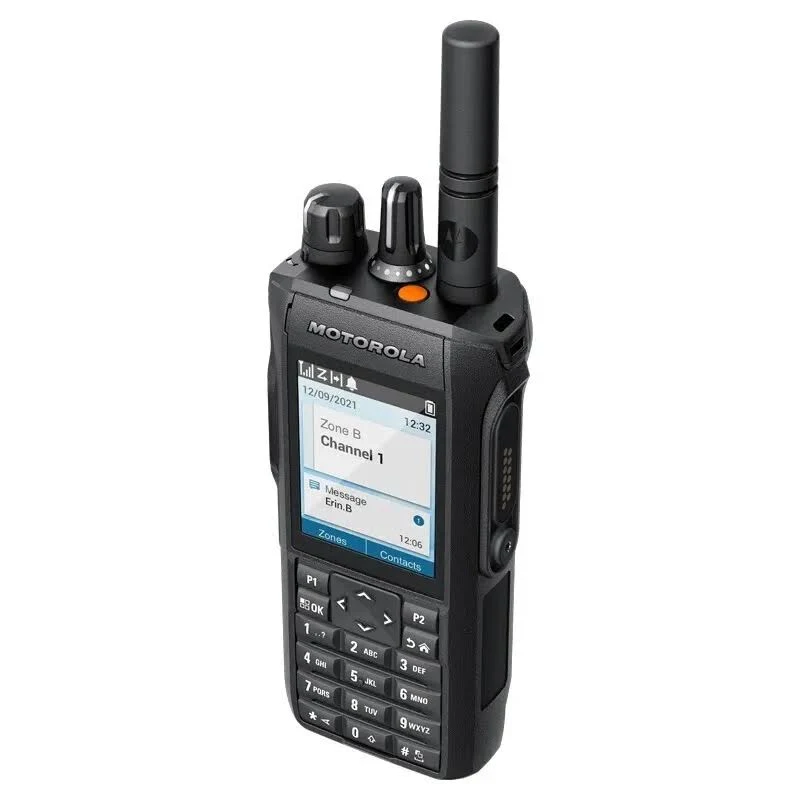

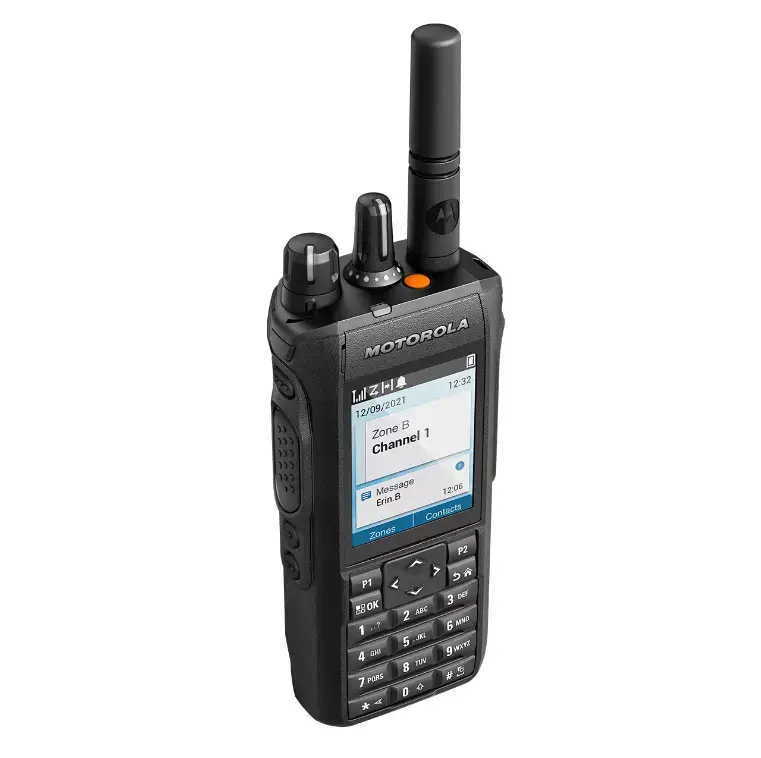

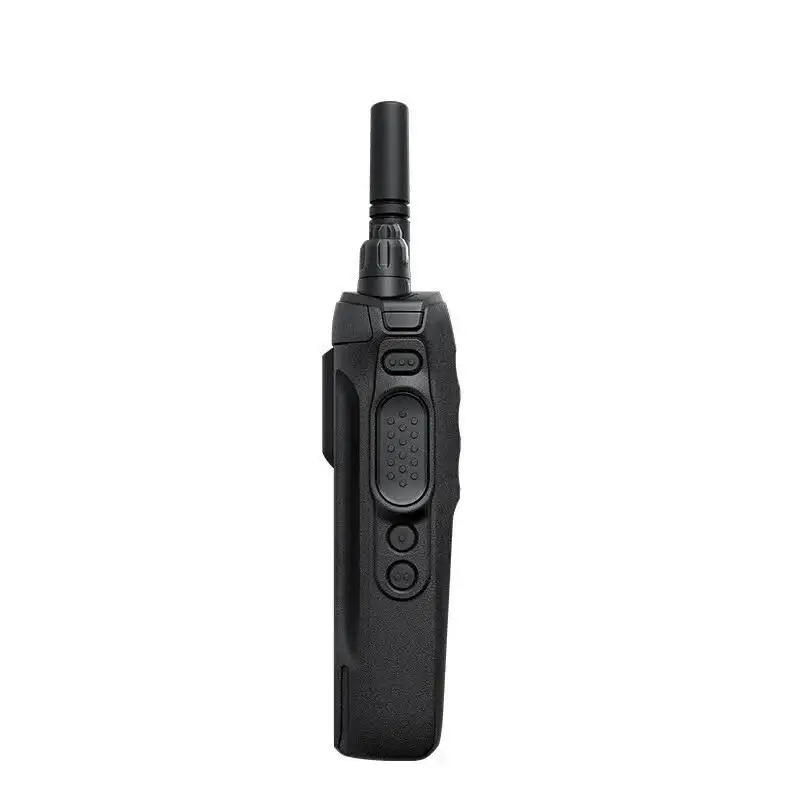

Motorola DMR IP68 Radio Mototrbo Walkie Talkie R7
product detail
1. Features
• UHF / VHF
• Wi-Fi 2.4/5.0 GHz
• WPA3 Wi-Fi security protocol compliant
• Bluetooth 5.2
• 2.4” 320 x 240 px. QVGA display
• Modern, intuitive user experience
• Full suite of accessories
• Sleek and ergonomic form facto
• Automatic Acoustic Feedback Suppression
• Adaptive Dual Microphone Noise Suppression
• Intelligent Audio
• IMPRES™ technology
• Programmable loudness up 107 phons
• Wideband speaker and microphones
• Simple audio configuration
• Up to 28 hours of battery life
• IP68 (waterproof up to 2 meters for 2 hours)
• IP66 (concentrated water jet pressure)
• Intrinsically safe option (UL TIA-4950)
• Disinfectant and decontamination substance resistant housing
• Robust and corrosion-proof side connector
• Rugged to MIL-STD 810
• 5 years of hardware repair, technical support, software updates and premium features
2. Specifications
GENERAL SPECIFICATIONS | |
Channel Capacity |
1000 (FKP); 64 (NKP) |
Frequency |
136-174 MHz 400- 527MHz |
Dimensions (HxWxL) |
with 2200 mAh Slim IMPRES Li-Ion battery PMNN4807: 5.2 x 2.2 x 1.4 in. (131.8 x 56 x 34.7 mm) |
Weight with battery: |
with 2200 mAh Slim IMPRES Li-Ion battery PMNN4807: 11 oz (316 g) |
Power Supply |
7.5V (nominal) |
RECEIVER | |
Frequency |
136-174 MHz 400-527 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 0.5 ppm |
Analogue Sensitivity (12dB SINAD |
0.16 μV (typical) |
Digital Sensitivity (5% BER) |
0.14 μV (typical) |
Intermodulation |
70 dB |
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection |
70 dB |
Rated Audio |
500 mW |
Audio Distortion @ Rated Audio |
3% (typical) |
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response |
+1, -3 dB |
Conducted Spurious Emission |
-57 dBm |
TRANSMITTER | |
Frequency |
136-174 MHz; 400-527 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 1.5 ppm |
Power Output | |
UHF |
1-5 W |
VHF |
1-4W |
Modulation Limiting |
± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kH |
Audio Response |
+1, -3 dB |
Audio Distortion |
3% |
Digital Vocoder Type |
AMBE+2 |
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature |
-30° C / +60° C |
Storage Temperature |
-40° C / +85° C |
Temperature Shock |
Per MIL-STD |
Humidity |
Per MIL-STD |
Water and Dust Intrusion |
IP68 (Submersion up to 2m, 2hrs) IP66 for high pressure-water resistance per IEC 60529 |
3. Shipping Terms
Shipment usually arranged by the below methods: DHL, UPS, FedEX, TNT, EMS and so on. Depends on the destination of which country and area. DHL and UPS will be the first choice, because of the fast efficiency. If need any other ways, just kindly inform us, please. We will arrange for you.
4. Payment Terms
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
