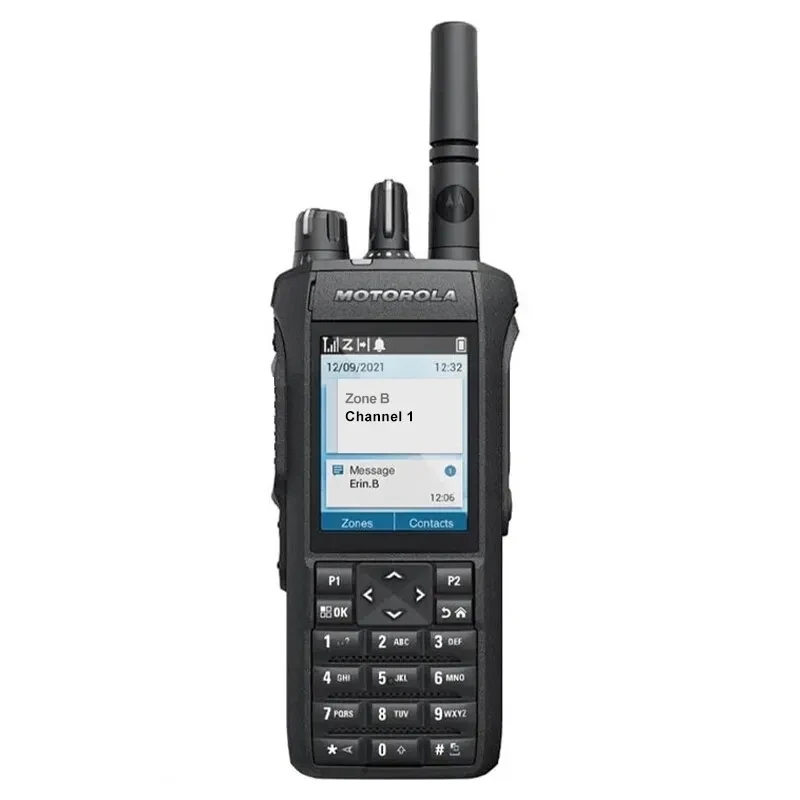

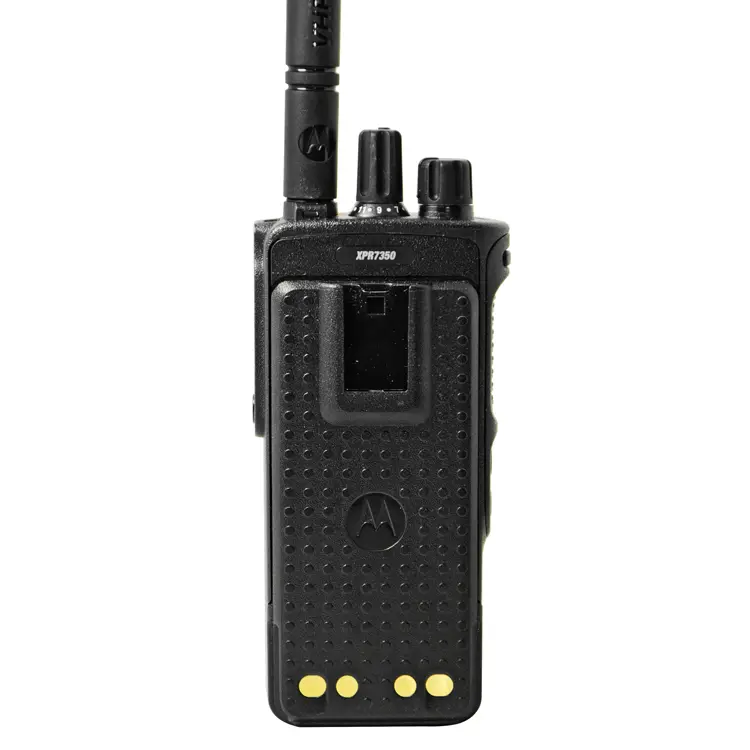

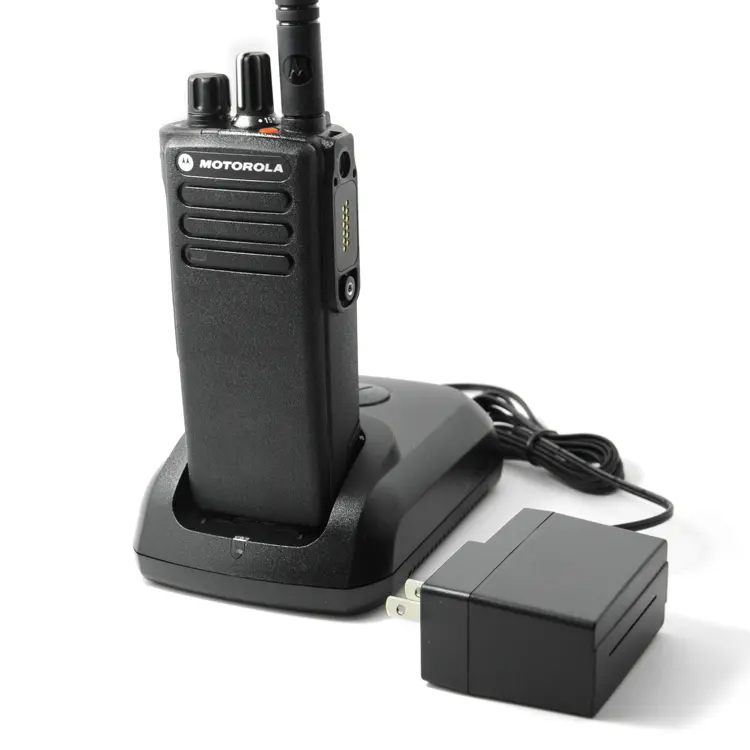

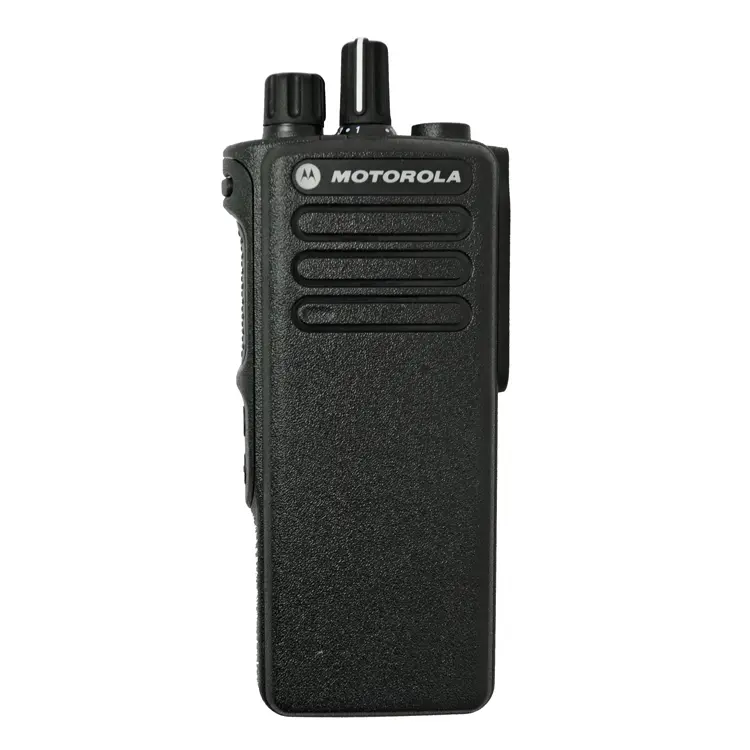

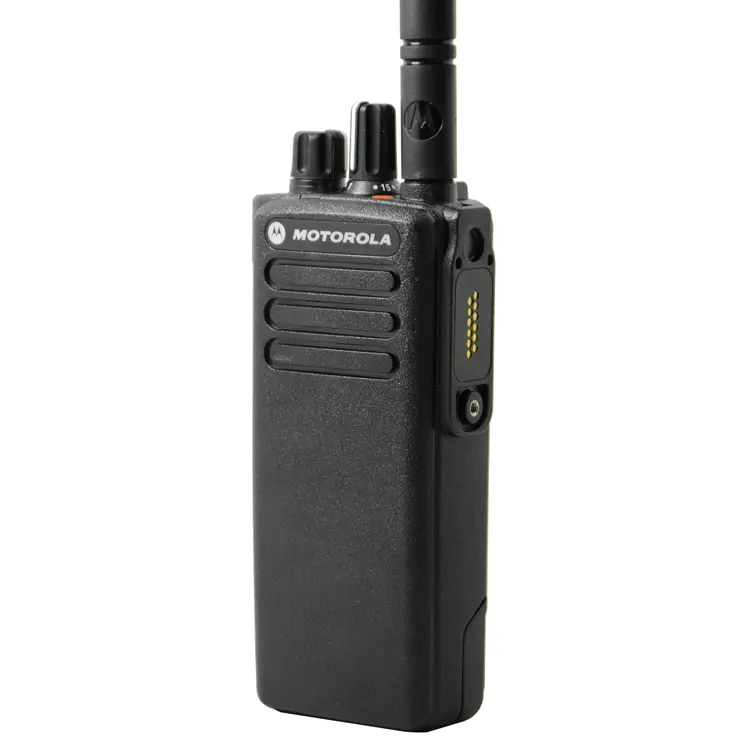

Motorola DMR FM Walkie Talkie With Bluetooth Two Way Radio XPR7350
product detail
1. Features
AUDIO BEYOND EXPECTATIONS
INDUSTRY-LEADING DATA
HIGH-POWERED PERFORMANCE
RICH FUNCTIONALITY
EXPANDED CAPACITY AND COVERAGE
MIGRATE AT YOUR OWN PACE
DAY-IN, DAY-OUT DURABILITY
Location tracking: Monitor the whereabouts of mobile workers so they can respond immediately; in an emergency, you can pinpoint security personnel and send the nearest to the scene
Integrated Bluetooth® for sharing data wirelessly and instantly between devices
Dispatch consoles for centralized communication
Email gateways to connect to email from your radio
Network monitoring to maximize system utilization
Man-down applications so radios call for help when workers can’t
Telephony for communication between radios and landline or mobile phones
Text messaging for quick and discreet communication
Work order tickets for faster customer response
2. Specifications
GENERAL SPECIFICATIONS | |
Channel Capacity |
32 |
Frequency |
136-174 MHz 403-527 MHz |
Dimensions (HxWxL) |
with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm |
IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm | |
Weight with battery: |
with NiMH Battery 1400Mah 425.5 g (15.01 oz) |
IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz) | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz) | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz) | |
Power Supply |
7.5 V (Nominal) |
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
IMPRES LiIon Std Battery |
Analogue: 8 hrs/Digital: 11.8 hrs |
IMPRES LiIon HiCap Battery |
Analogue: 11.5 hrs/Digital: 17 hrs |
IMPRES FM LiIon Battery |
Analogue: 12.3 hrs/Digital: 18.1 hrs |
NiMH Battery |
Analogue: 7 hrs/ Digital: 10.2 hrs |
RECEIVER | |
Frequency |
136-174 MHz;403-527 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 0.5 ppm |
Analogue Sensitivity |
0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
Digital Sensitivity |
5% BER: 0.3 uV |
Intermodulation |
70 dB |
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection |
70 dB |
Rated Audio |
500 mW |
Audio Distortion @ Rated Audio |
3% (typical) |
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response |
+1, -3 dB |
Conducted Spurious Emission |
-57 dBm |
TRANSMITTER | |
Frequency |
136-174 MHz;403-512 MHz |
Channel Spacing |
12.5 kHz/ 20/25 kHz |
Frequency Stability |
+/- 1.5 ppm (DP3600) |
Power Output | |
UHF |
1-5 W |
VHF |
1-4W |
Modulation Limiting |
+/- 2.5 kHz @ 12.5 kHz |
+/- 4 kHz @ 20 kHz | |
+/- 5.0 kHz @ 25 kHz | |
FM Hum and Noise |
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
Conducted / Radiated Emission |
-36 dBm < 1 GHz;-30 dBm > 1 GHz |
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
Audio Response |
+1, -3 dB |
Audio Distortion |
3% |
Digital Vocoder Type |
AMBE+2 |
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature |
-30° C / +60° C |
Storage Temperature |
-40° C / +85° C |
Temperature Shock |
Per MIL-STD |
Humidity |
Per MIL-STD |
Water and Dust Intrusion |
IP57, MIL-STD |
GPS |
|
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength) | |
TTFF (Time To First Fix) Cold Start |
< 2 minutes |
TTFF (Time To First Fix) Hot Start |
< 10 seconds |
Horizontal Accuracy |
< 10 meters |
Bluetooth |
|
Version |
Supports Bluetooth? 2.1 + EDR Specification |
Profiles Supported |
Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. |
Devices Supported |
Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
Range |
Class 2, 10 metres |
