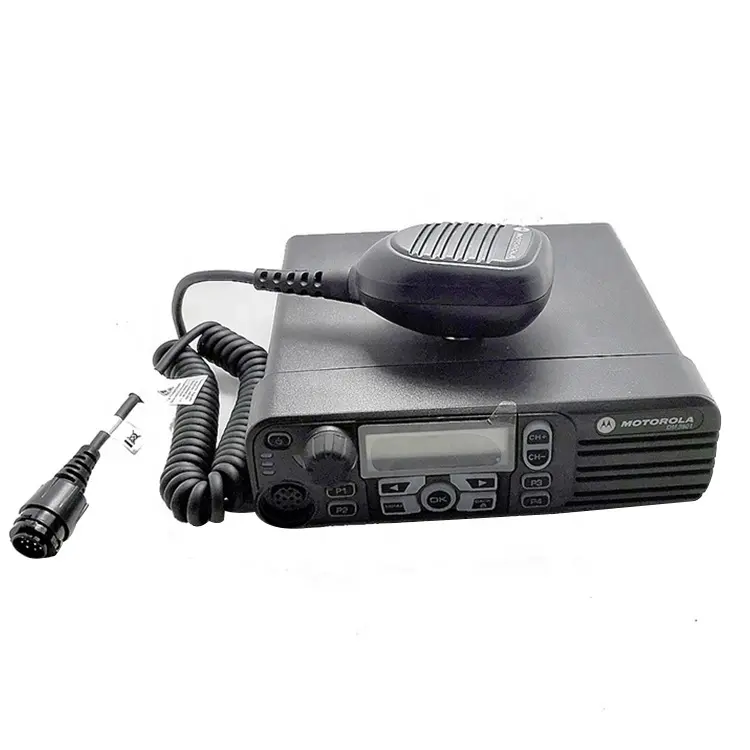

Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601
product detail
1. Features
Display Mobile Radio Standard Package
• Radio with Display Control Head
• Trunnion
• Cabling (power cord)
• Compact Microphone
• Quick Reference Guide
Additional Features
• Enhanced call management Encode/decode: emergency, remote monitor, push-to-talk ID, radio check, all call, radio disable
• DM 3601 can transmit GPS coordinates
• Dual-mode analogue/digital scan-facilitates a smooth migration from analogue to digital
• Short free-form and quick text messaging
• Remote Mount Control Head
• Privacy Options
• VOX capability
• Multiple Site Support (IP Site Connect)
2. Specifications
General Specifications | |
Frequency Range | VHF:136MHz-174MHz |
Memory Channel | 1000 |
Channel Spacing | 12.5/20/25 kHz |
Power Output | 1 - 25W; 25 - 45W |
Power Supply | 13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground |
Dimensions (L×W×H) | 51 x 175 x 206 mm |
Weight | 1.8 kg |
Communication Range | about 10-20km |
Sealing | IP54, MIL-STD |
Dust | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
Transmitter Specifications | |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Modulation Limiting | +/-2.5 kHz @ 12.5 kHz +/- 4 kHz @ 20 kHz +/- 5.0 kHz @ 25 kHz |
FM Hum & Noise | - 40dB @ 12.5kHz; - 45dB @ 20/25kHz |
Conducted/Radiated Emissions | - 36dBm < 1 GHz; - 30dBm < 1 GHz |
Adjacent Channel Power | - 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz |
Receiver Specifications | |
Frequency Stability | +/- 0.5 ppm |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Intermodulation | 70 dB |
Adjacent Channel Selectivity | 60 Db @ 12.5 kHz, 70 dB @ 20/25kHz |
Audio Response | + 1, -3dB |
Digital Vocoder Type | AMBE+2 |
GPS | Yes |
3. Shipping
4. Payment
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
