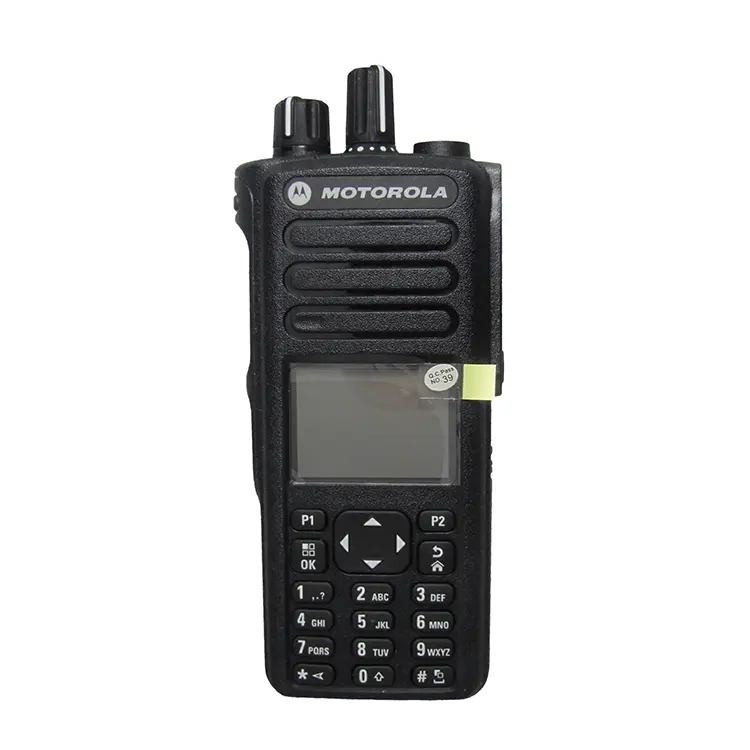

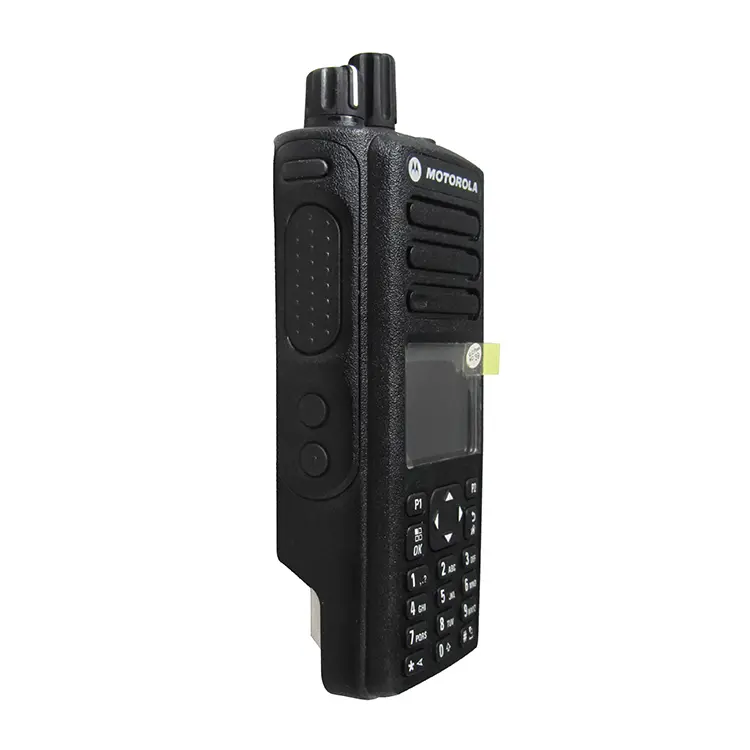

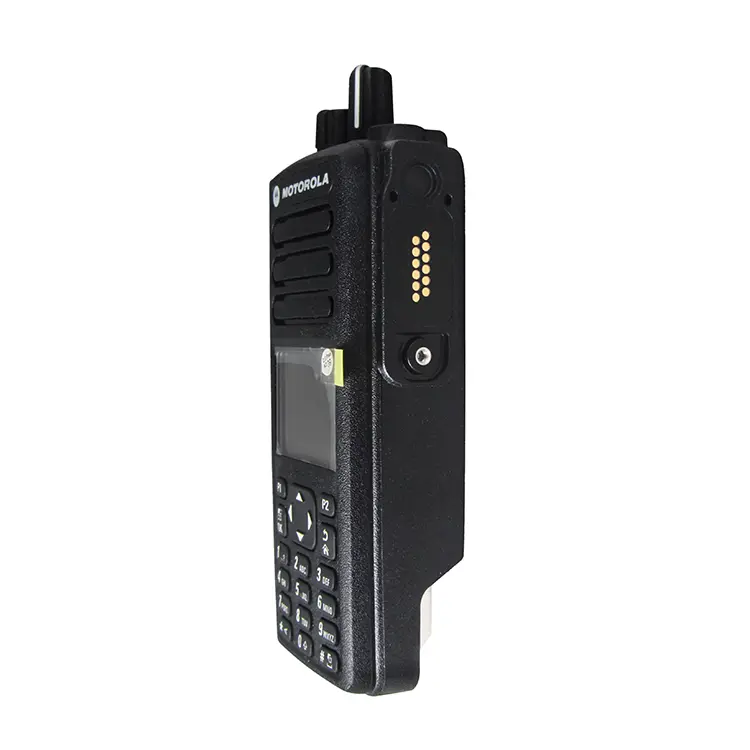

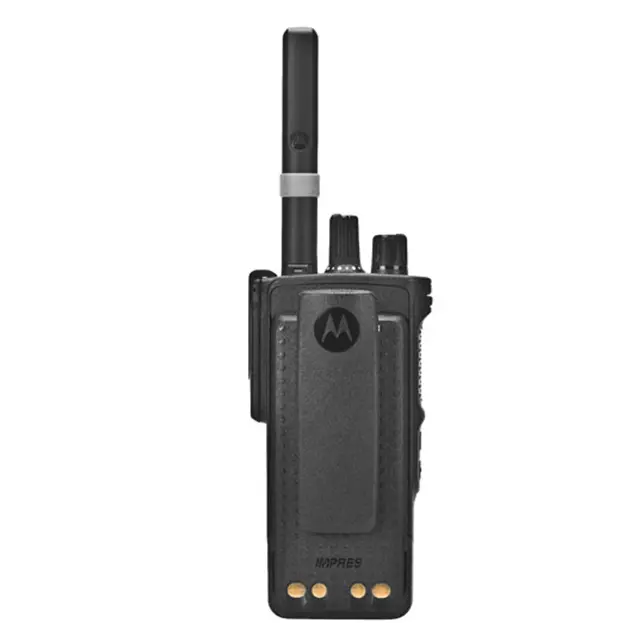

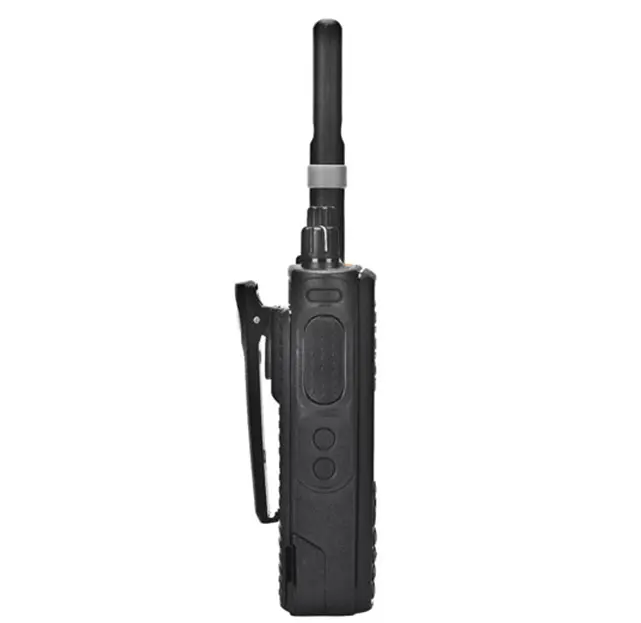

Motorola Digital Two Way Radio for North America region Walkie Talkie XPR7550
product detail
1.Functions
1). Exceptionally Intuitive,Full Colour Display
Features an enhanced 5-line display with a flexible menu-driven interface. Built-in photosensor intuitively adjusts backlighting on the screen to optimize viewing even in broad daylight. Night mode makes the screen easier to read in dark environments.
2). Productivity-enhancing,Data Applications
Features the industry's largest application developer program that offers customized data applications tailored to your business needs: location tracking, work order ticket management, Bluetooth data, email gateways, dispatch and telephony.
3). Best-in-class Audio
Loud front-facing speaker, plus unique features such as Intelligent Audio and Voice Announcement to help you hear and speak clearly wherever your employees work.
4). Covert and Discreet When It Counts
Make discreet communications easier; covert mode turns off the display, visible LEDs and audible tones. Vibrate alert is another option for discreet communications.
5). Expand Capacity and Coverage
Experience the far-reaching coverage of MOTOTRBO.
IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users.
6). Freedom to Move Around
Experience convenient communications with Bluetooth audio embedded in the radio. Take advantage of Motorola's unique Operations Critical Wireless earpieces designed for easy, reliable wireless communications.
7). Share Information,Instantly with Bluetooth Data
Connect wirelessly to Bluetooth data devices making it easy to share information real-time.
8). Increased Efficiency with Work Order Ticket Management
Read and respond to work order tickets at a glance and keep your business running efficiently.
9). Flexible and Easy Text Messaging
Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.
10). Productivity-enhancing Data Applications
Features the industry's largest application developer program that offers customized data applications tailored to your business needs: location tracking, work order ticket management, Bluetooth data, email gateways, dispatch, telephony and man-down.
2.Specifications
GENERAL SPECIFICATIONS | |
Channel Capacity | 1000 |
Frequency | 136-174 MHz 403-527 MHz |
Dimensions (HxWxL) | with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm |
IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm | |
Weight with battery: | with NiMH Battery 1400Mah 425.5 g (15.01 oz) |
IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz) | |
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz) | |
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz) | |
Power Supply | 7.5 V (Nominal) |
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
IMPRES LiIon Std Battery | Analogue: 8 hrs/Digital: 11.8 hrs |
IMPRES LiIon HiCap Battery | Analogue: 11.5 hrs/Digital: 17 hrs |
IMPRES FM LiIon Battery | Analogue: 12.3 hrs/Digital: 18.1 hrs |
NiMH Battery | Analogue: 7 hrs/ Digital: 10.2 hrs |
RECEIVER | |
Frequency | 136-174 MHz;403-527 MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 0.5 ppm |
Analogue Sensitivity | 0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
Digital Sensitivity | 5% BER: 0.3 uV |
Intermodulation | 70 dB |
Adjacent Channel Selectivity | 60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection | 70 dB |
Rated Audio | 500 mW |
Audio Distortion @ Rated Audio | 3% (typical) |
Hum and Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Conducted Spurious Emission | -57 dBm |
TRANSMITTER | |
Frequency | 136-174 MHz;403-512 MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 1.5 ppm (DP3600) |
Power Output | |
UHF | 1-5 W |
VHF | 1-4W |
Modulation Limiting | +/- 2.5 kHz @ 12.5 kHz |
+/- 4 kHz @ 20 kHz | |
+/- 5.0 kHz @ 25 kHz | |
FM Hum and Noise | -40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
Conducted / Radiated Emission | -36 dBm < 1 GHz;-30 dBm > 1 GHz |
Adjacent Channel Power | -60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Audio Distortion | 3% |
Digital Vocoder Type | AMBE+2 |
Digital Protocol | ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature | -30° C / +60° C |
Storage Temperature | -40° C / +85° C |
Temperature Shock | Per MIL-STD |
Humidity | Per MIL-STD |
Water and Dust Intrusion | IP57, MIL-STD |
GPS |
|
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength) | |
TTFF (Time To First Fix) Cold Start | < 2 minutes |
TTFF (Time To First Fix) Hot Start | < 10 seconds |
Horizontal Accuracy | < 10 meters |
Bluetooth |
|
Version | Supports Bluetooth? 2.1 + EDR Specification |
Profiles Supported | Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. |
Devices Supported | Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
Range | Class 2, 10 metres |
