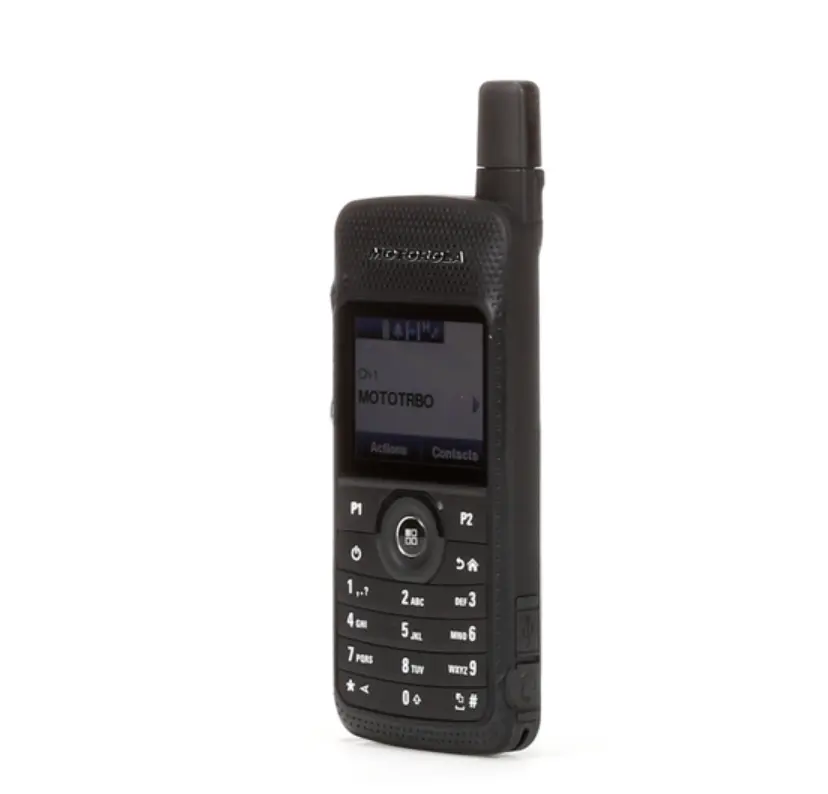

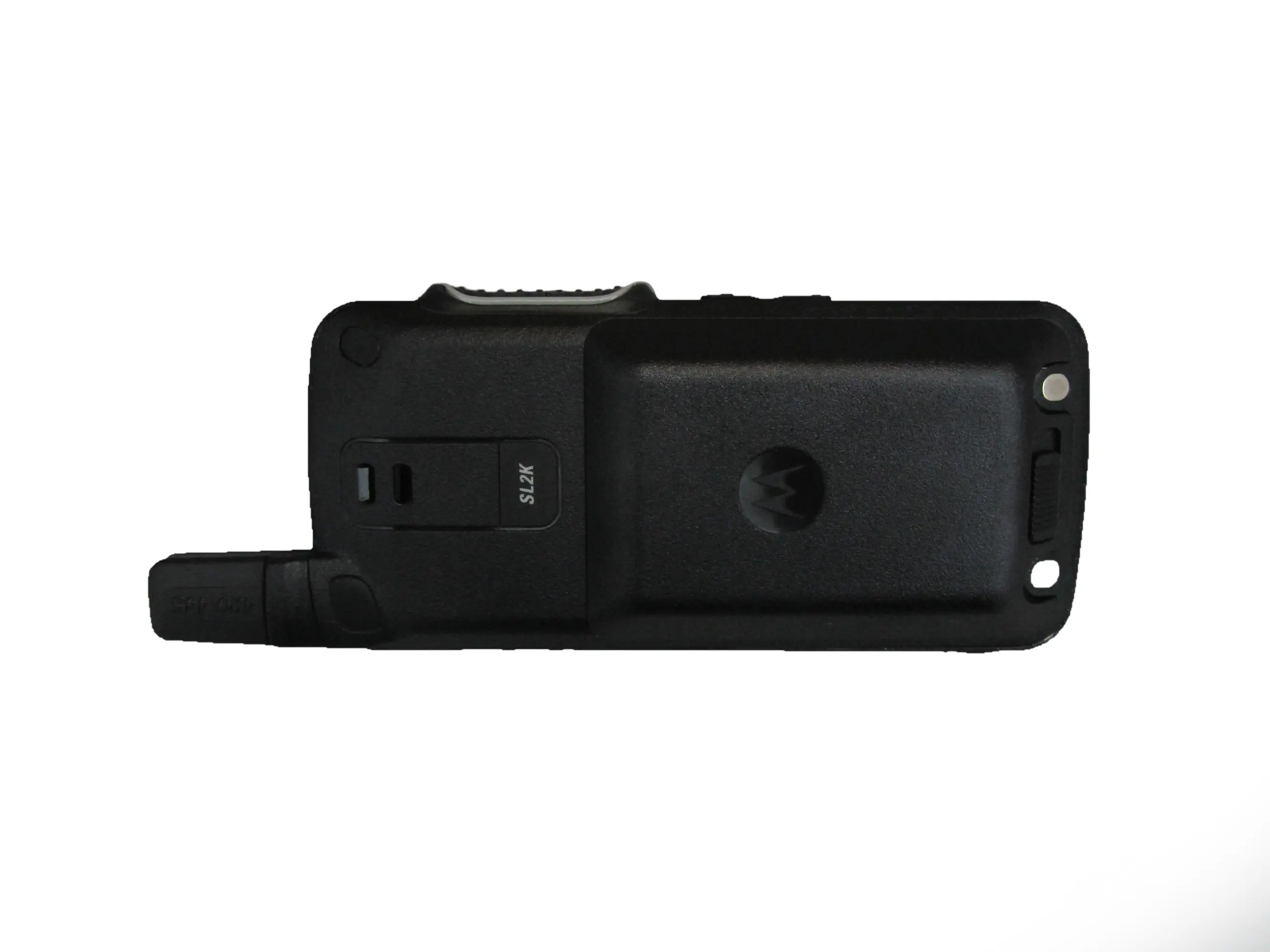

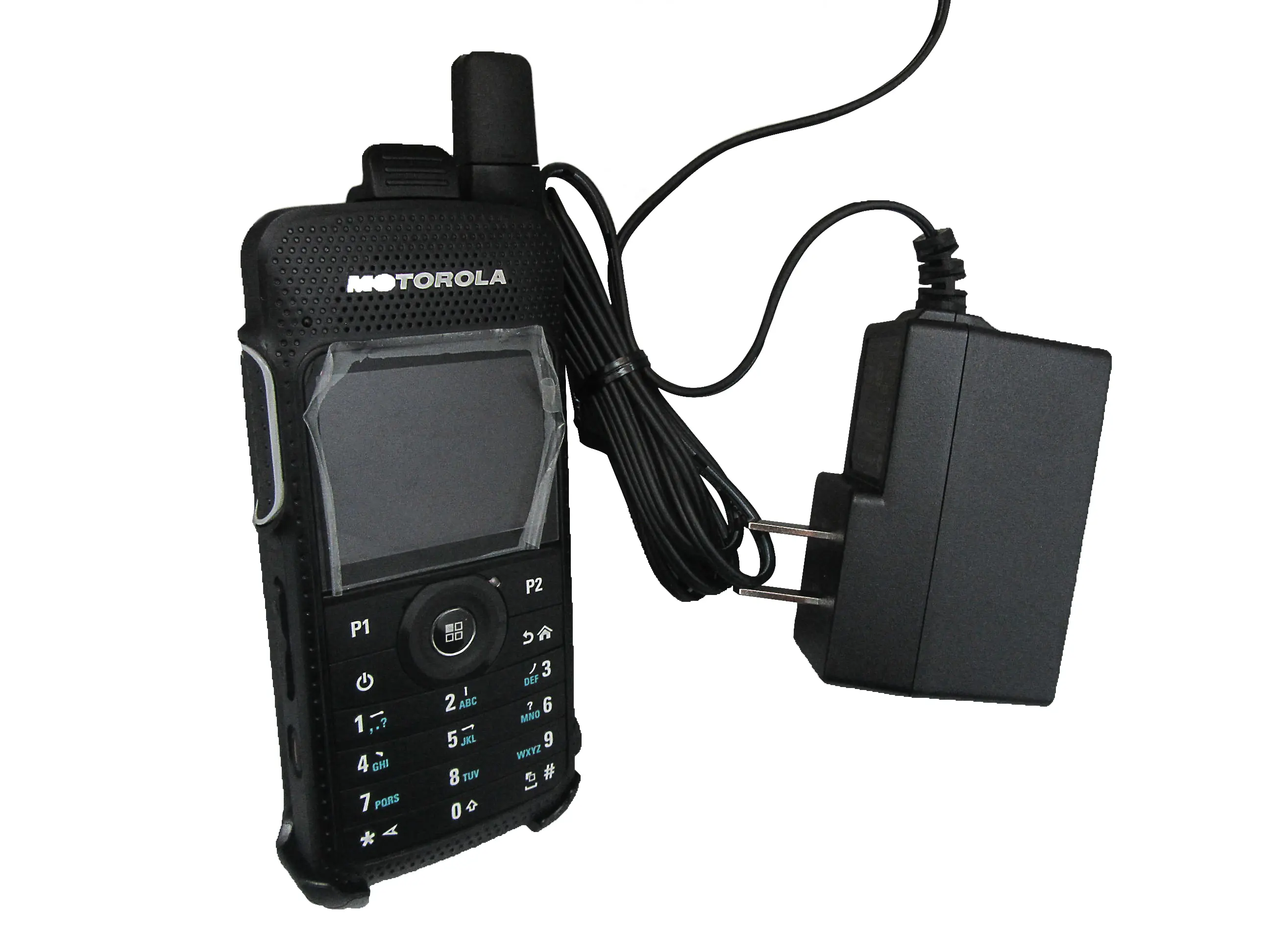

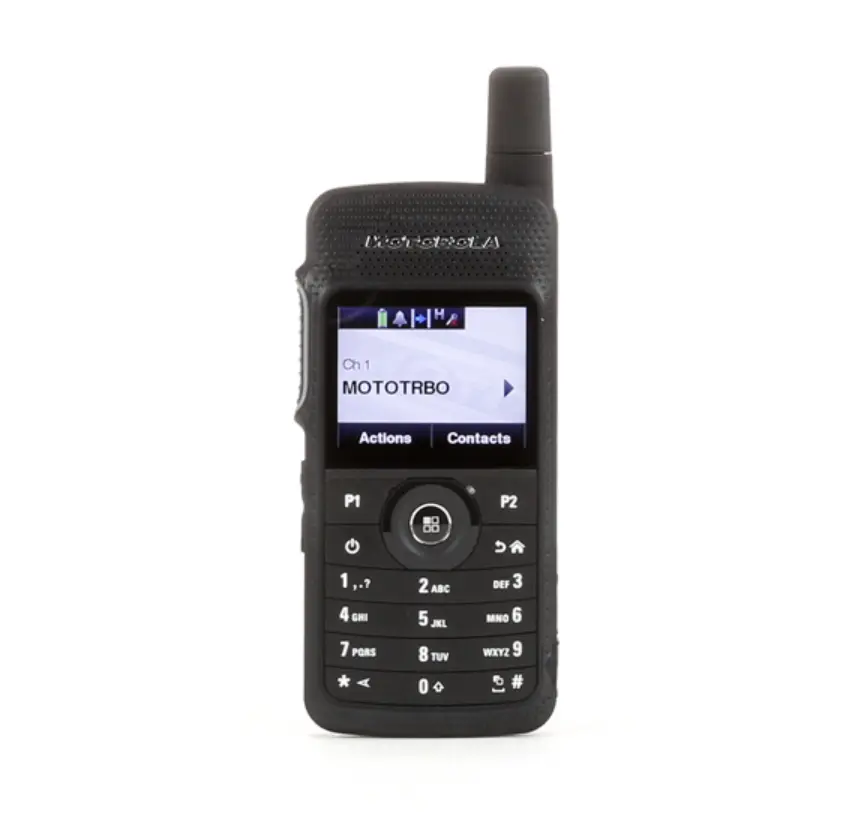

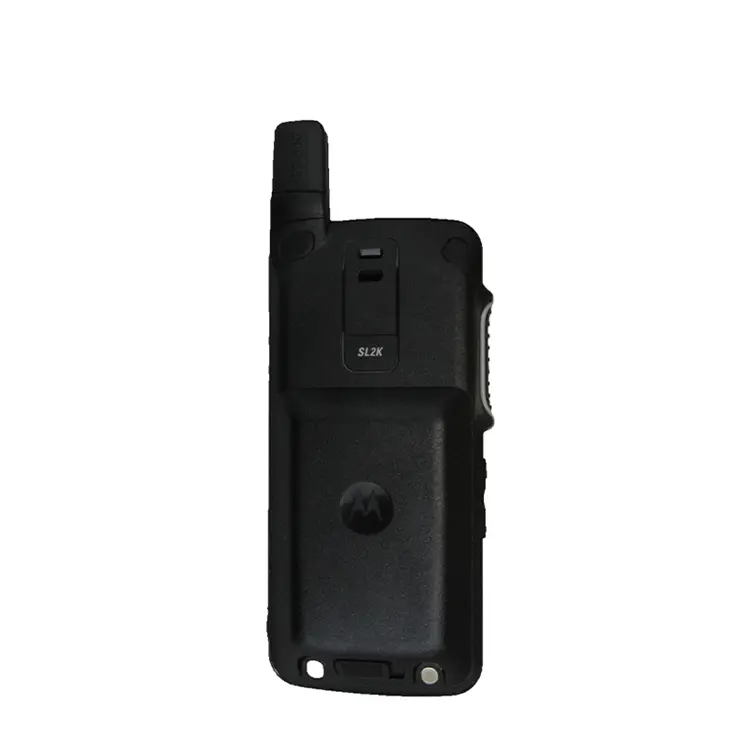

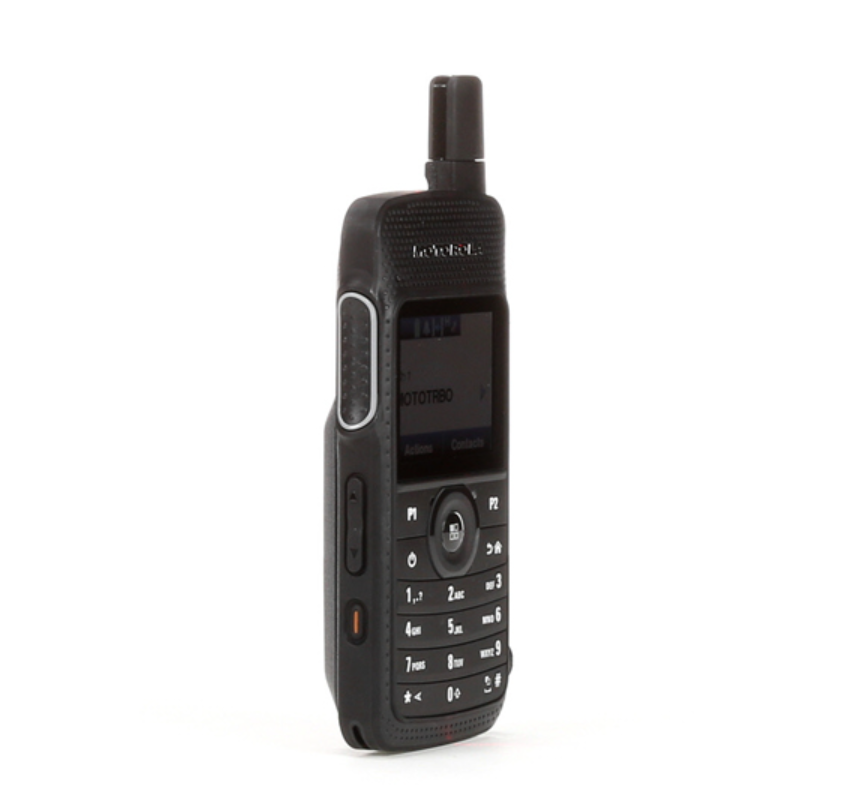

Motorola Digital Slim Walkie Talkie Mototrbo UHF Radio SL2K
product detail
1. Features
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re smarter, better connected and more productive. The SL2K Series is designed for the manager who needs complete control. With a slim and light form factor incorporating high performance integrated voice and data, these next-generation radios deliver smart connectivity to your organisation.
SMART
The MOTOTRBO SL2K Series is a family of DMR-standard slim and light portable radios that connects you with sophistication. Pocketsized and with a smooth outline, the radios feature a full keypad and 5-line colour screen with customisable display schemes. A built-in vibrate function alerts you quietly when you need to be discreet, and a comprehensive range of audio accessories allows you to stay connected without disturbing your customers.
CONNECTED
With integrated voice and data, the SL2K Series delivers operationscritical communications. Bluetooth® lets you talk without wires, while also enabling precise indoor location-tracking. Powerful audio and advanced noise cancellation ensure your call is heard, even in noisy environments, and 280-character text messaging simplifies complex communications. Integrated Wi-Fi enables remote software updates.
PRODUCTIVE
With a clear user interface designed to support productivity applications such as Work Order Ticketing, the SL2K Series helps your staff make the most of their work day. Voice Announcement and Text-to-Speech features allow you to monitor radio settings and text communications hands-free, and sophisticated scan functions keep you in touch with many teams at once.
WHAT’S NEW IN THESE NEXT GENERATION RADIOS
• Integrated accelerometer for optional Man Down
• Bluetooth® 4.0
• Indoor location tracking
• Integrated Wi-Fi
• Over-the-air software updates
• Upgraded audiofor greater clarity at high volume
• Improved expandability
• Increased UHF transmitterpower, for greater range
2. Specifications
GENERAL SPECIFICATIONS | |
Channel Capacity | 1000 |
Frequency | 403-470 MHz; 450-512 MHz; 806-825 MHz, 851-870MHz |
Dimensions (HxWxL) | 121 x 55 x 23 mm |
Weight with battery: | 174 g |
Power Supply | 3.7 V (Nominal) |
Battery Life, Standard 2200 mAh Battery1 | 13.5 hrs |
RECEIVER | |
Frequency | 403-470 MHz; 450-512 MHz; 806-825 MHz, 851-870MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 0.5 ppm |
Analogue Sensitivity | 0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
Digital Sensitivity | 5% BER: 0.3 uV |
Intermodulation | 70 dB |
Adjacent Channel Selectivity | 60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
Spurious Rejection | 70 dB |
Rated Audio | 500 mW |
Audio Distortion @ Rated Audio | 3% (typical) |
Hum and Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Conducted Spurious Emission | -57 dBm |
TRANSMITTER | |
Frequency | 136-174 MHz;403-512 MHz |
Channel Spacing | 12.5 kHz/ 20/25 kHz |
Frequency Stability | +/- 1.5 ppm (DP3600) |
Power Output | |
UHF | 1-5 W |
VHF | 1-4W |
4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
FM Hum and Noise | -40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
Conducted / Radiated Emission | -36 dBm < 1 GHz;-30 dBm > 1 GHz |
Adjacent Channel Power | -60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
Audio Response | +1, -3 dB |
Audio Distortion | 3% |
Digital Vocoder Type | AMBE+2 |
Digital Protocol | ETSI-TS 102 361-1, 2 & 3 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature | -30° C / +60° C |
Storage Temperature | -40° C / +85° C |
Temperature Shock | Per MIL-STD |
Humidity | Per MIL-STD |
Water and Dust Intrusion | IP57, MIL-STD |
Bluetooth
| |
Version | 4.0 |
Profiles Supported | Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. (SPP), Motorola fast push-to-talk. |
Devices Supported | Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
Range | Class 2, 10 m |
Wi-Fi SPECIFICATIONS |
|
Standards Supported | IEEE 802.11b, 802.11g, 802.11n |
Security Protocol Supported | WPA, WPA-2, WEP |
Maximum Number of SSIDs | 128 |
