Motorola apx7000 antenna

Frequency Range: Multi-band coverage including VHF (136-174 MHz), UHF (403-512 MHz), 700 MHz (764-870 MHz), and 800 MHz (806-870 MHz)
Type: Whip antenna (standard, high-gain, or stubby variants available)
Length: ~8.5 inches (21.6 cm) standard; ~12 inches (30.5 cm) high-gain; ~2.5 inches (6.4 cm) stubby
Power Handling: Up to 5W
Impedance: 50 ohms
VSWR: ≤2.0:1 (typical across all bands)
Gain: ~1.5-2.0 dBi (standard); ~3.0-5.0 dBi (high-gain); ~1.0 dBi (stubby)
Connector Type: SMA male
Material: Flexible rubberized casing with multi-element internal core
Compatibility: Exclusively designed for Motorola APX 7000 portable radios (Phase 1/Phase 2)

product details

product description

Function Introduction

Multi-Band Coverage

Operates across VHF (136–174 MHz), UHF (403–512 MHz), 700 MHz, and 800 MHz, eliminating the need for multiple antennas for 2 Way Radios. This versatility surpasses single-band Radio Walkie Talkie antennas, simplifying fleet management.

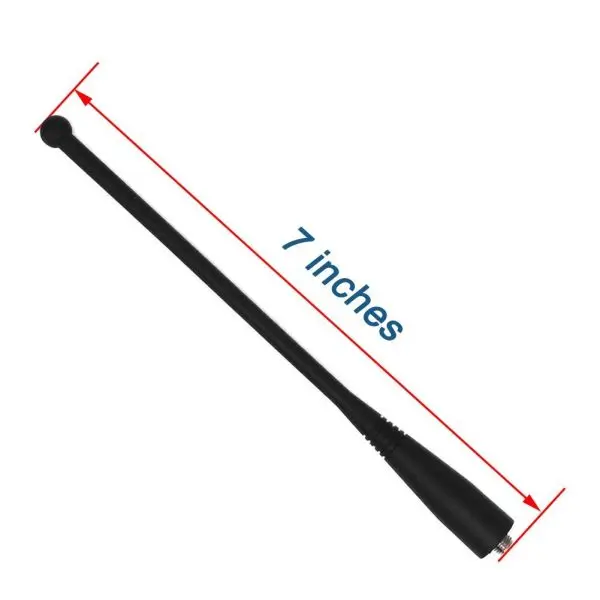

3PCs-806-870MHz-Antenna-for-Motorola-Radio-APX4000-APX7000-APX6000-XTS3500-XTS4250-HT6000-PTX1200-MT2100-MTS2000-1-600x600

APX7000 Optimization

Exclusively tuned for APX7000 2 Way Radios, ensuring a secure SMA fit and peak efficiency. This precision avoids signal loss common with ill-fitting Radio Walkie Talkie antennas, critical for life-saving communications.

Walkie-UHF-PMAE4048-450-470-GPS-Antenna-for-Motorola-Radio-APX7000-XPR6350-DGP6150-XTS5000-XTS3000-1

Gain Options

Choose 8.5" standard (~1.5–2.0 dBi), 12" high-gain (~3.0–5.0 dBi), or 2.5" stubby (~1.0 dBi) to match 2 Way Radios needs— from extended rural range to indoor portability. This flexibility outperforms fixed-design Radio Walkie Talkie antennas.

Product Parameters

Dimension	~8.5 inches (21.6 cm) standard; ~12 inches (30.5 cm) high-gain; ~2.5 inches (6.4 cm) stubby
Frequency Range	Multi-band coverage including VHF (136-174 MHz), UHF (403-512 MHz), 700 MHz (764-870 MHz), and 800 MHz (806-870 MHz)
Type	Whip antenna
Power Handling	Up to 5W
Impedance	50 ohms
VSWR	≤2.0:1
Gain	~1.5-2.0 dBi (standard); ~3.0-5.0 dBi (high-gain); ~1.0 dBi (stubby)
Connector Type	SMA male
