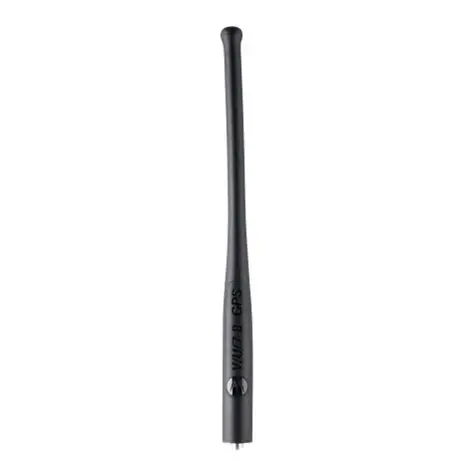

Motorola AN000342A01 All-Band Antenna

Frequency Range: 764-870 MHz, 136-174 MHz, 403-512 MHz (tri-band coverage)
Type: Whip antenna with multi-band capability
Length: Approximately 8.5 inches (21.6 cm)
Power Handling: Up to 5W
Impedance: 50 ohms
VSWR: ≤2.0:1 (typical across all bands)
Gain: ~1.5 dBi (VHF/UHF), ~2.0 dBi (700/800 MHz)
Connector Type: SMA male
Material: Flexible rubber casing with internal multi-element core
Compatibility: Designed for Motorola APX series radios

product details

product description

Function Introduction

Tri-Band Coverage

Tuned for 136–174 MHz (VHF), 403–512 MHz (UHF), and 764–870 MHz, eliminating the need for multiple antennas for 2 Way Radios. This versatility surpasses single-band Radio Walkie Talkie antennas, simplifying fleet management.

AN000342A01 Performance

Optimized gain (~1.5–2.0 dBi) balances range across all bands, ensuring reliable transmission for 2 Way Radios in urban, rural, or indoor settings. This consistency outshines band-specific Radio Walkie Talkie antennas, reducing dead zones.

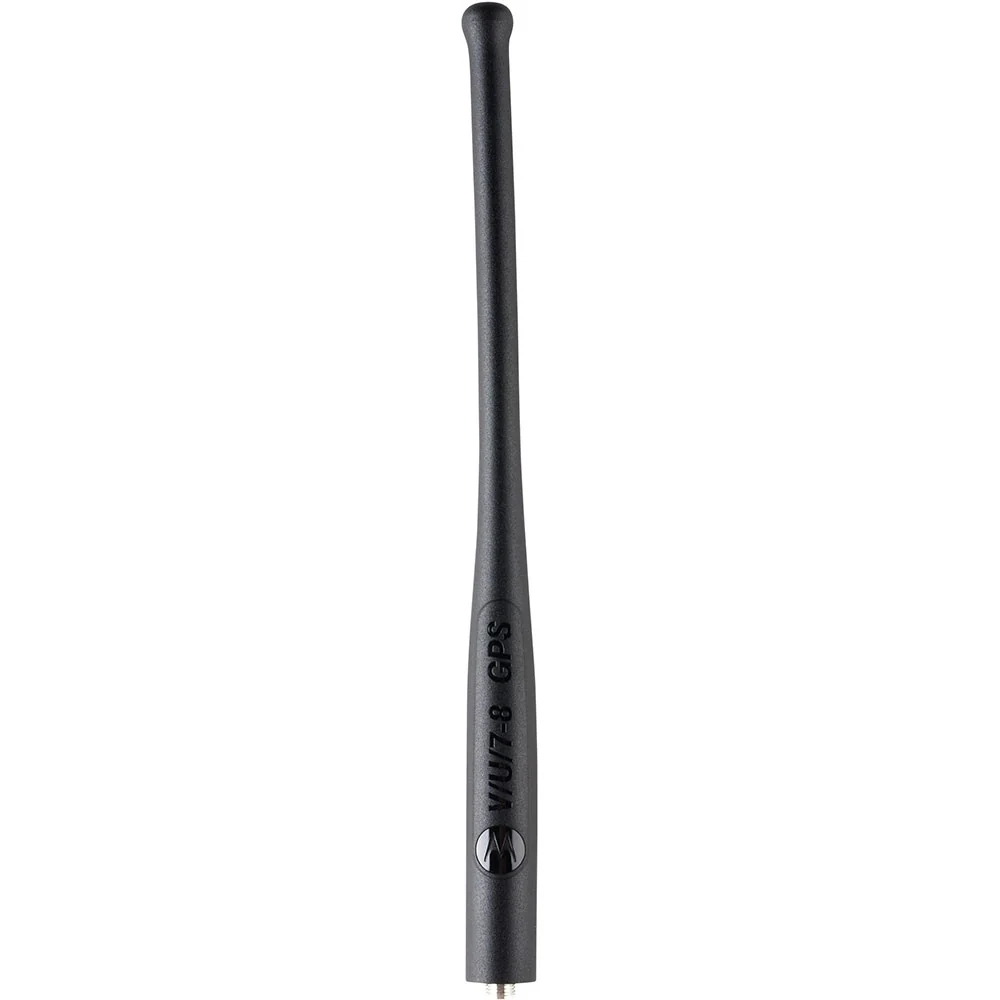

Motorola AN000342A01 All-Band Antenna - APX 8000

APX Series Compatibility

Designed for Motorola APX 6000/7000 2 Way Radios, ensuring a secure SMA fit and maximum efficiency. This precision avoids signal loss common with ill-fitting Radio Walkie Talkie antennas, critical for mission-critical operations.

Product Parameters

Dimension	8.5 inches (21.6 cm)
Frequency Range	764-870 MHz, 136-174 MHz, 403-512 MHz (tri-band coverage)
Type	Whip antenna with multi-band capability
Power Handling	Up to 5W
Impedance	50 ohms
VSWR	≤2.0:1
Gain	~1.5 dBi (VHF/UHF), ~2.0 dBi (700/800 MHz)
Connector Type	SMA male
