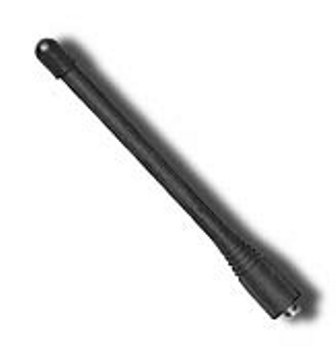

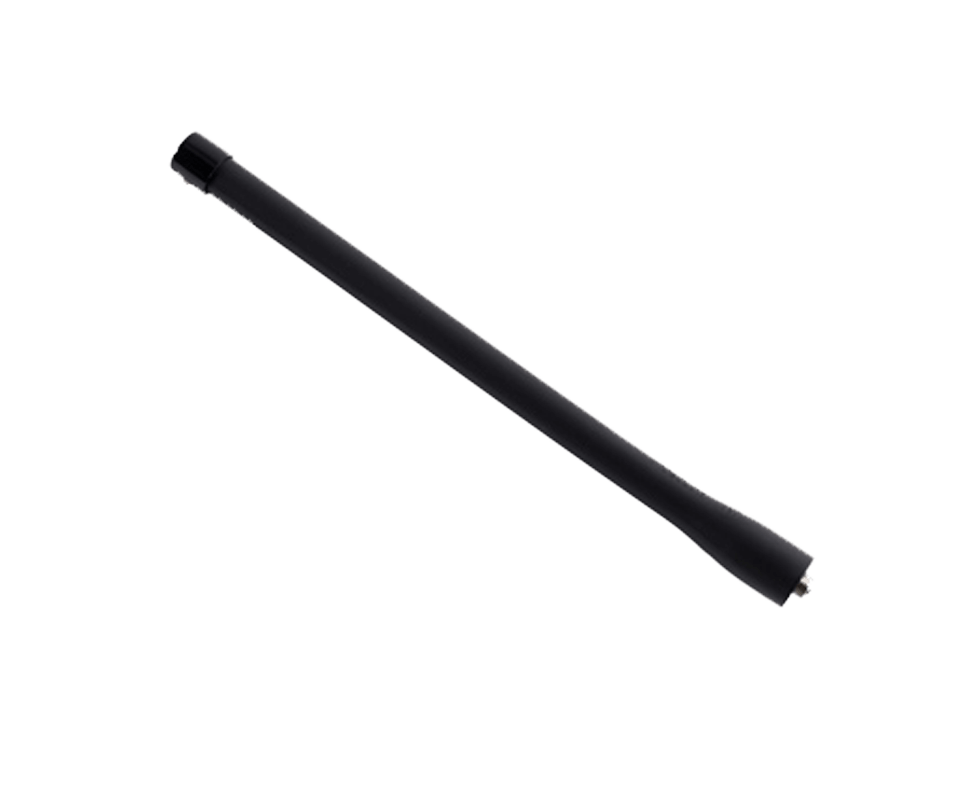

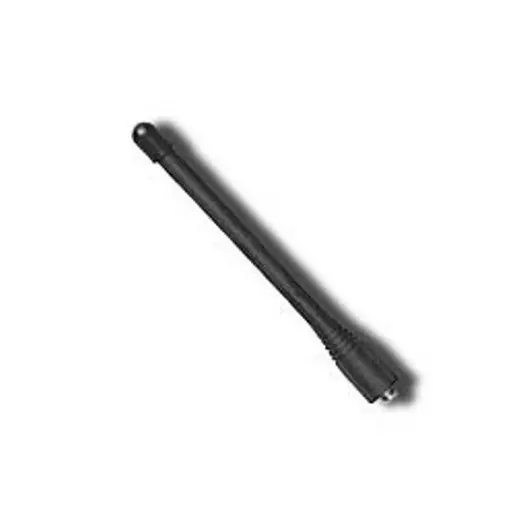

Motorola 8505834w02 antenna

Frequency Range: VHF (136-174 MHz)
Type: Portable whip antenna
Length: Approximately 10 inches (25.4 cm)
Power Handling: Up to 5 watts
Impedance: 50 ohms
VSWR: ≤2.0:1 (typical within operating band)
Gain: ~2.5 dBi
Connector Type: BNC male
Material: Flexible rubber casing with internal copper core
Compatibility: Designed for Motorola VHF portable 2-way radios, including GP300, GP68, and SP50 series

product details

product description

Function Introduction

VHF 136–174 MHz Optimization

Tuned for this critical band, maximizing signal propagation for 2 Way Radios in open terrains and large facilities. This precision minimizes interference, outperforming multi-band options for Radio Walkie Talkie users needing long-distance clarity.

8505834w02 Balanced Design

At 10 inches with 2.5 dBi gain, it combines extended range with maneuverability— ideal for 2 Way Radios users requiring coverage across job sites, campuses, or event grounds without excessive bulk. This profile avoids snagging while boosting signal strength, a key advantage over stubbier Radio Walkie Talkie antennas.

5W Power Handling

Supports the maximum output of compatible 2 Way Radios (including GP300, GP68, SP50 series), maintaining stability during prolonged use. This durability prevents drop-offs, critical for Radio Walkie Talkie communications in all-day operations.

Product Parameters

Dimension	10 inches (25.4 cm)
Frequency Range	VHF (136-174 MHz)
Type	Portable whip antenna
Power Handling	Up to 5 watts
Impedance	50 ohms
VSWR	≤2.0:1
Gain	~2.5 dBi
Connector Type	BNC male
