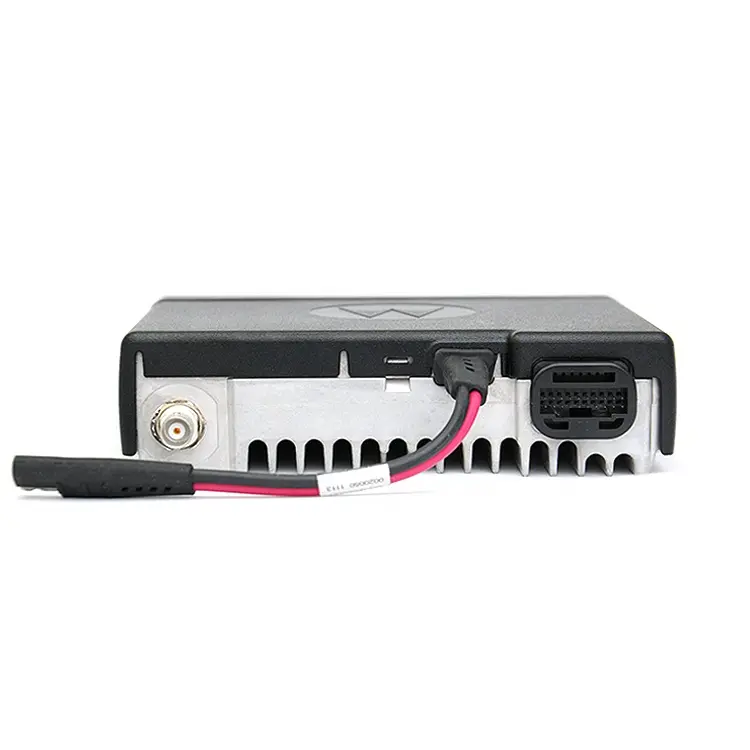

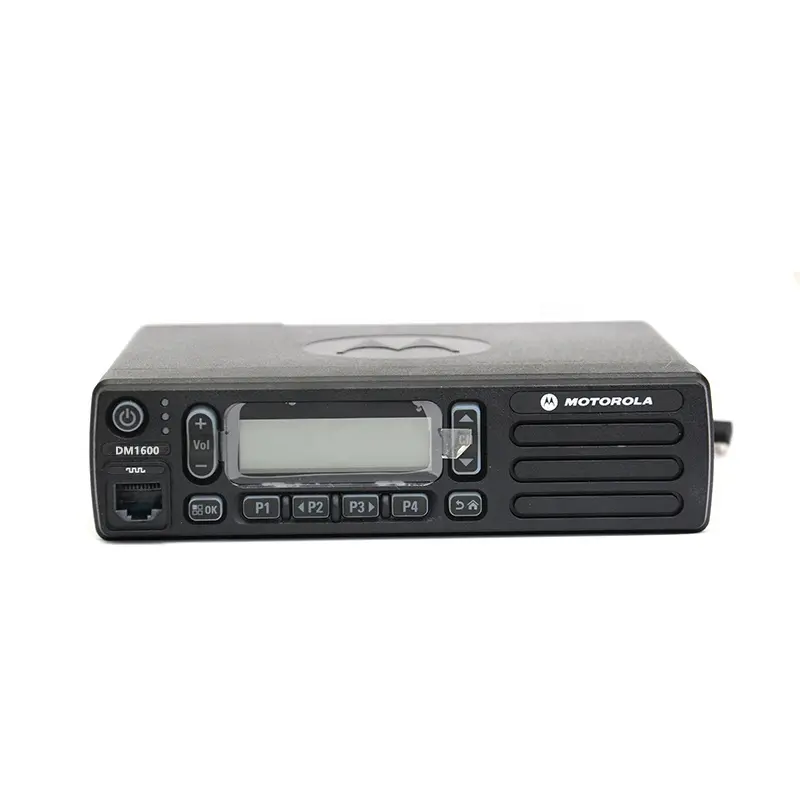

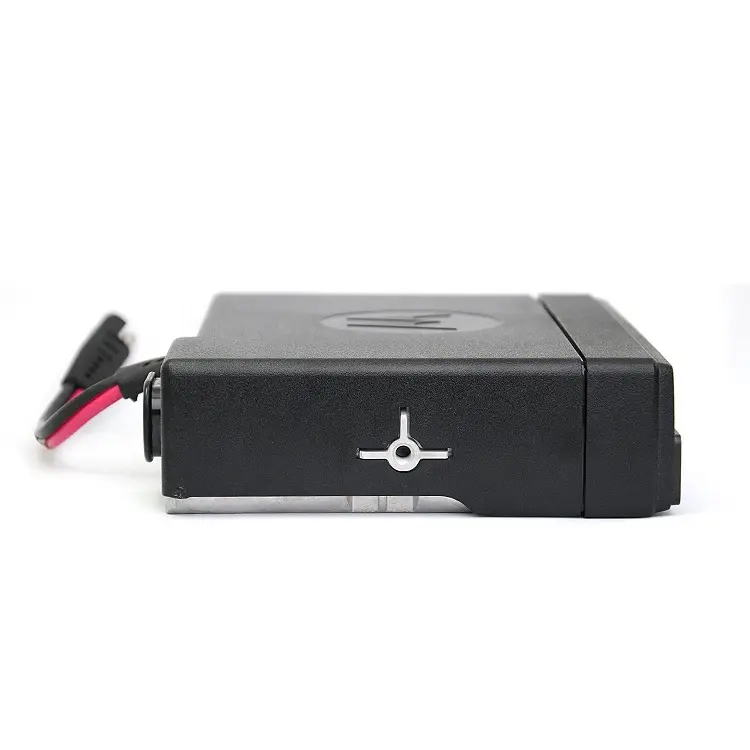

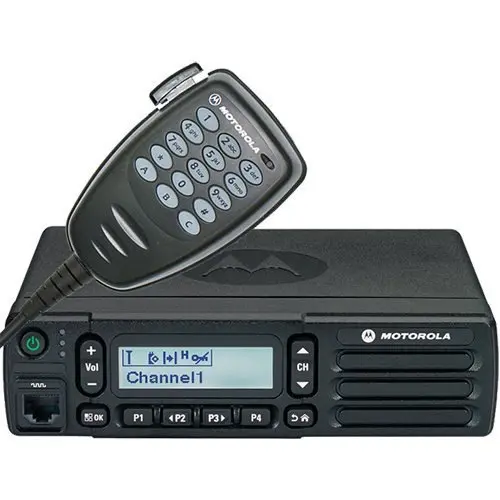

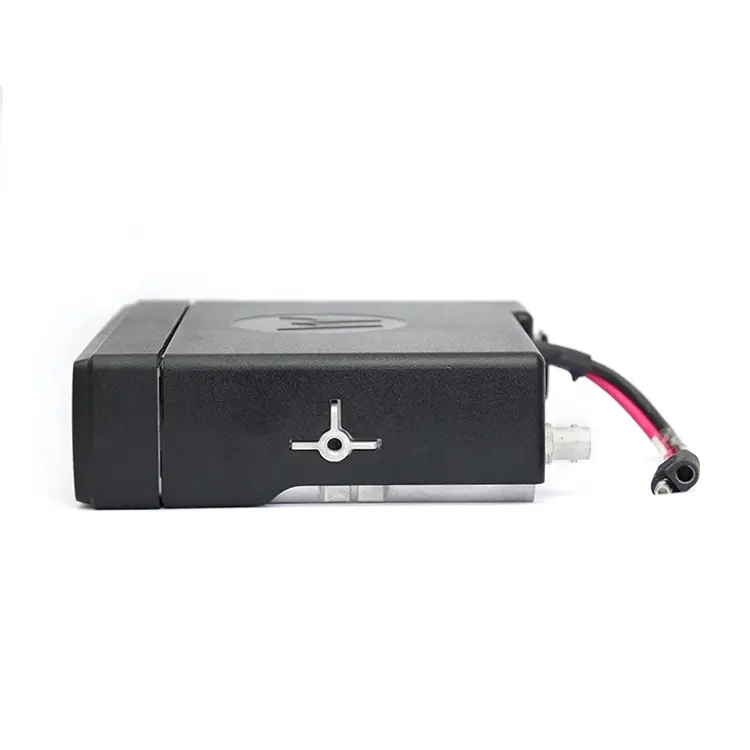

Mobile Vehicle Mototrbo Radio Motorola DM1600
product detail
1. Features
The rugged MOTOTRBO DM1400 and DM1600 are available as analog/digital mobile radios that offer all the benefits of the latest technology – from superior audio to greater coverage. These affordable performers are compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritize critical communications.
With its bright, high contrast alphanumeric screen, the DM1600 allows drivers to see important information such as caller Id at a glance. The DM1400 offers lower capacity and a simpler numeric display.
The DM1400 and DM1600 are so easy to use and deliver such clear voice communications, you’ll be amazed how efficient your operation can be.
FEATURES
• Analogue / digital
• Voice Communications
• Canned Text Message
• Dual Capacity direct Mode
• Transmit Interrupt (decode only)
• Voice announcement
• Alphanumeric display (DM1600)
• Digital Mobile Radio (DMR) Standards Compliant
• IP54 Rated
OPTIONS • Radio Management Suite
2. Specifications
General Specifications | |
Frequency Range |
VHF:136MHz-174MHz |
Memory Channel |
160 |
Channel Spacing |
12.5/20/25 kHz |
Power Output |
1 - 25W; 25 - 45W |
Power Supply |
13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground |
Dimensions (L×W×H) |
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm) |
Weight |
2,9 Ibs (1.3 kg) |
Communication Range |
about 10-20km |
Sealing |
IP54, MIL-STD |
Dust |
Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
Transmitter Specifications | |
Channel Spacing |
12.5 kHz / 25 kHz |
Modulation Limiting |
± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz |
FM Hum & Noise |
-40 dB @ 12.5 kHz / -45 dB @ 25 kHz |
Conducted/Radiated Emissions |
-36 dBm < 1 GHz / -30 dBm > 1 GHz |
Adjacent Channel Power |
60 dB @ 12.5 kHz / 70 dB @ 25 kHz |
Receiver Specifications | |
Frequency Stability |
+/- 0.5ppm |
Channel Spacing |
12.5 kHz / 25 kHz |
Intermodulation |
70 dB |
adjacent Channel Selectivity (TIa603d) |
50 dB @ 12.5 kHz 75 dB @ 20/25kHz |
Audio Response |
+ 1, -3dB |
Digital Vocoder Type |
AMBE +2™ |
Digital Protocol |
ETSI TS 102 361-1, -2, -3 |
