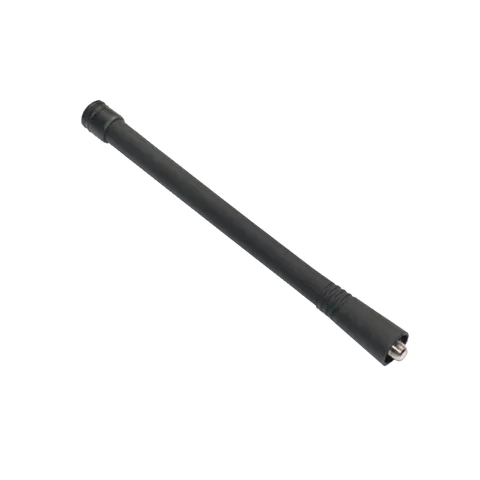

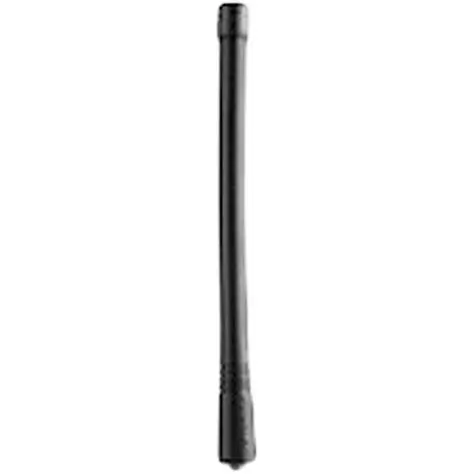

Antenne LB 29.7-50MHz NAB6064B

Frequency Range: 29.7-50 MHz (VHF low band)
Type: Base station antenna
Gain: Typically 3.0 dBi
Power Handling: Up to 100W
Impedance: 50 ohms
VSWR: ≤1.5:1 (within operating range)
Polarization: Vertical
Connector Type: N-type female
Material: Fiberglass radome with copper elements
Mounting: Compatible with standard 1.5-inch mast mounts

product details

product description

Function Introduction

VHF Low-Band Optimization

Tuned exclusively for 29.7–50MHz, maximizing signal propagation for 2 Way Radios across vast rural areas or challenging terrains. This precision outperforms multi-band alternatives, minimizing interference for Radio Walkie Talkie networks requiring long-distance clarity.

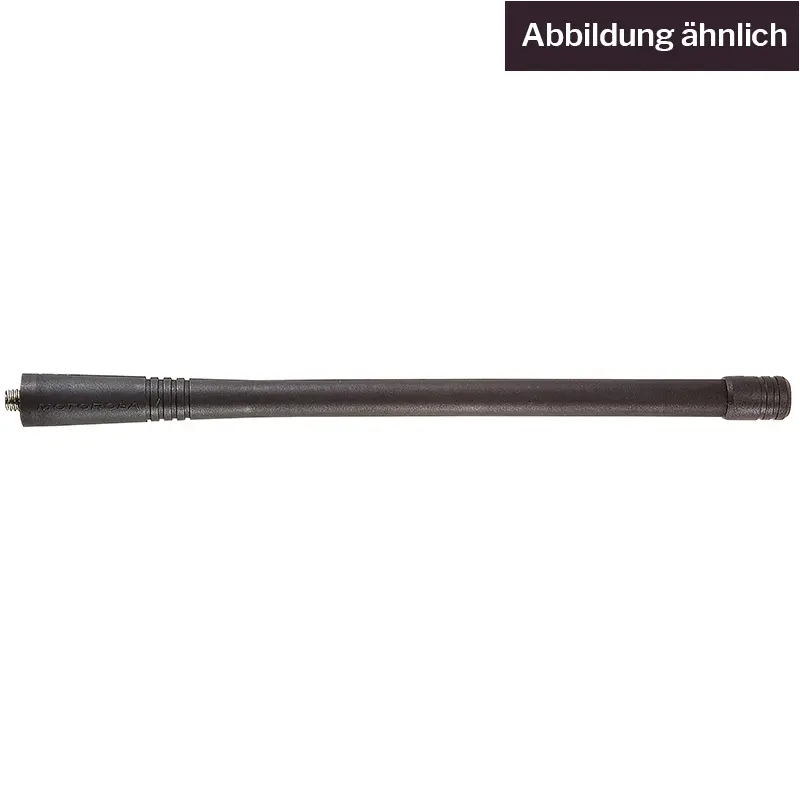

nab6064b-motorola-solutions-30-cm-antenne-low-band-29-750-mhz-anetenna-abbildung-aehnlich

NAB6064B High Gain (3.0 dBi)

Significantly extends coverage for 2 Way Radios, critical for connecting teams spread across remote regions. This performance surpasses low-gain antennas, eliminating dead zones in vital Radio Walkie Talkie communications for emergency or utility fleets.

100W Power Handling

Supports high-output base stations, maintaining stability during prolonged use— ideal for 2 Way Radios networks requiring constant, high-power transmission. This durability prevents drop-offs, a key advantage over underrated Radio Walkie Talkie antennas in 24/7 operations.

Product Parameters

Frequency Range	29.7-50 MHz (VHF low band)
Type	Base station antenna
Gain	Typically 3.0 dBi
Power Handling	Up to 100W
Impedance	50 ohms
VSWR	≤1.5:1
Polarization	Vertical
Connector Type	N-type female
