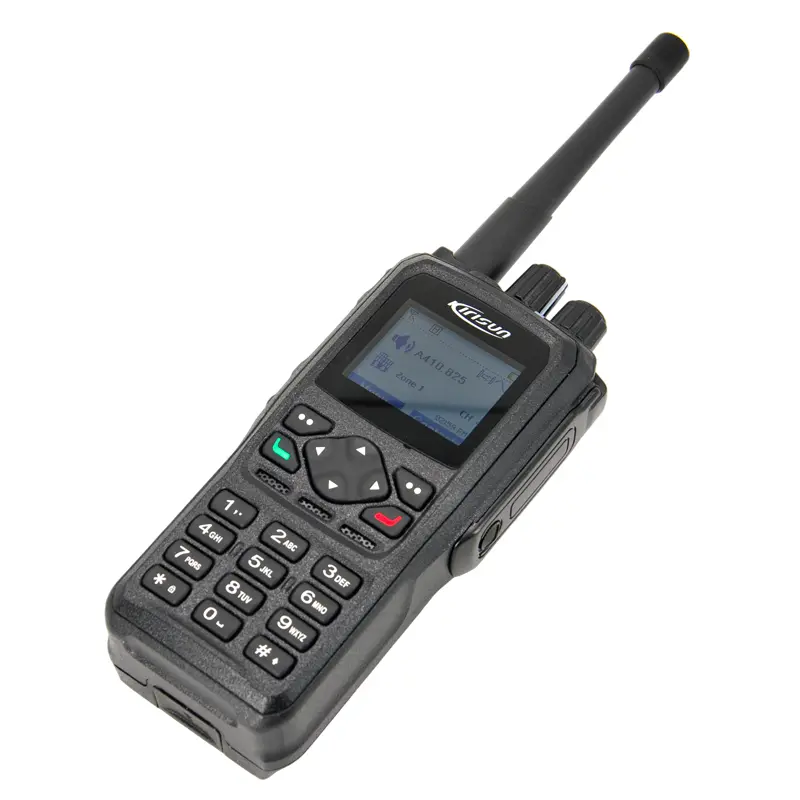

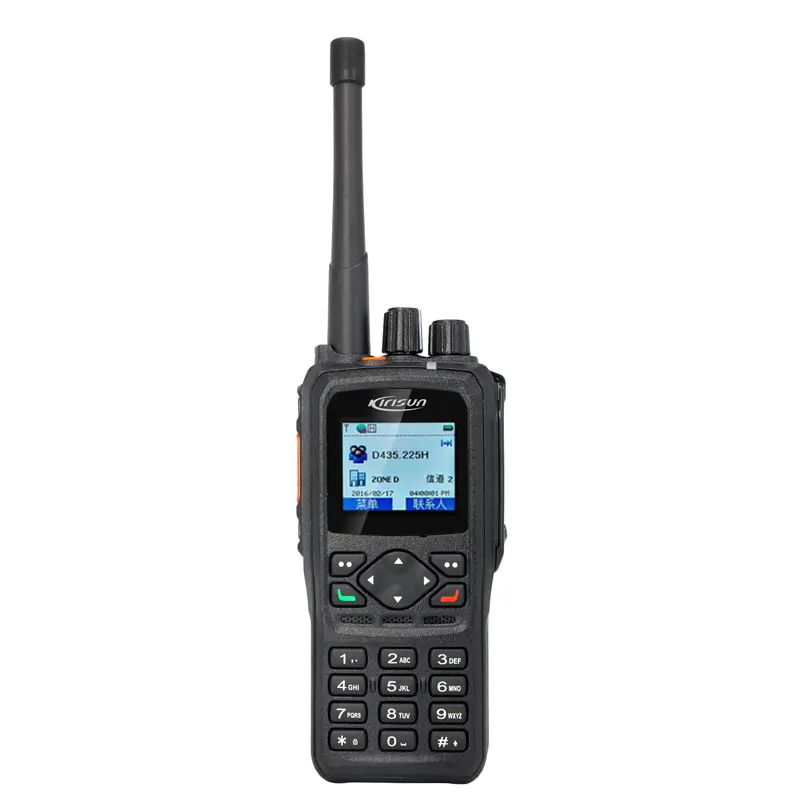

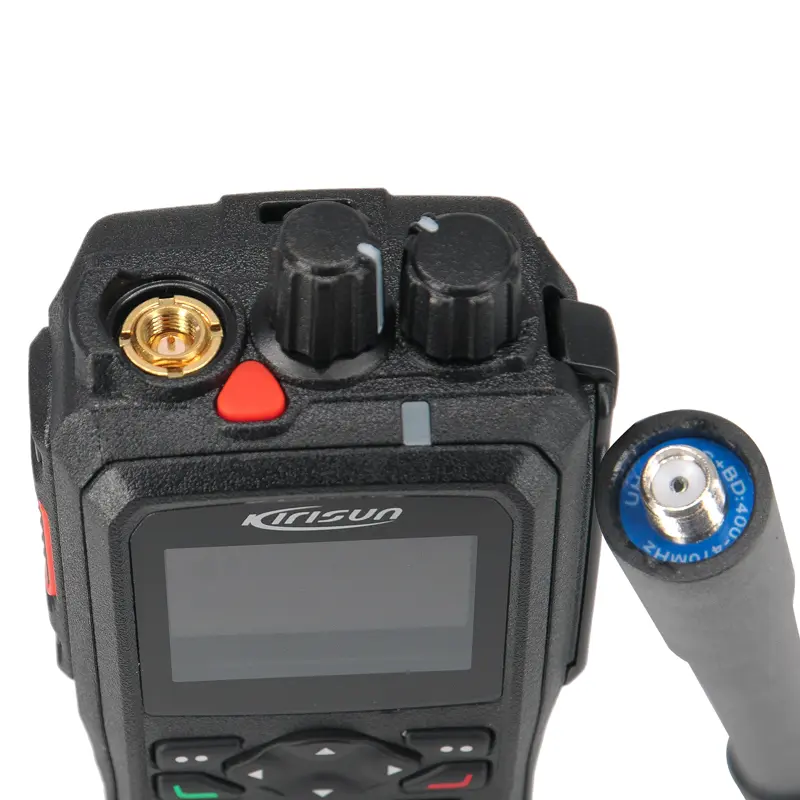

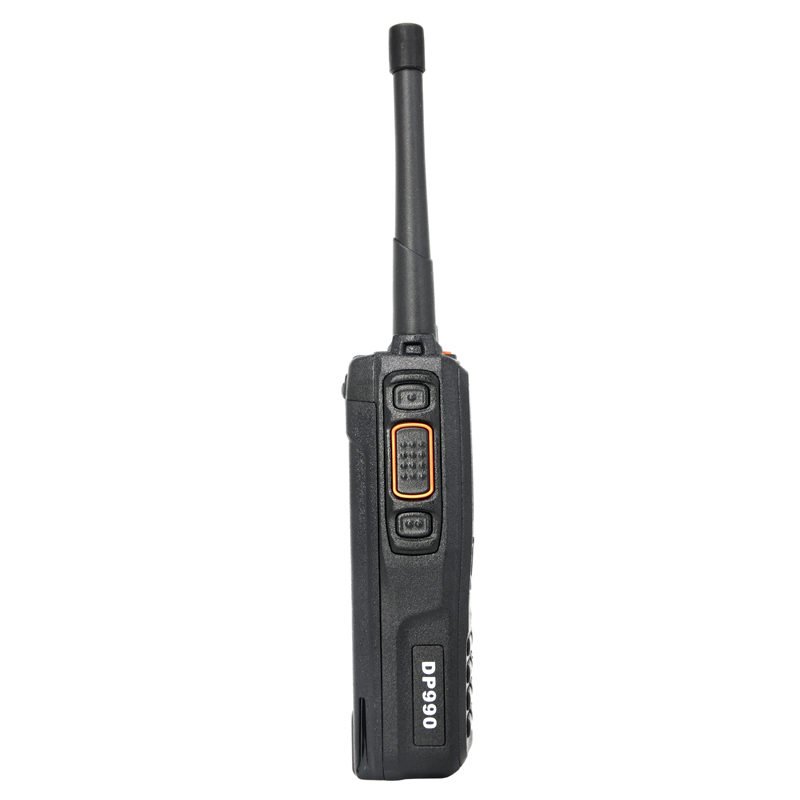

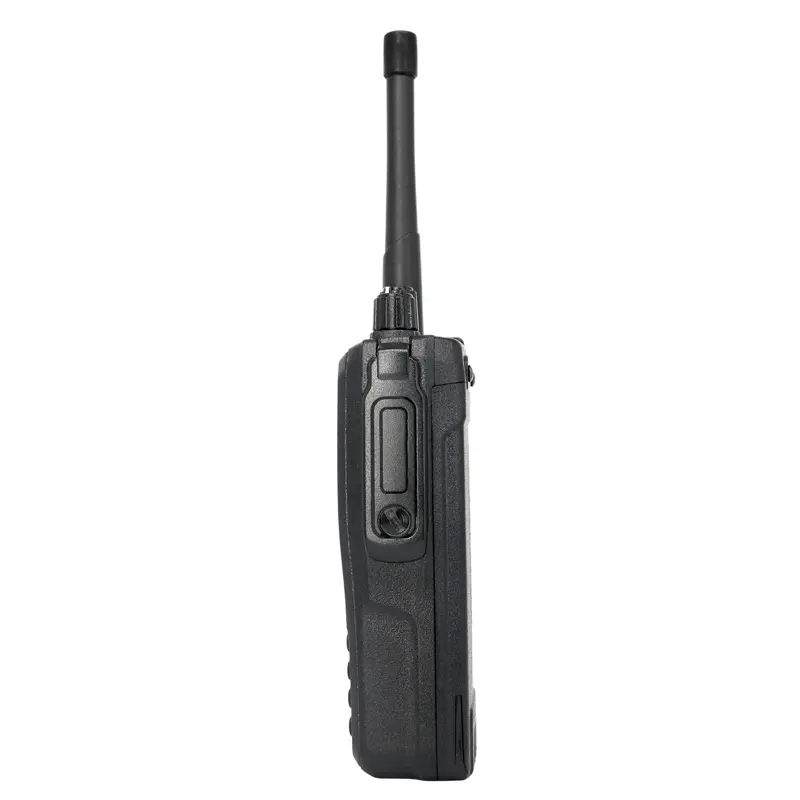

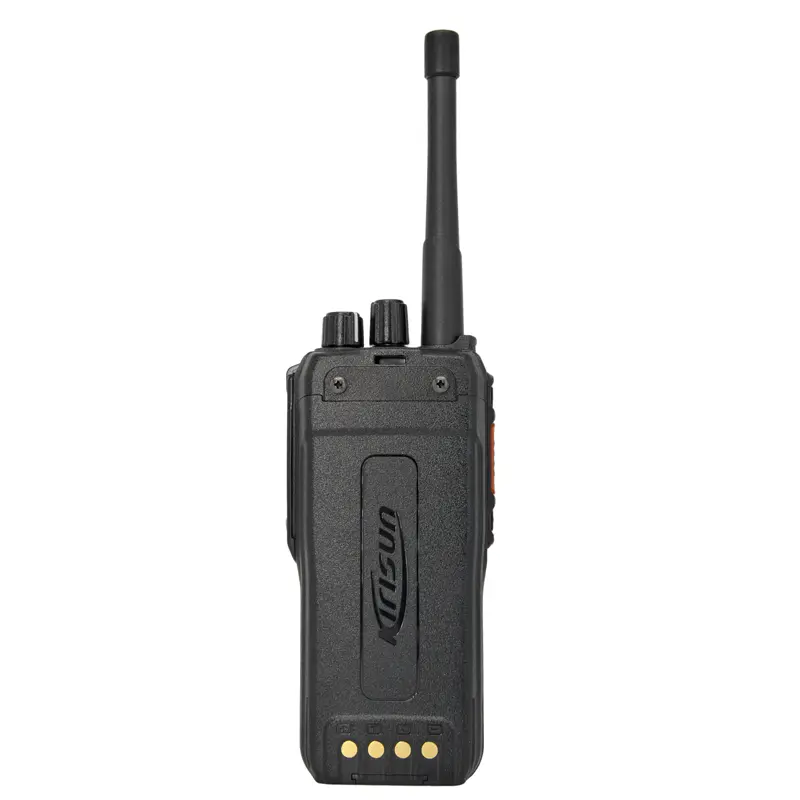

Kirisun DP990 High-end Digital Walkie Talkie

The Kelixun DP990 is a high-end digital walkie talkie developed to meet the needs of government enterprises and high-end customer groups. It meets the US military standards MIL-STD-810C/D/E/F/G and IP68 industrial protection standards, and can be suitable for government public utilities, large and medium-sized enterprises, energy, forestry, railway and other industries.

Frequency Range: 136 - 174MHz (VHF), 400 - 470MHz (UHF)
Transmit Power: UHF 4W, VHF 5W
Channel Capacity: 1024
Channel Spacing: 12.5kHz / 20kHz / 25kHz
Power Supply: 7.4V, powered by a 2000mAh high - capacity lithium - ion battery
Battery Life: More than 15 hours (digital mode, 5 - 5 - 90 duty cycle)
Waterproof and Dust - proof Grade: IP68
Display Screen: 1.8 - inch 65536 - color TFT color semi - transparent display, 5 - line display (7 - line full - screen including upper and lower status bars), up to 40 Chinese characters or 80 digits per screen
Audio Output Power: Built - in 1W high - power speaker
Digital Sensitivity: 0.22μV / - 120dBm (typical)

product details

Product Detail Diagram

Supports four modes: analog conventional, digital conventional, digital trunking, and MPT1327 analog trunking, compatible with existing conventional analog systems, ensuring a smooth transition from analog products to digital products. The trunking function can be supported through authorization. At the same time, it can form a series of digital communication system solutions with Kelixun digital relay stations and car mounted stations, which can expand more functions such as recording and roaming, and meet the communication application needs of different industries with higher cost-effectiveness and richer functions.

Frequency Range	UHF: 400-470MHz VHF: 136-174MHz
Channel Capacity	1024
Zone Capacity	248
Channel Spacing	12.5kHz/20kHz/25kHz
Operating Voltage	7.5V DC±20%
Battery	2000mAh
Battery Life (5-5-90 Duty Cycle, High TX Power)	Analog:13.5 hours@2000mAh Digital: 15.5 hours @2000mAh
Frequency Stability	±0.5 ppm
Antenna Impedance	50Ω
Dimensions(H·W·D) (with standard battery, without antenna)	131.5mmx63.5mmx35.5mm
Weight(with standard battery)	385g(2000mAh)

Function Introduction

Humanized exterior design

about DP990

Using a 1.8 inch color display screen, the displayed information can be clearly displayed even in strong outdoor light.

Reliable and Durable Quality

about DP990

Strictly comply with the US military standard MIL-STD-810 C/D/E/F/G, comply with the national military standard (GJB150A-2009), and IP68 industrial protection standard (the highest dustproof and waterproof level in the industry), and can perform excellent performance in various harsh working environments.

Noise suppression for better speech quality

about DP990

By adopting advanced narrowband speech encoding and decoding technology and digital error correction technology, you can obtain clear voice in noisy environments or at the edge of coverage, ensuring clear and loud sound, and easily maintaining smooth communication.

Supports Bluetooth functionality

about DP990

Built in Bluetooth chip, it can achieve voice and data services, and can be configured with Bluetooth earphones and Bluetooth rings, making it convenient and fast. (Optional)

Support recording function

about DP990

The DP990 performs real-time recording of calls, with a loop recording function of over 250 hours, effectively improving users' safety awareness and execution ability. Recording supports local playback and computer playback, and can be easily downloaded and played back through customized recording management software. (Optional)
