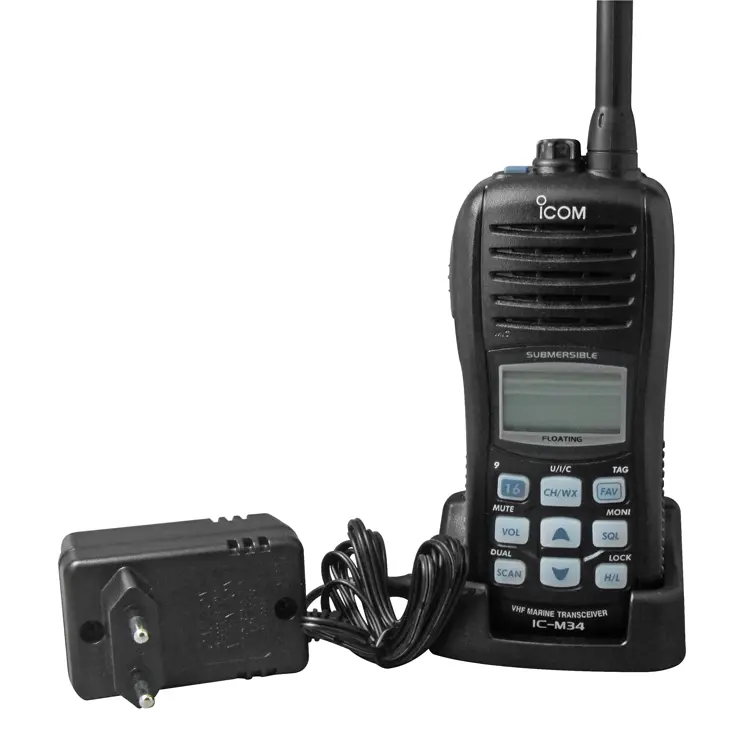

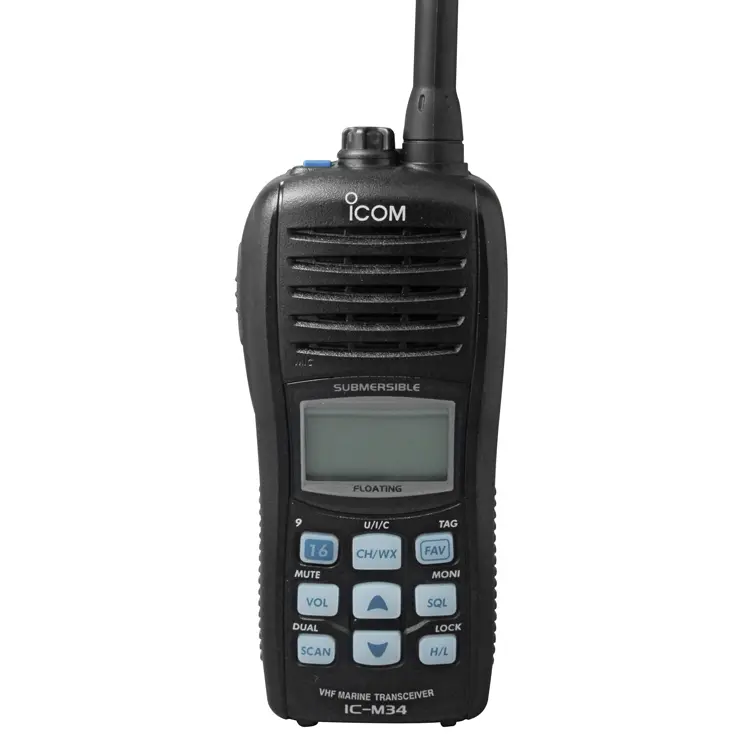

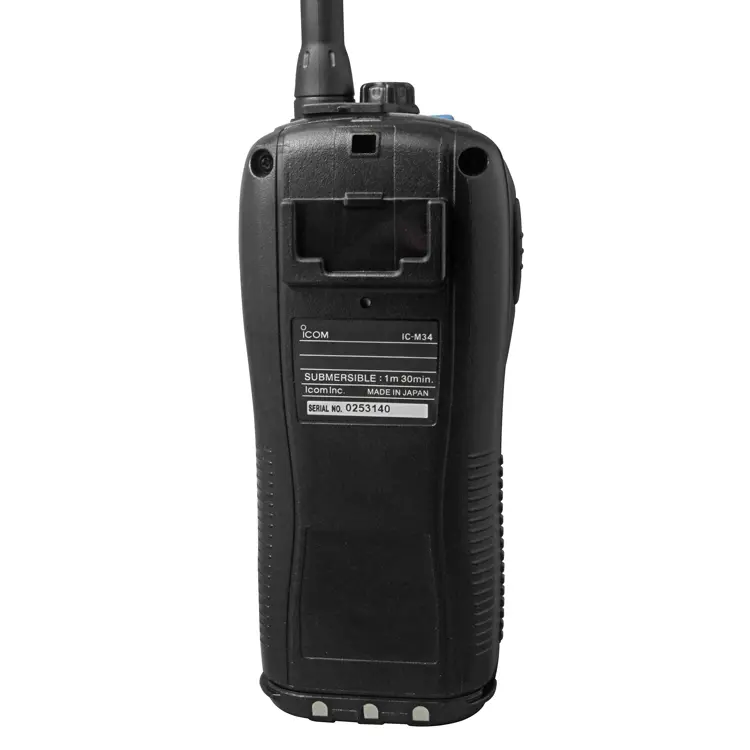

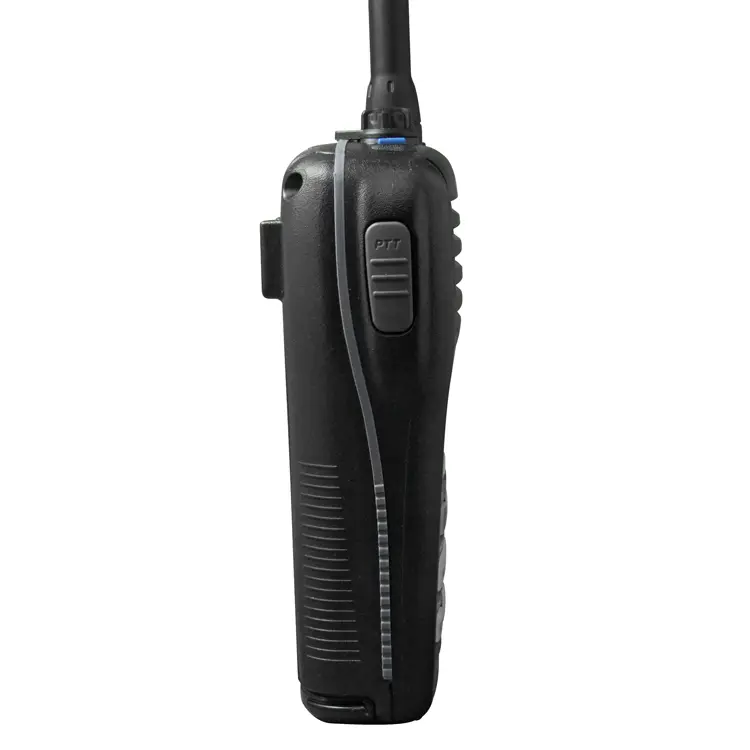

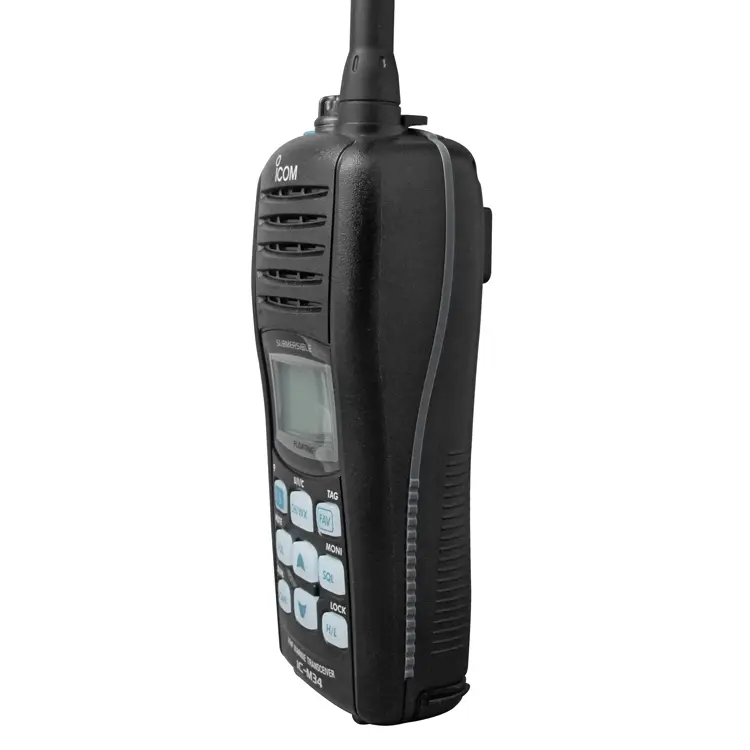

Icom IC-M34 Portable communication devices

ICOM IC-M34 intercom is a communication device with excellent waterproof performance and strong signal parameters. This walkie-talkie uses JIS-7 waterproof technology to perfectly cope with underwater operations. It can be used in recreational activities such as maritime exploration and travel, as well as in water operations, fisheries or public welfare rescue operations.

Frequency Range：Transmit 156.025 – 157.425MHz; Receive 156.050 – 163.275MHz
Channel Spacing：25kHz
Output Power：5W (high) and 1W (low)
Modulation System：Variable reactance frequency modulation
Max. Frequency Deviation：±5kHz
Operating Voltage：Supplied by BP - 251 or BP - 252 lithium - ion battery
Current Drain：Tx high (5W) 1.5A; Tx low (1W) 0.7A; Max. audio 0.2A; Power save 20mA typical
Frequency Stability：±10ppm (-20℃ to +60℃)
Working Temperature Range：-20℃ to +60℃
Audio Output Power：0.35W typical at 10% distortion with an 8Ω load

product details

Product Detail Diagram

General
Frequency Range TX RX	156.025–157.425 MHz 156.050–163.275 MHz
Current drain (approximate) Tx 6 W output Rx Max. audio (Int SP/Ext SP)	1.5 A 200 mA
Dimension(W×H×D)	62×141.5×43 mm
Weight	305g
RF output power	5 W/1 W

Function Introduction

floating design

about IC-M34

One feature that gives the ICOM IC-M34 radio a unique advantage over other brands is that it is the world's first floating radio. Even if it falls into the water, it will float on the surface without sinking into the deep water interior, and saving the connection is effortless.

Simple and easy to use

about IC-M34

ICOM IC-M34 intercom is powerful and easy to use, and can easily achieve one-to-one and one-to-many two-way communication. With ultra-clear sound effects, you can effortlessly hear discussions between colleagues or partners at work in extremely noisy environments.

Waterproof performance

about IC-M34

Sun, surf and breeze are all hallmarks of colorful summer fun, but all elements of it can pose a threat to electrical equipment. However, the ICOM IC-M34 walkie-talkie adopts JIS-7 waterproof specifications and a floating design, which not only resists various natural forces, but also maintains a long and stable working time, so it can even be used in harsh weather and water environments.
