Ic-A120e
Ic-A120e
Ic-A120e

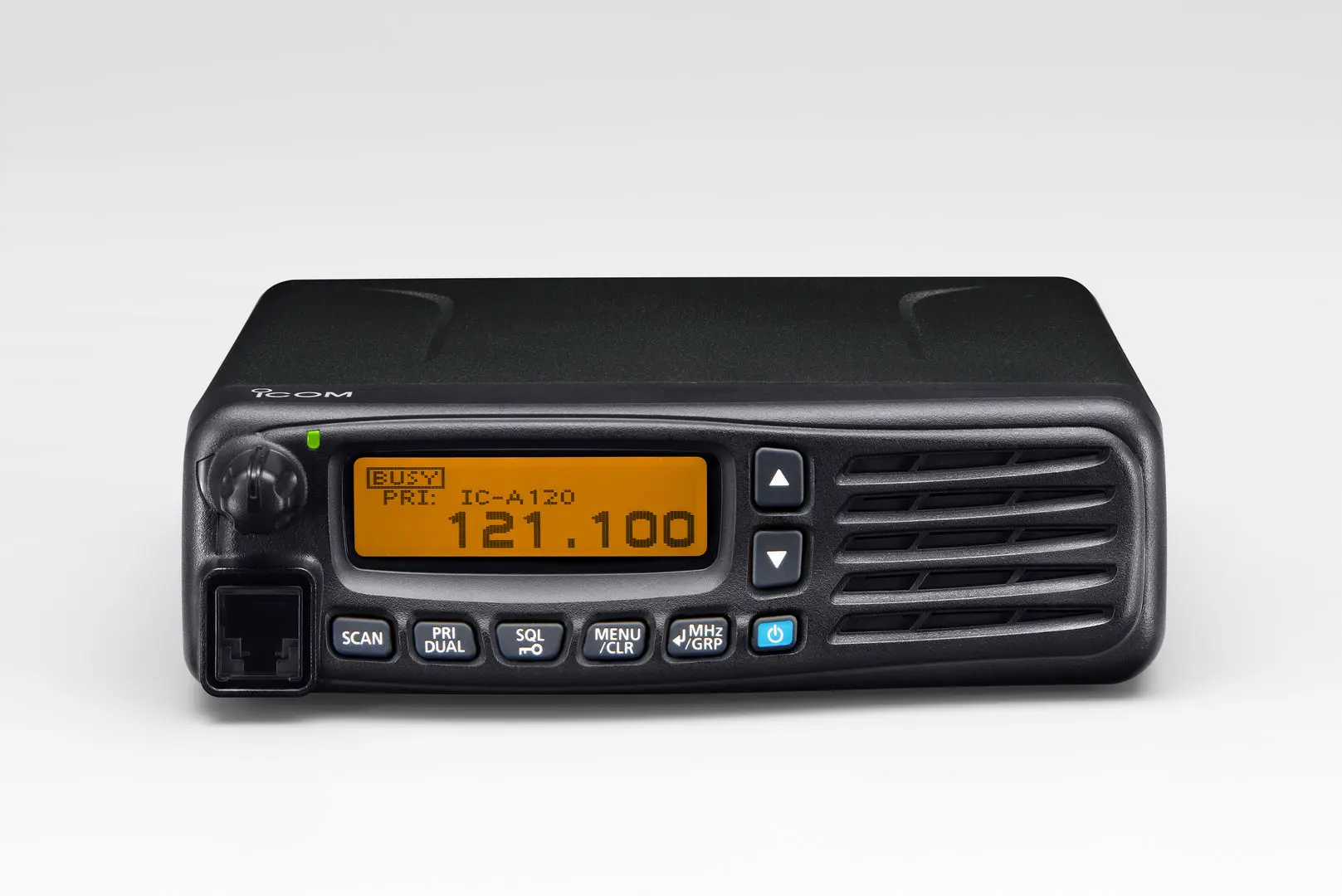

Icom Ic-A120e

  1. Frequency Range：Transmit and receive from 118.000 - 136.992 MHz.
  2. Power Output：Maximum 36W (P.E.P.) (carrier: 9W).
  3. Channel Capacity：200 programmable memory channels.
  4. Channel Spacing：25kHz/8.33kHz.
  5. Power Supply Voltage：13.75V or 27.5V DC (automatic selection).
  6. Current Consumption (Receive)：4.0A Max. (at maximum volume), 500mA Max. (standby).
  7. Current Consumption (Transmit)：5.0A Max. at maximum power.
  8. Audio Output Power：10W typ. (8Ω) for external speaker, 100mW typ. (500Ω) for head - set.
  9. Sensitivity：1μV (6dB S/N) for normal operation.
  10. IP Rating：IP54 for dust - protection and water resistance.
    Contact us Download
    product details
    product description

    Function Introduction

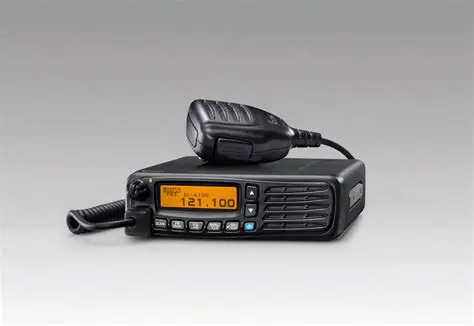

    OIP
    01

    Aviation-Specific Frequency Coverage

    Operating across 118.000–136.992 MHz, the IC-A120e is tailored for aviation communication, ensuring compliance with global airband standards. Its focus on this critical range, paired with 25kHz/8.33kHz channel spacing, guarantees interference-free communication— a feature as vital as the clarity demanded by top-tier 2 Way Radios in emergency services.
    R
    01

    Powerful Transmission

    With a maximum 36W (P.E.P.) output, it delivers strong signals even over long distances, crucial for maintaining contact between aircraft and control towers. This power, comparable to high-performance 2 Way Radios used in large-scale operations, ensures reliability in low-signal environments.

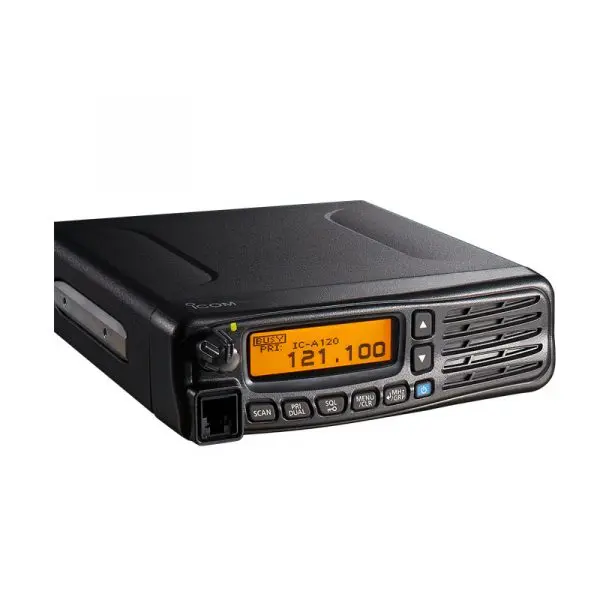

    flugfunk_handfunkgeraete_IIC-A120E_3-600x600
    01

    Efficient Channel Management

    Boasting 200 programmable memory channels, the IC-A120e simplifies quick access to frequently used frequencies. This organization mirrors the practicality of Radio Walkie Talkie systems designed for fast-paced teams, reducing operational delays during critical moments.

    Product Parameters

    Frequency Range

    Transmit and receive from 118.000 - 136.992 MHz.

    Power Output

    Maximum 36W (P.E.P.) (carrier: 9W).

    Channel Capacity

    200 programmable memory channels.

    Channel Spacing

    25kHz/8.33kHz.

    Power Supply Voltage

    13.75V or 27.5V DC

    IP Rating

    IP54 for dust - protection and water resistance.
