IC-718
IC-718
IC-718

ICOM IC-718

  1. Frequency Range：
    • Receive: 0.030 - 29.999999 MHz
    • Transmit: Bands vary by version, commonly including 1.8 - 1.999999 MHz×2, 3.5 - 3.999999 MHz×2, 7 - 7.3 MHz, 10.1 - 10.15 MHz, 14 - 14.35 MHz, 18.068 - 18.168 MHz, 21 - 21.45 MHz, 24.89 - 24.99 MHz, 28 - 29.7 MHz
  2. Output Power：2 - 100 W (for SSB, CW, RTTY modes); 2 - 40 W (for AM mode)
  3. Modes：Supports SSB (Single - Sideband), CW (Continuous Wave), RTTY (Radio Teletype), AM (Amplitude Modulation)
  4. Sensitivity：Typically, it has high sensitivity in the receive band to pick up weak signals effectively, though exact values can vary depending on the mode and frequency range. For example, in SSB mode, it can detect signals as low as around 0.15 μV for a 10 dB SINAD (Signal - to - Noise plus Distortion) ratio in the HF bands.
  5. IF (Intermediate Frequency) Filtering：Equipped with multiple IF filters to reduce interference. Common filter bandwidths include 2.7 kHz for SSB, 0.5 kHz for CW, etc., which can be selected according to the operating mode and the nature of the signals to be received.
  6. Display：Features an easy - to - read LCD (Liquid Crystal Display) screen that shows frequency, mode, signal strength (S - meter), and other relevant operating parameters clearly.
  7. Power Supply Requirements：Operates on 13.8 V DC power supply. The radio is designed to draw a certain amount of current depending on the transmit power level. For example, at full 100 W transmit power in SSB mode, it may draw around 10 - 12 A of current.
  8. Size：Dimensions are approximately (Width × Height × Depth) 298 x 112 x 320 mm (excluding knobs and protrusions), which makes it a relatively compact HF transceiver suitable for desktop use in home or mobile installations with proper mounting.
  9. Weight：Weighs around 4.8 kg, which is manageable for installation in mobile setups such as in a vehicle or for those who need to transport the radio for field operations.
  10. Antenna Interface：Has a standard 50 - ohm antenna connector (usually a SO - 239 type), allowing for easy connection to a wide variety of HF antennas, including dipole, vertical, and beam antennas, to optimize signal transmission and reception.
    Contact us Download
    product details
    product description

    Function Introduction

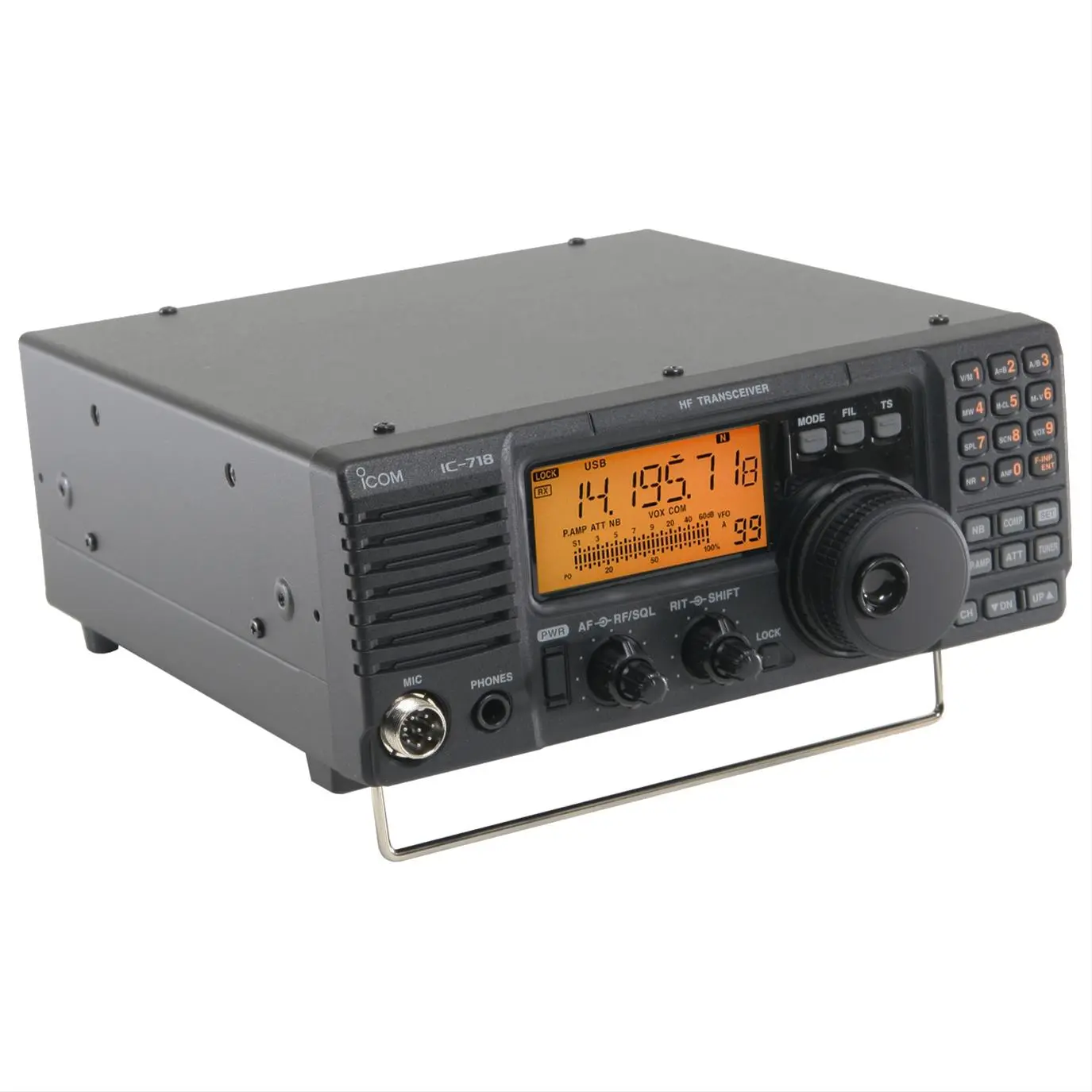

    ico-ic-718_xl
    01

    Extensive Frequency Coverage

    The IC-718 covers 0.03–29.999999 MHz for reception and multiple HF bands for transmission (1.8–29.7 MHz), enabling global communication. This range surpasses the localized focus of many Motorola 2 Way Radios, making it ideal for long-distance scenarios where Motorola Radio Walkie Talkie devices may not reach.

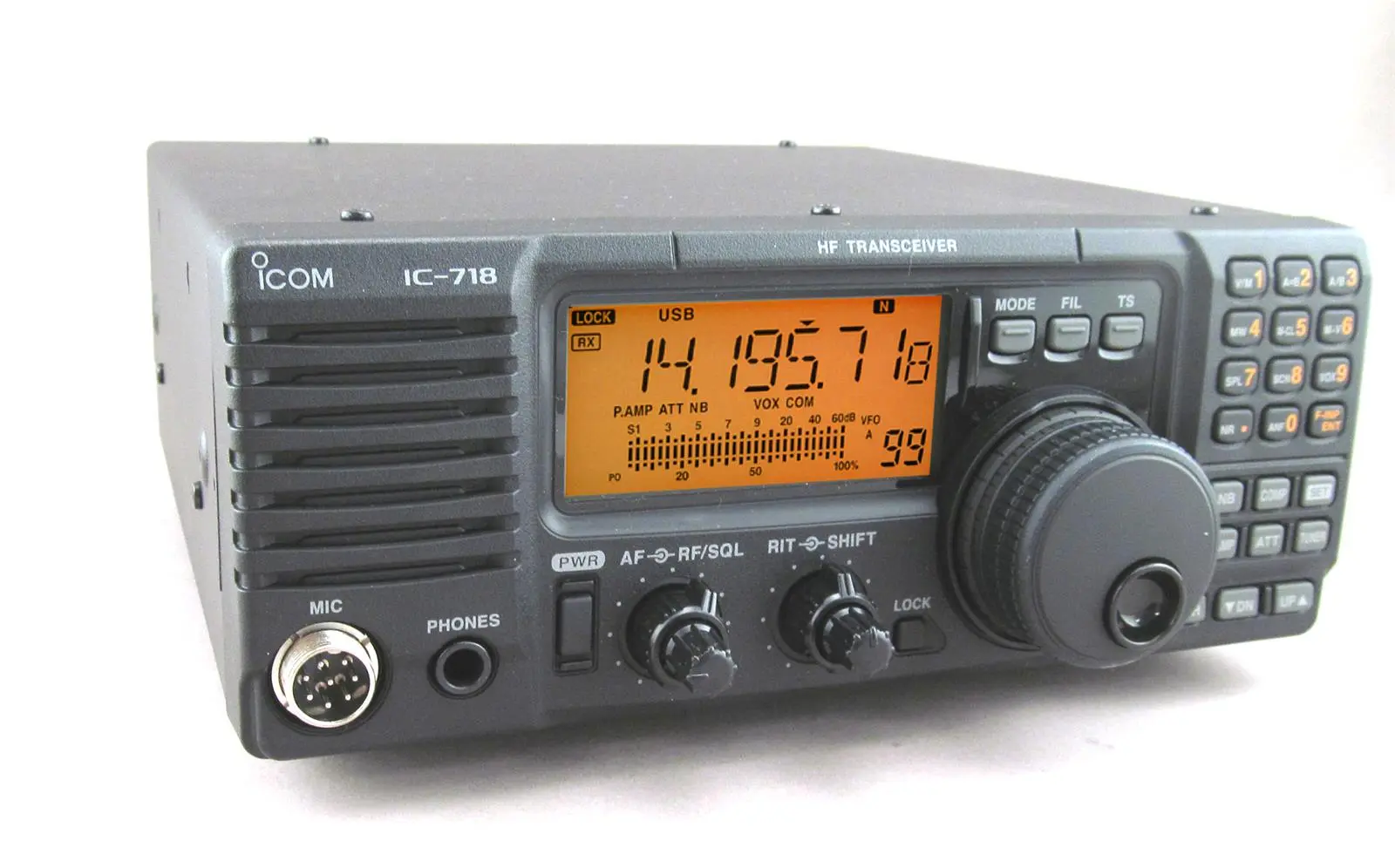

    ico-ic-718_at_xl
    01

    Flexible Power Output

    With 2–100W for SSB/CW/RTTY and 2–40W for AM, it adapts to regulatory limits and operational needs. This versatility ensures strong signal transmission across varying distances, a trait valued in professional radios, much like the adjustable power in premium Motorola 2 Way Radios.

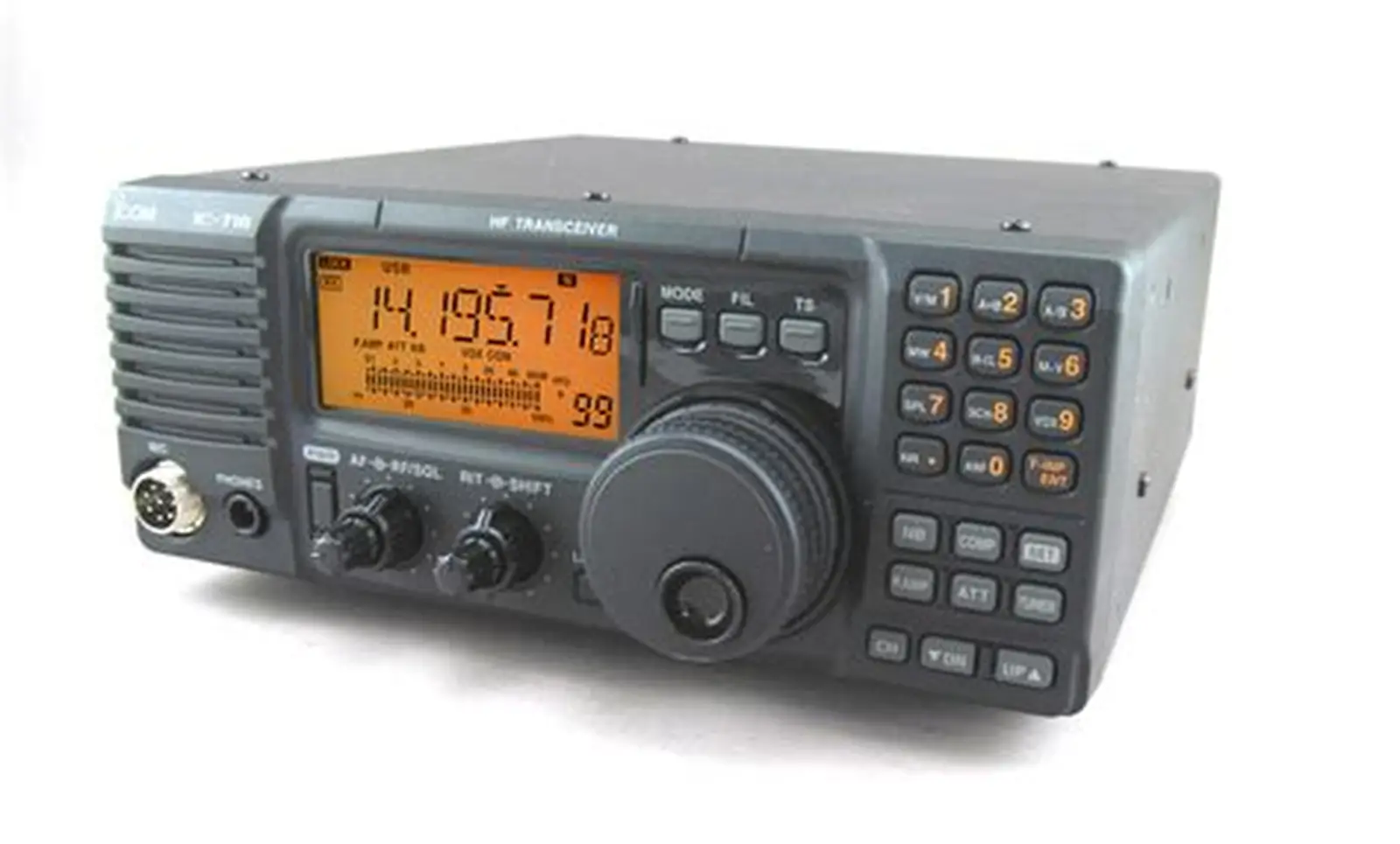

    OIP
    01

    Multi-Mode Operation

    Supporting SSB, CW, RTTY, and AM, the IC-718 caters to diverse communication styles, from voice to data transmission. This adaptability mirrors the functional range of Motorola Radio Walkie Talkie models designed for multi-purpose use, enhancing its utility in dynamic settings.

    Product Parameters

    Output Power

    2 - 100 W (for SSB, CW, RTTY modes); 2 - 40 W (for AM mode)

    Weight

    4.8 kg

    Size

    298 x 112 x 320 mm
