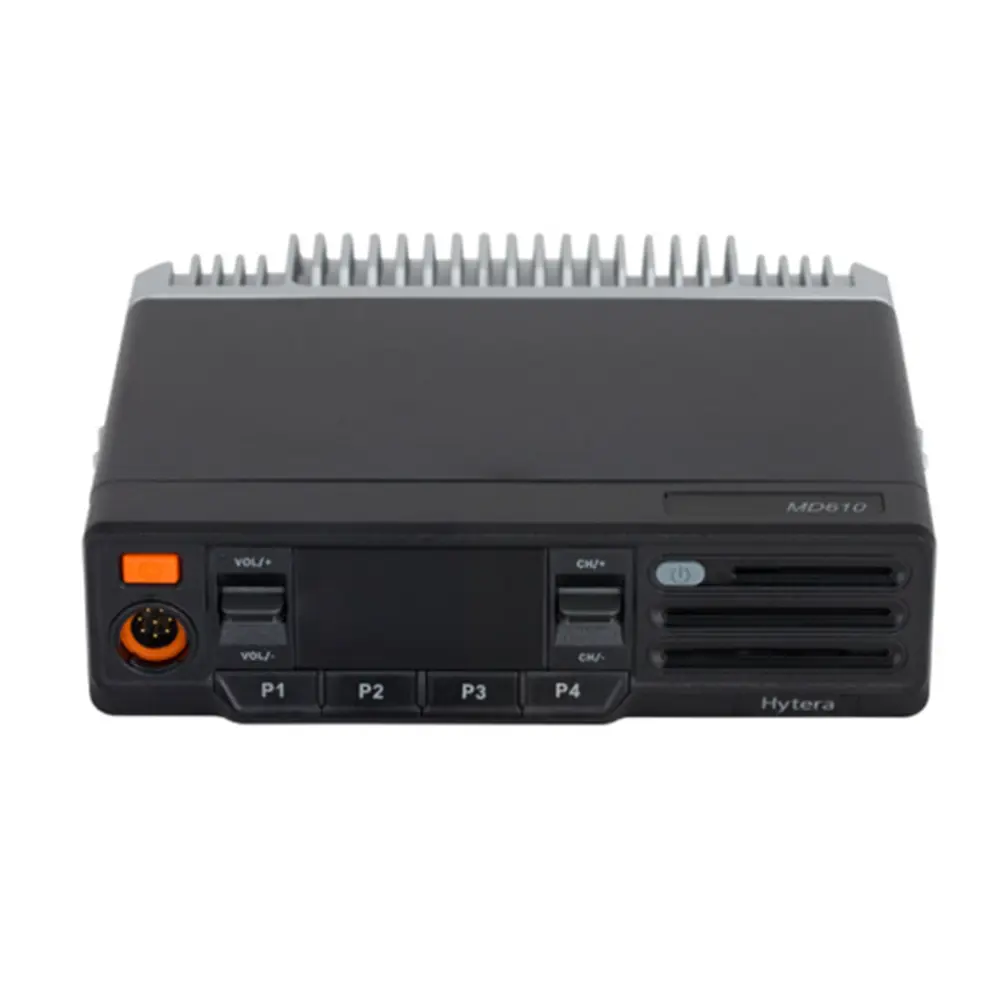

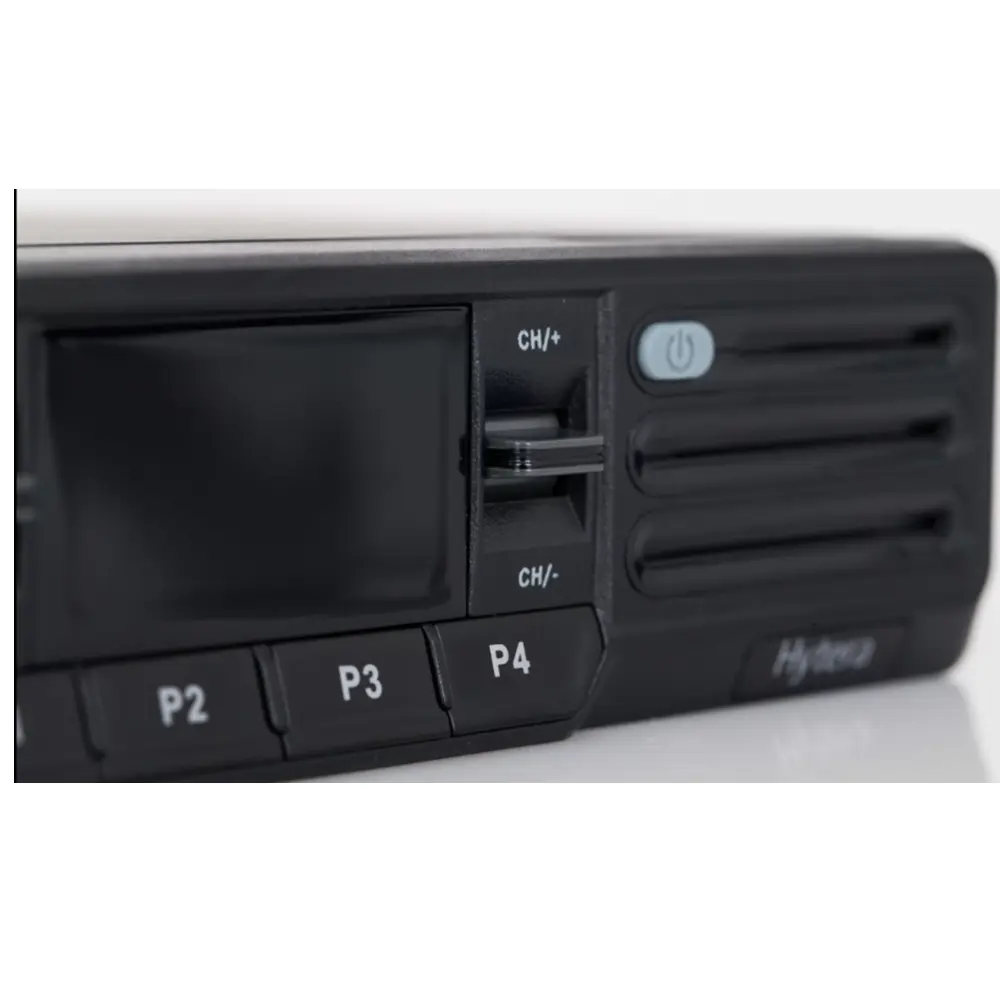

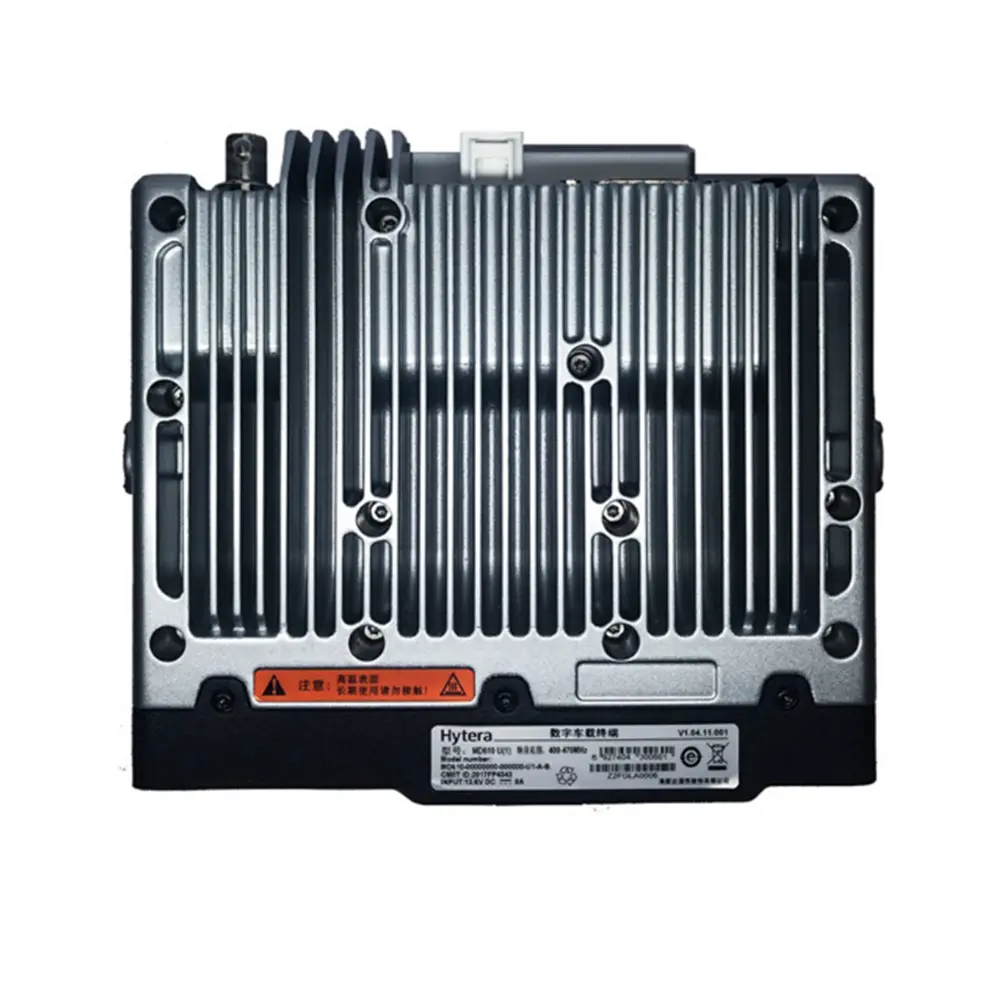

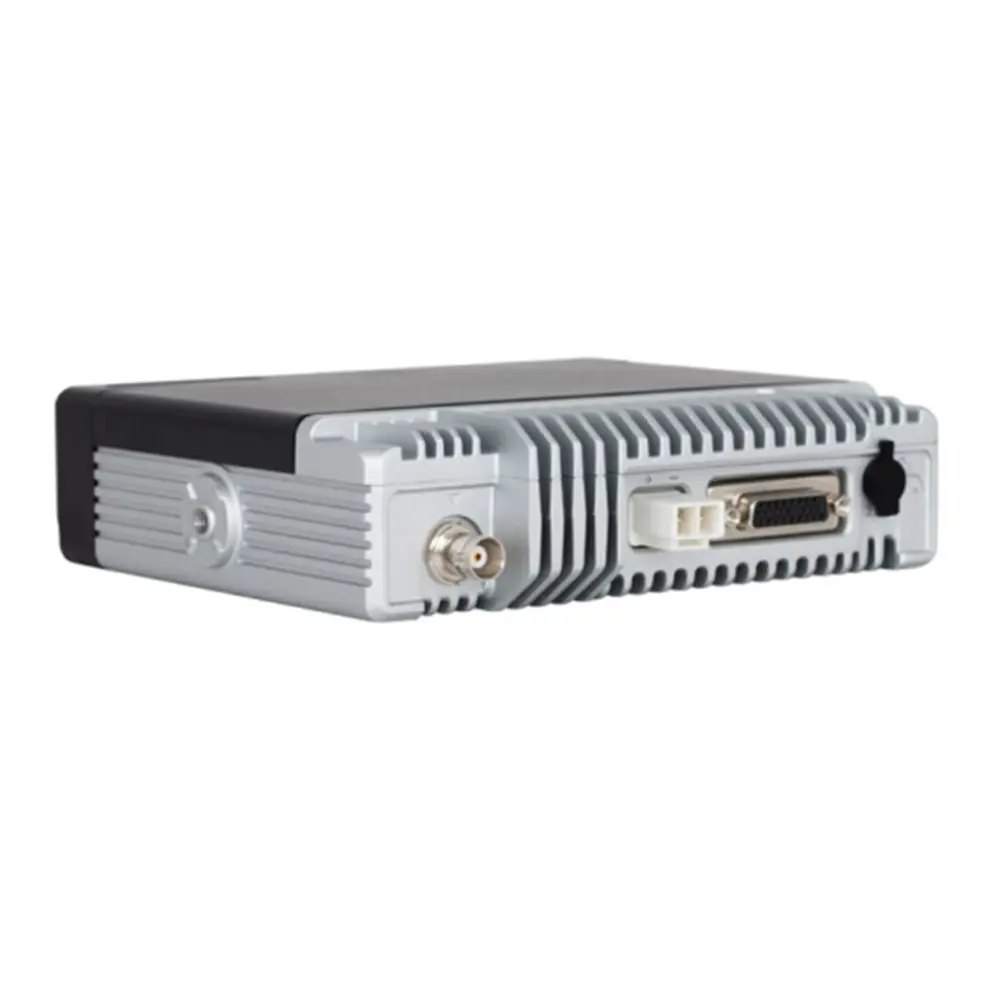

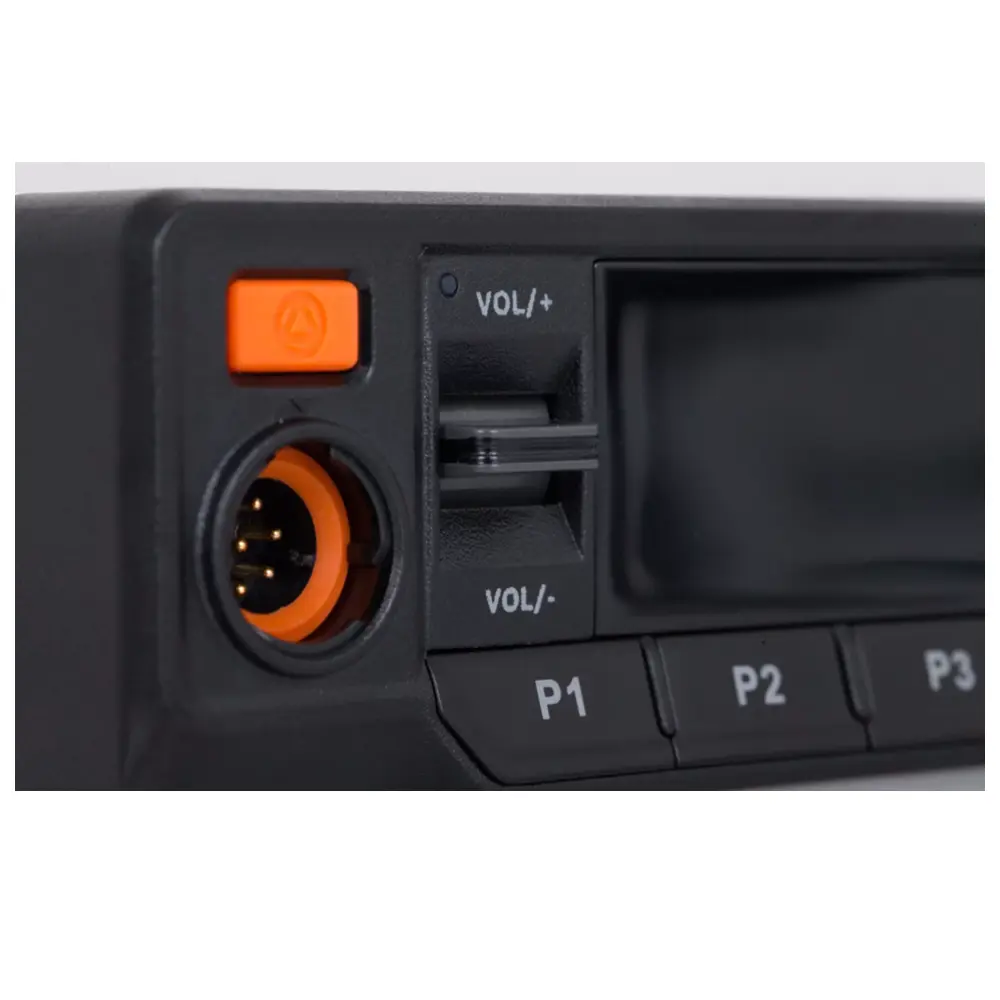

Hytera Business DMR Mobile Two Way Radio MD610
product detail
1.Features
This radio is for users engaged in commerce and industry, such as in taxis, freight cars, and school buses. It is thin and stylish. It is made of rugged aluminum alloy. Meanwhile, a palm microphone is supplied for easy operation. In addition, it is compatible with both analog and digital modes.
1). A&D Auto Detect
Compatible with analog conventional and digital conventional modes Allow MD61X to simultaneously monitor analog and digital modes and automatically respond in each mode. It is an easy way for migration to digital from analog.
2). Long-range Communication
With 50W output power and higher RX sensitivity, the MD61X dramatically extends the communication coverage.
3). Pseudo trunk
Several talk groups share the same frequency , and each one of them can dynamically chose to use one of the slots to talk . This is a two-slot-trunked mode While time-slot 1 is busy , MD61X will use time-slot 2 to transmit.
4). GPS and Bluetooth (Option)
With an external GPS module and GPS antenna , MD61X can upload its realtime position to AVL applications.Built-in Bluetooth supports MD61X to have wireless audio accessories and extemal PTT device connected.
2. Specifications
| General | |
| Frequency Range | VHF:136-174MHz UHF:400-470MHz |
| Channel Capacity | 48 |
| Zone Capacity | 3 |
| Operating Voltage | 13.6V±15% |
| Current Drain (Standby) | around 0.3A |
| Current Drain (Receive) | < 1 A |
| Current Drain (Transmit) | 1W<3A 25W<8A 45W<12A 5W<5A |
| Dimensions (H×W×D) mm | 164*43*150mm |
| Weight | 1100g |
| Display | Digital display |
| Receiver | |
| Sensitivity (Analog) | 0.22μV (12dB SIN AD); 0.4μV (20dB SIN AD); 0.3μV (12dB SIN AD) |
| Sensitivity (Digital) | 0.28μV/BER 5% |
| Rated Audio Power Output (External) | outer（@8 ohm load） 8W |
| Max. Audio Power Output (Internal) | Inner（@16 ohm olad）6W |
| Max. Audio Power Output (External) | Outer（@8 ohm load）12W |
| Transmitter | |
| RF Power Output | low power 1-25W（UHF&VHF）; high power 5-45W(UHF)5-50W(VHF) |
| Digital Vocoder Type | AMBE+2™/SELP |
| Environmental | |
| Operating Temperature | -30℃~+60℃ |
| Dust & Water Protection | IP54 |
| Humidity | MIL-STD-810 G standard |
| Vibration,Drop&Shock | MIL-STD-810 G standard |
3. Shipment
Shipment usually arranged by the below methods: DHL, UPS, FedEX, TNT, EMS and so on. Depends on the destination of which country and area. DHL and UPS will be the first choice, because of the fast efficiency. If need any other ways, just kindly inform us, please. We will arrange for you.
4. Payment Terms
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
