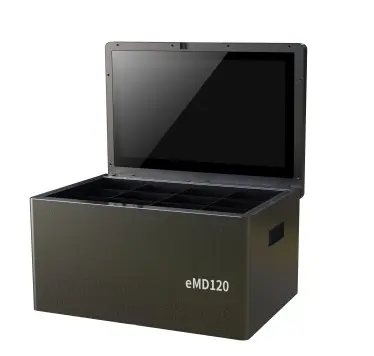

The eMD120/eMD240 collection station is a companion to the body worn camera. It allows various operations to be performed on the body worn camera, including data collection, data clearing, charging, and time alignment as well as local audio/video storage and upload to the management center. Structured as a horizontal box, the eMD120 provides 12 ports/eMD240 provides 24ports to deliver strong concurrent access capabilities and 4 disks/8disks (eMD240) to provide a large storage capacity. With a large-sized touch screen, the eMD120/eMD240 allows users to perform operations with ease. The eMD120/eMD240 supports 4K and H.256 video playback. It features high environment adaptability and system stability and can run 24/7 without service interruption. It provides excellent device management, user management, and data management, and is applicable to small- and medium-sized units (about 12 persons/20persons for eMD240).
-
Power Supply Voltage：24 V AC ... 240 V AC -15% ... +10% or 24 V DC ... 240 V DC -20% ... +25%
-
Input Current Range：0 mA ... 100 mA (terminal: I1 and GND); 0 A ... 1 A (terminal: I2 and GND); 0 A ... 10 A (terminal: I3 and GND)
-
Frequency Range：48 Hz ... 400 Hz
-
Response Delay Setting Range：0.1 s ... 10 s
-
Channel Number：May support multiple - channel input, referring to similar products, it may have 8 or more channels, such as 8 (+/- 10V range) input channels4.
-
A/D Resolution：16 - bit A/D converter, which can provide higher - precision data conversion.
-
Communication Interface：May include LAN, WLAN, USB, etc., for data transmission and device connection.
-
Operating Temperature：-25 °C ... 55 °C
-
Protection Level：IP40 (housing), IP20 (terminal)
-
Mounting Method：It may support DIN - rail mounting or screw - mounting, which is convenient for installation in the control cabinet, referring to the installation method of similar products of Phoenix Contact.
