APX™ 8000XE ALL-BAND P25 PORTABLE RADIO
Working together with firefighters aroundthe world, we designedthe APX™ Extreme Series, a safe, and easy and efficientto use portfolio of ergonomically advanced, ultra-rugged radios andaccessories.W ith over eighty years of experience in ergonomics, design andtechnology for public safety, the APX XE Series is the culmination ofcross-disciplines and user input.
Firefighters said theywanted equivalent extreme features as the APX Extreme Series including alarger display, exaggerated control knobs, and the capability to communicatewith surrounding municipalities within an all-band radio solution.T he APX8000XE brings together not only these requirements, but also the integration ofWiFi® for programming flexibility.

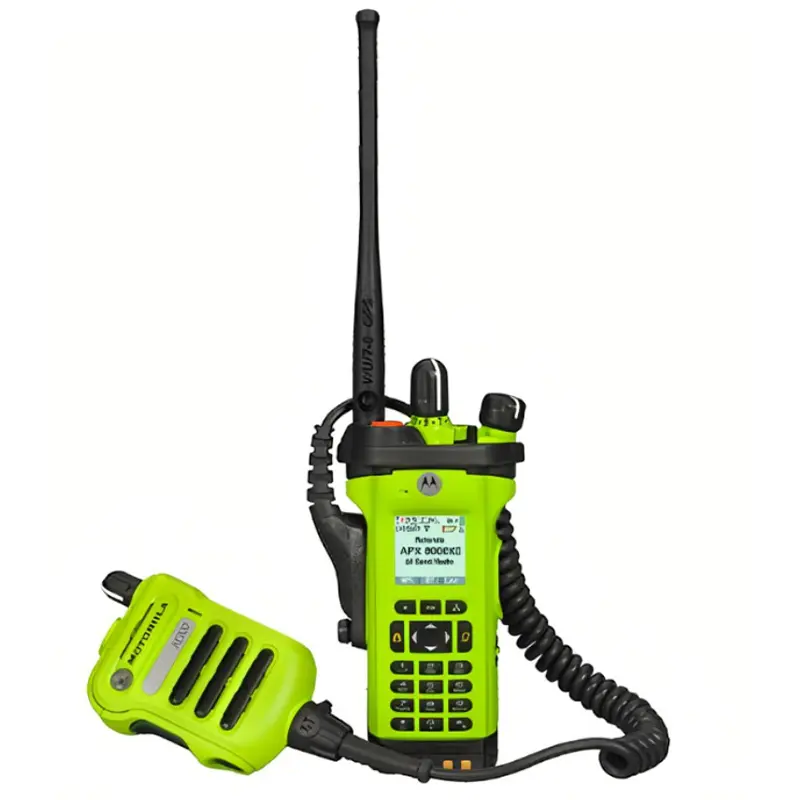

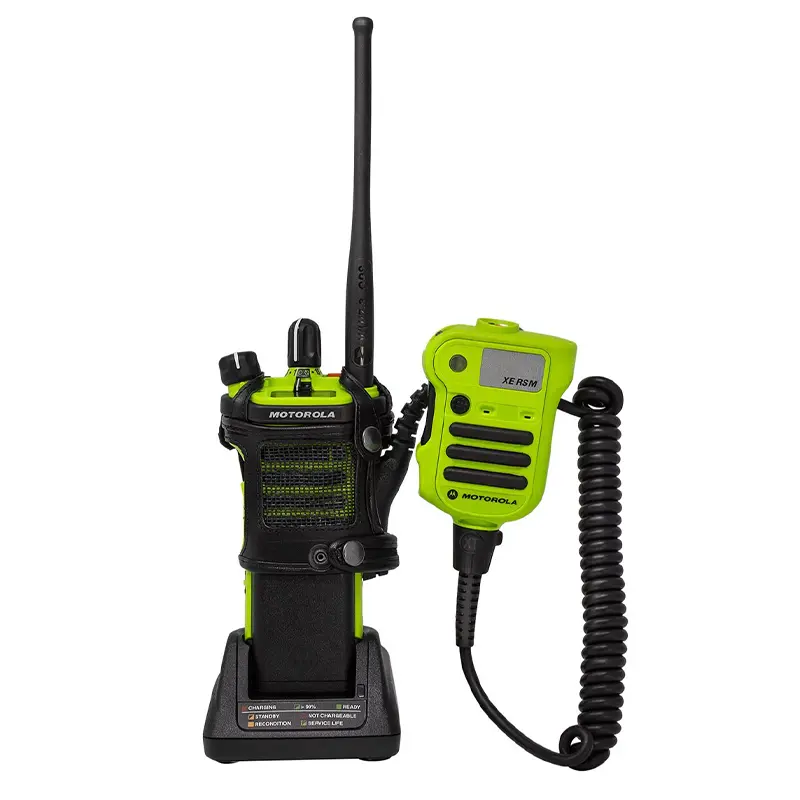

The APX 8000XE is redefining missioncritical communications by delivering an ultra-durable radio that combinesunlimited interoperability, loud audio, and secure WiFi connectivity. With adedicated channel knob and ability to withstand 500 degrees heat exposure, theAPX XE500 Remote Speaker Microphone is the perfect companion to the APX8000XE.W hen combined, the APX 8000XE All-Band Portable Radio and XE500 RemoteSpeaker Microphone create the ultimate mission critical solution designed forsafety personnel in extreme environments.
1. Features
KEY FEATURES
• Unlimited interoperability with one device
• Secure WiFi for seamless software updates
• Extra-large buttons for glove use
• IP68 submersion (2 meters, 4 hours)
• ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive ElectricalEquipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division2, Groups F, G; Class III, Division 2
• Integrated GPS/GLONASS for outdoor location tracking
• Equippedwith FIPS - certified encryption hardware
• RFID volume knob for asset tracking (optional)
• Bluetooth-enabled APX radios capable of transmitting SCBA voice and data
RF BANDS
• 700/800 MHz, VHF, UHF Range 1 & 2
OPERATION MODES
• 9600 Baud Digital APCO P25 Phase 1 FDMA and Phase 2 TDMA Trunking
• 3600 Baud SmartNet®, SmartZone®, Omnilink Trunking
• Digital APCO 25, Conventional, Analog MDC 1200, Quick Call II SystemConfigurations
• Narrow and wide bandwidth digital receiver (6.25 kHzequivalent/25/20/12.5 KHz)
STANDARD FEATURES
• Mission Critical Wireless Bluetooth*
• ASTRO 25 Integrated Voice & Data
• Integrated GPS/GLONASS for outdoor location tracking
• Software Key
• Text-Messaging
• Voice Announcements
• ISSI 8000 Roaming
• Radio Profiles, Dynamic Zone
• Intelligent Lighting
• Single-key ADP Encryption
• IP68 submersion (2 meters, 4 hours)
• IMPRES Battery
• ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive ElectricalEquipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division2, Groups F, G; Class III, Division
ADAPTIVE AUDIO ENGINE
• 3 Watt Speaker with Adaptive Equalization
• Adaptive Dual-sided Operation
• Adaptive Noise Suppression Intensity
• Adaptive Gain Control
• Adaptive Windporting PROGRAMMING
• Utilizes Windows 7 & 8 CustomerProgramming Software (CPS) with Radio Management OPTIONAL FEATURES
• WiFi 802.11 b/g/n
• RFID Volume Knob
• Multikey for 128 keys and multi-algorithm
• Programming Over Project 25 (OTAP)
• Over the Air Rekey (OTAR)
• Digital Tone Signaling
• P25 Authentication
• Man Down Sensor
2. Specification
GENERAL SPECIFICATIONS | |
Channel Capacity |
3000(model 3.5) |
Frequency |
764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz |
FLASHport Memory |
2 GB |
Maximum Frequency Separation |
Full Bandsplit |
Audio Response1 |
+1, -3 dB |
Rated RF Output Power Adj1 |
700 MHz: 1-2.5 Watts ;800 MHz: 1-3 Watts ; VHF:1-6Watts; UHF:1-5Watts |
Dimensions (HxWxD) |
Li-Ion IMPRES UL2054 DIV 2 Rugged 3400 mAh IP68** 3.4” x 2.3” x 1.7” |
Weight |
6.5 oz |
Display (Model 3.5) |
Top display plus: Full bitmap color LCD display 4 lines of text x 14 characters 2 lines of icons 1 menu line x 3 menus White backlight |
Keypad |
Backlit keypad 3 soft keys 4 direction navigation key 4x3 keypad Home and Data buttons |
RECEIVER | |
Frequency Range/Bandsplits |
764-776 MHz; 851-870 MHz; 136-174 MHz; 380-520 MHz |
Channel Spacing |
25/20/12.5 kHz |
Maximum Frequency Separation |
Full Bandsplit |
Audio Output Power at Rated/Max |
3 Watt/5 Watt |
Selectivity (25 kHz / 12.5 kHz)1, 5 |
79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB |
Intermodulation Rejection1 |
81 dB ;80 dB; 82 dB; 80 dB |
Audio Distortion at Rated |
1.2% ;1.3%; 1.3%; 1.2% |
Spurious Rejection1 |
98 dB ;98 dB; 92 dB; 98 dB |
ENCRYPTION | |
Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm |
ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm |
Encryption Algorithm Capacity |
8 |
Encryption Keys per Radio |
Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID) |
GPS/GNSS SPECIFICATIONS |
Constellations GPS & GLONASS |
Water and Dust Intrusion |
IP68 (2 meters, 4 hours) |
TRANSMITTER | |
Frequency |
764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz |
Channel Spacing |
25/20/12.5 kHz |
|
Power Output : 700 MHz: 1-2.5 Watts 800 MHz: 1-3 Watts ; VHF: 1-6 Watts ,UHF :1-5Watts 1-6 Watts 1-5 Watts 1-6 Watts 1-5 Watts 1-5 Watts | |
